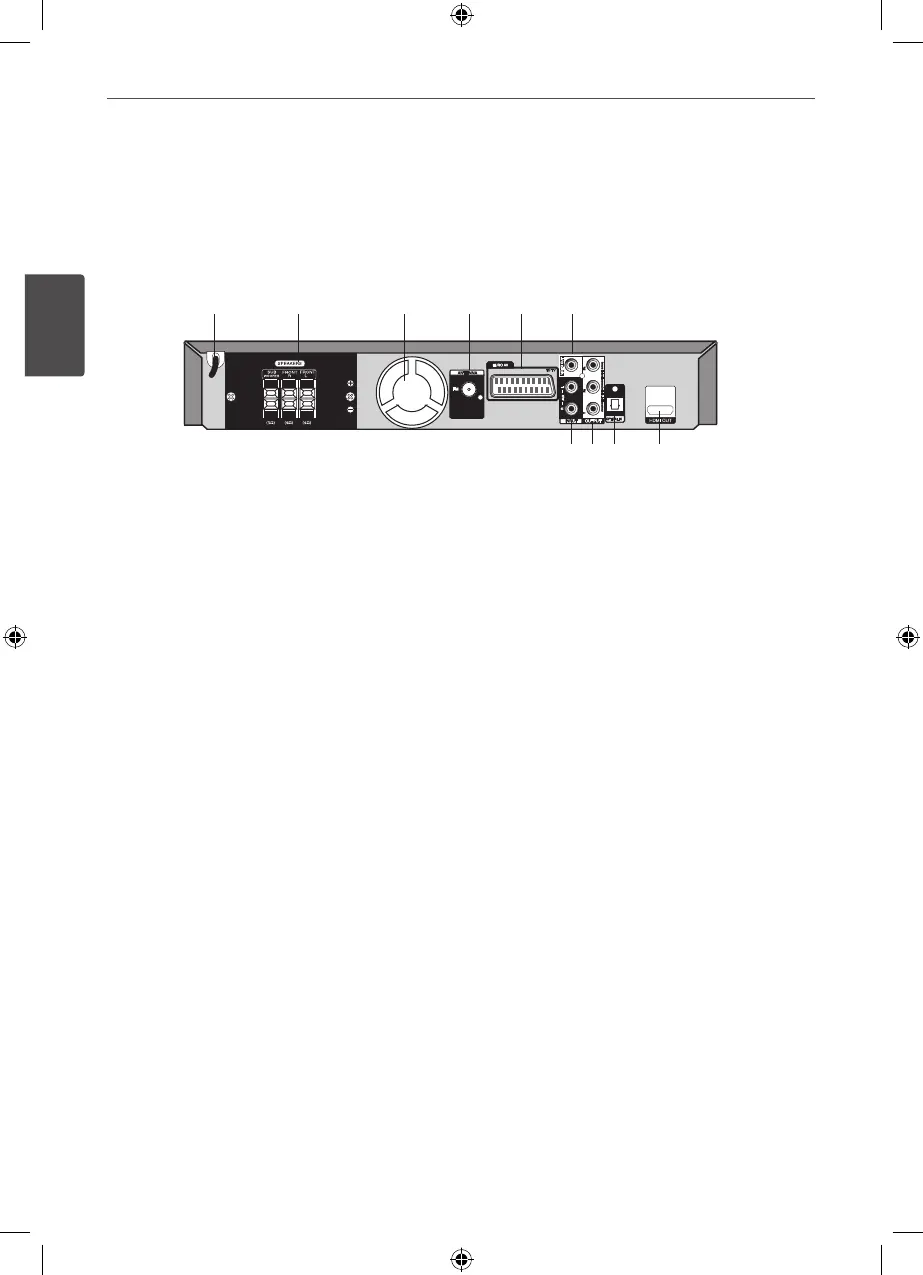

Rear panel
a
Power cord
b
Speakers connectors
Connect the speaker cables.
c
Cooling Fan
d
Antenna Connector
FM- Connects the FM wired antenna
e
SCART connetcor
f
VIDEO OUT
Connects to a TV with video inputs.
g
HDMI OUT (type A)
Connects to TV with HDMI inputs.
(Interface for digital audio and video)
h
OPTICAL IN
Connects to optical audio equipment.
i
COMPONENT VIDEO (Y PB PR)OUTPUT
(PROGRESSIVE SCAN)
Connects to a TV with Y PB PR inputs.
j
AUX (L/R) INPUT
Connects to an external source with 2
channel audio outputs.
a b c d e f
jih g
