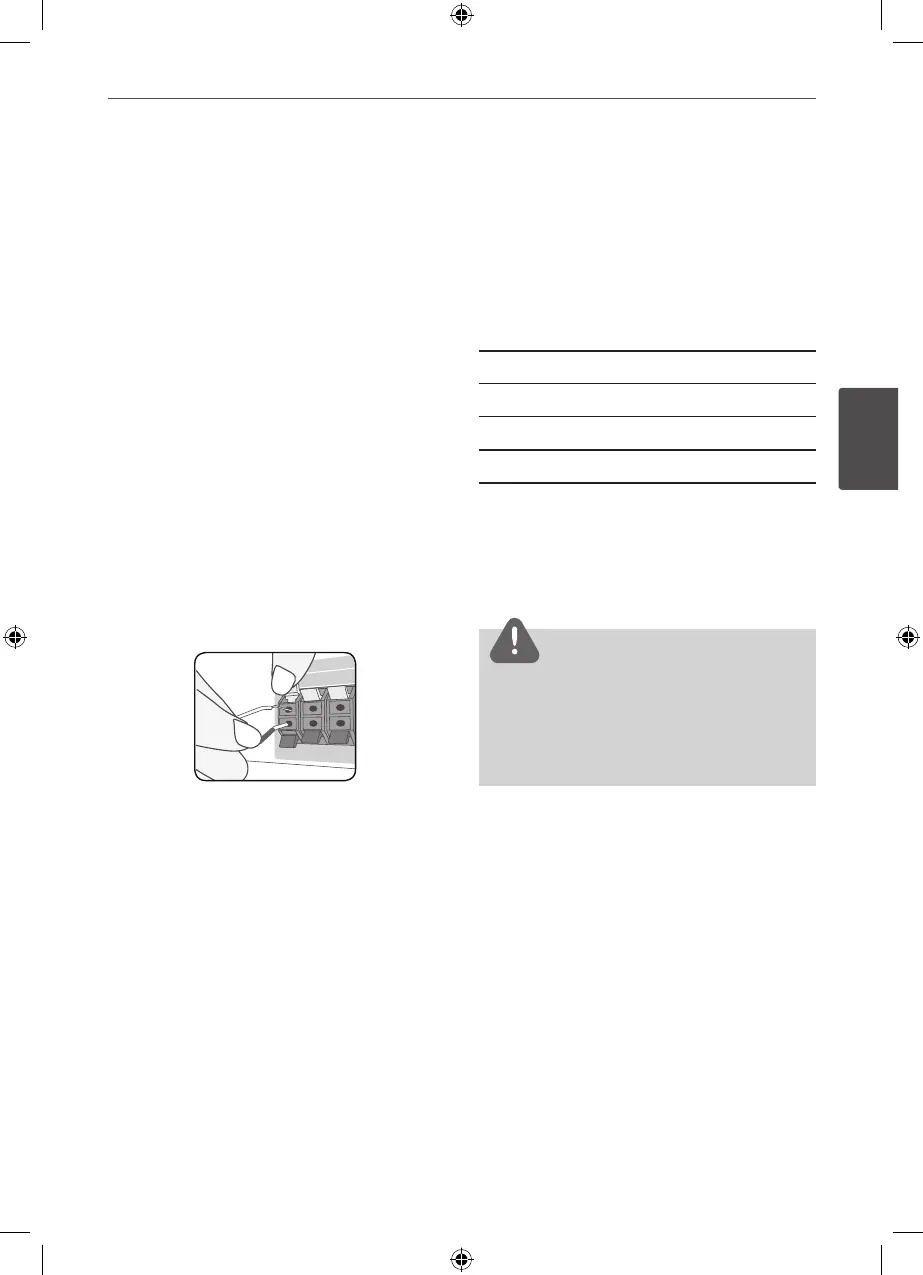

Installation
Attaching the
speakers to the unit
1. Connect the wires to the unit.
Match each wire’s colored band to the
same colored connection terminal on the
rear of the unit. To connect the cable to the
unit, press each plastic nger pad to open
the connection terminal. Insert the wire and
release the nger pad.
Connect the black end of each wire to the
terminals marked -(minus) and the other
end to the terminals marked + (plus).
2. Connect the wires to the speakers.
Connect the other end of each wire to
the correct speaker according to the color
coding:
Color Speaker Position
Orange Sub woofer Any front position
Red Front Front right
White Front Front left
To connect the cable to the speakers, press
each plastic nger pad to open the connection
terminals on the base of each speaker. Insert
the wire and release the nger pad.
CAUTION
Be careful to make sure children not to put their
hands or any objects into the *speaker duct.
*Speaker duct: A hall for plentiful bass sound on
speaker cabinet (enclosure).
