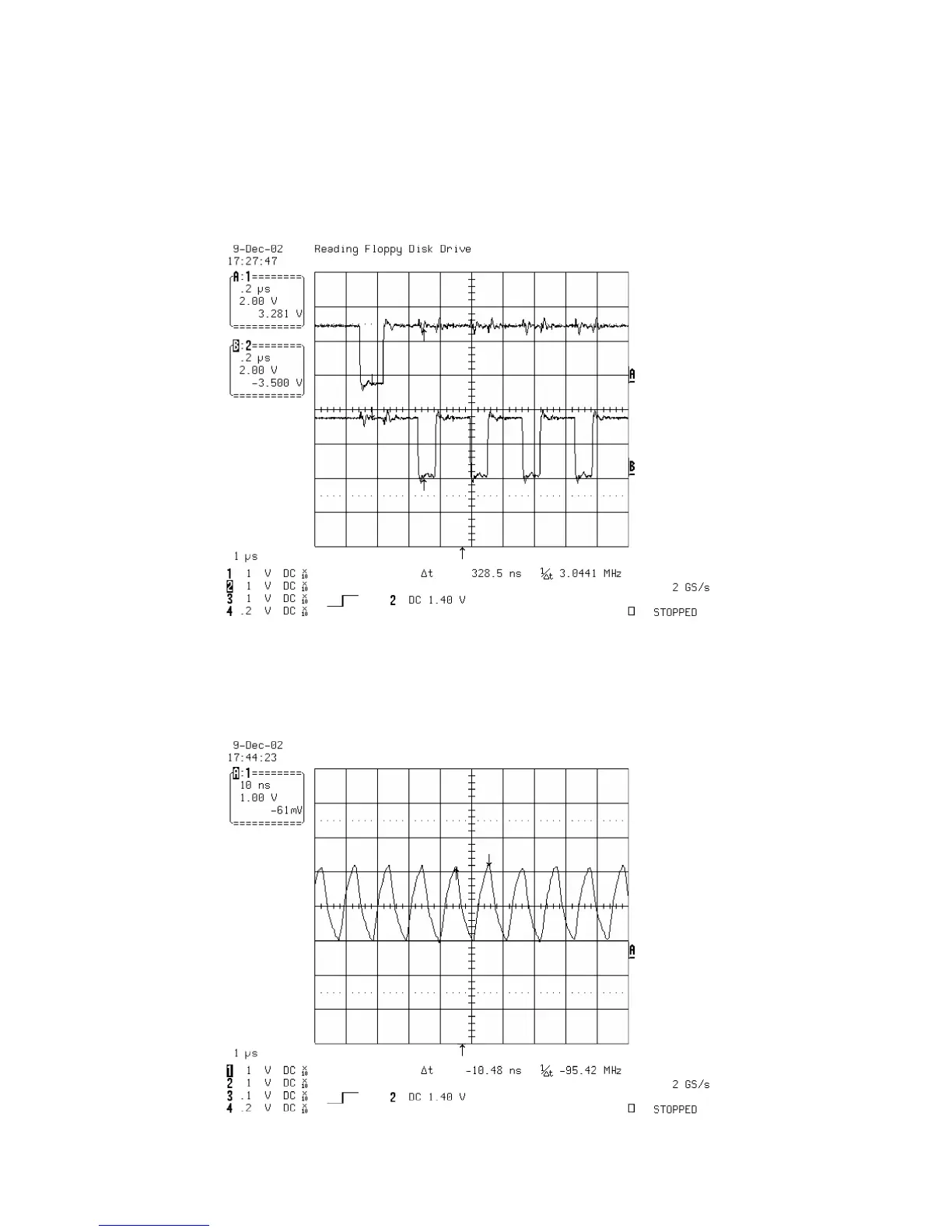

3-11
2. SDRAM CLOCK
1) ES8381 main clock is at 27MHz(X501)
(IC502 PIN 38)
DCLK = 93MHz, Vp-p=2.2, Vmax=2.7V
FIG 2-1
3) Flash R/W enable signal during download(Downloading)
FRD(IC503 PIN 28)
FWR(IC503 PIN 11)
FIG 1-4
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
