3. TECHNICAL BRIEF
- 75 -

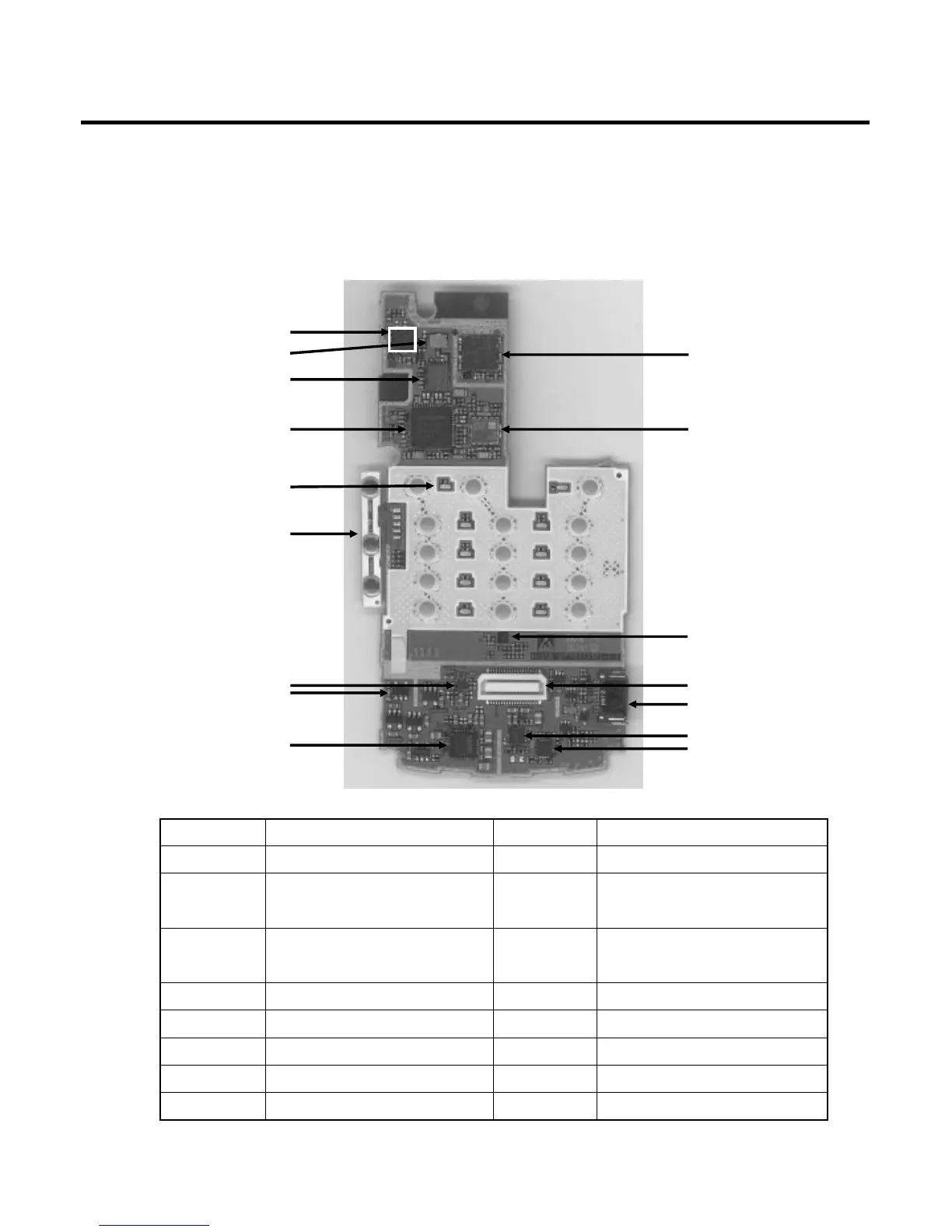

2.1. Main Top Side
LD900
FL103
U100
U103
U102
U901
CN901
U602
Side Key
U203
CN601
FL100
U101
U701
U703
U702
Reference Description Reference Description
U103 PAM (WCDMA) U701 AUDIO CODEC
FL103 DUPLEXER U101
PAM
(QUAD BAND GSM AND GPRS)
FL100 SEPERATOR U102
VCO (824MHz ~ 915MHz,
1710MHz ~ 1910MHz)
U100 RTR6250 Rev.D U901 Hall Effect Switch
LD900 White LED CN901 Connector (B to B)
Side Key Side Key CN601 Connector (IO,H/P)
U702 AUDIO AMP U703 Capless H/P AMP
U203 LDO 2.7V U602 Quad Analog Switch
