3. TECHNICAL BRIEF
- 76 -

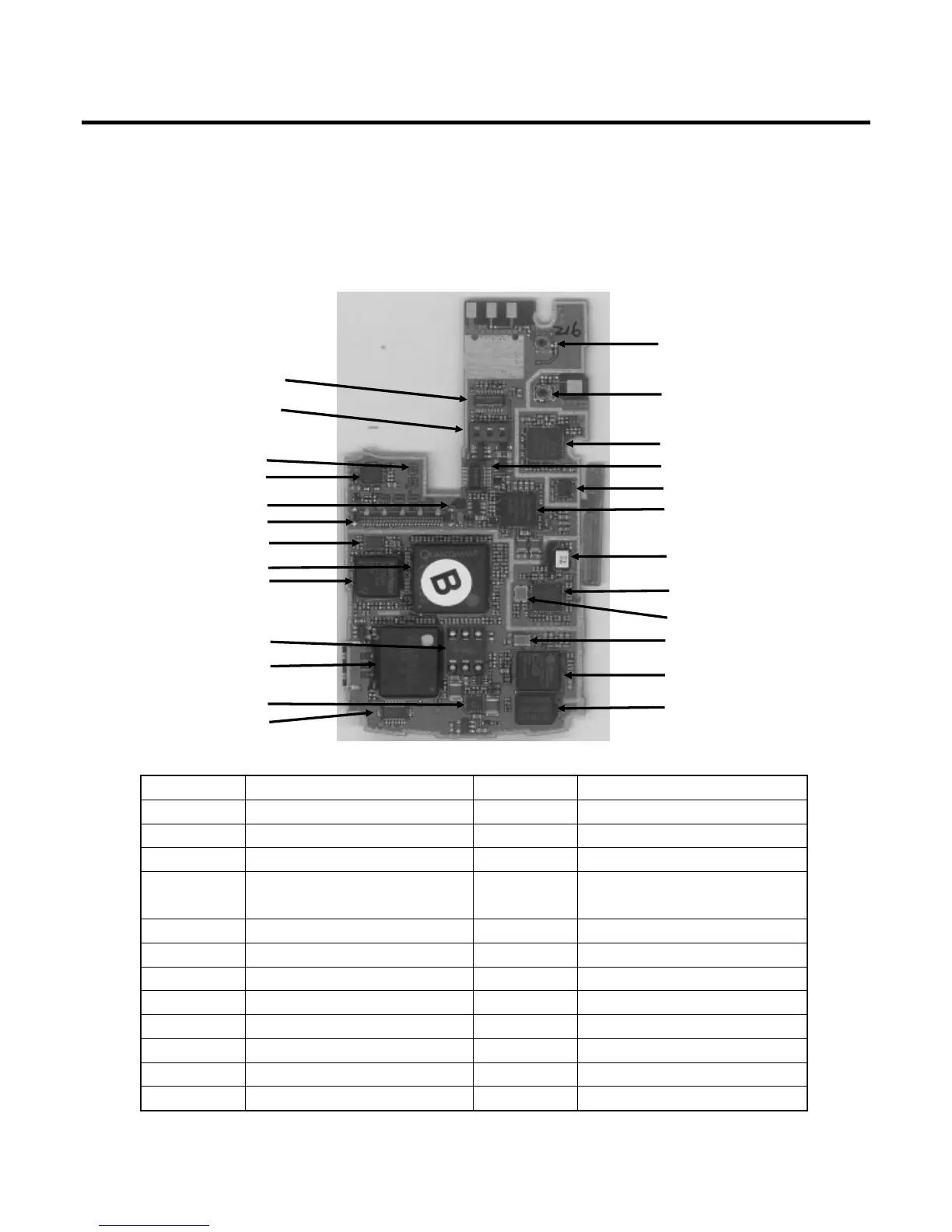

2.2. Main Bottom Side
SW100
CN802
CN600
FL802
U802
U800
CN801
X400
U300
U403
J500
U500
CN500
U400
SW200
U107
CN800
X100
U600
FL200
U200
U201
U204
X200
X201
Reference Description Reference Description
CN802 1.3M Camera Connector SW100 RF Switch
CN600 Connector for Battery SW200 DVB-H RF Switch
FL802 FILTER (EMI) U107 RFR6250 Rev.E
U802
Charge Pump (LCD Backlight /
CN800 VGA Camera Connector
Flash LED / Camera LDO)
CN801 To LCD FPCB ( Wire ASSY) X100 VCTCXO (19.2 MHz)
X400 Crystal (12 MHz) U600 PMIC (PM6650)
U300 MSM6275 FL200 FILTER for DVB-H
U403 DVB-H BB Backend Chip U200 DVB-H RF Tuner
J500 USIM Connector X201 Crystal (30MHz)
U500 MCP(1Gb NAND/512b SDRAM) X200 Crystal (30MHz)
U400 DVB-H power U201 DVB-H BB Module (DIB7000-H )
CN500 Connector for J-TAG U204 DVB-H SRAM
