• It is suffi cient only to supply power for upgrade.
• Shown from the right fi gure, connect yellow line (Battery) and red line (Ignition) to plus and minus terminal
respectively.
• Jack is connected to the audio set via its shapes matched each other.
• We need power supply for operation of audio set (Voltage : 12~15 V Current : Over 2 A)
Before connection between set and power supply, adjust voltage level to 15 V typically (It is okay up to 12 V.)
Power Supply has a variety of shapes and capacity of voltage and current.
At fi rst check these things.

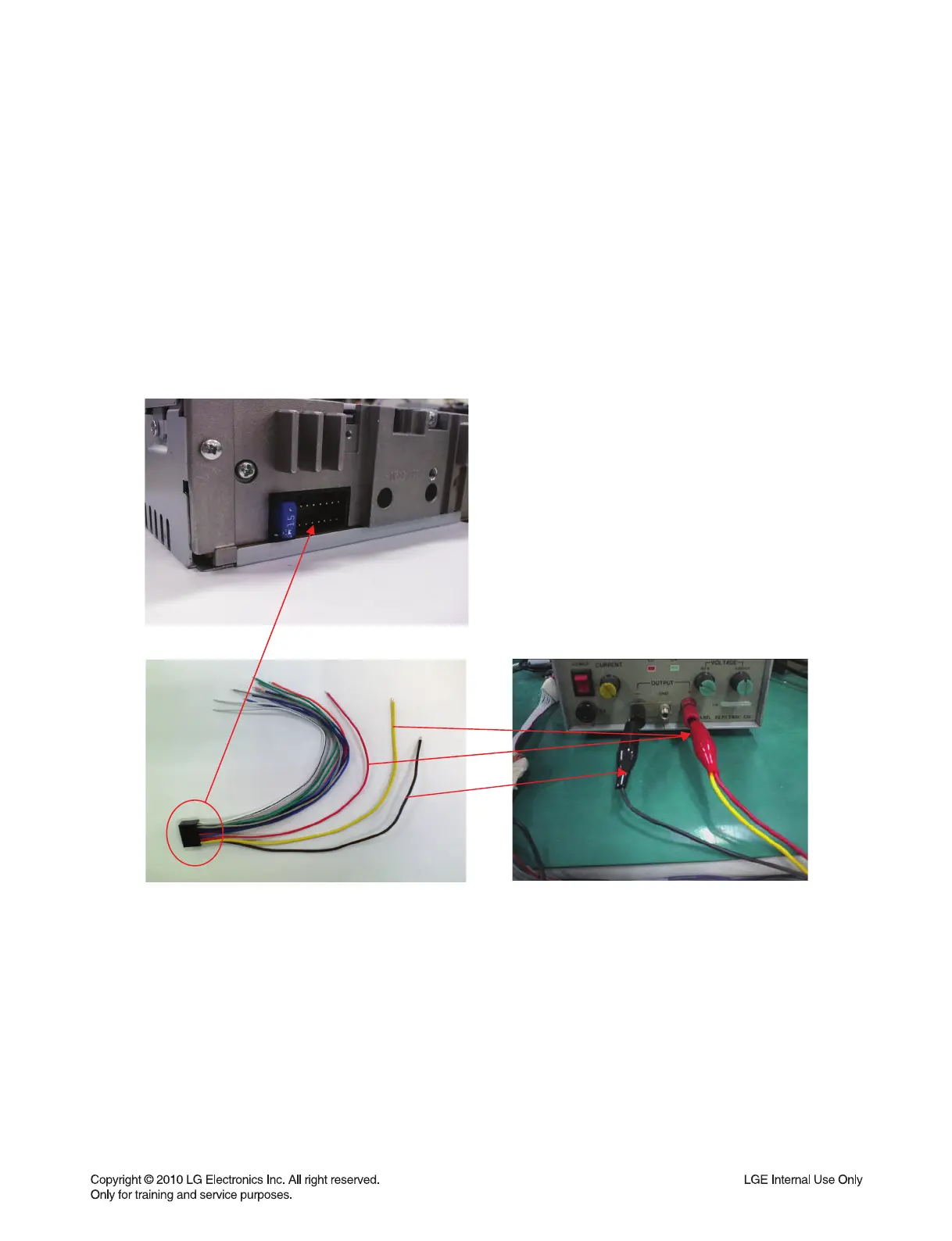

HOW TO CONNECT AUDIO SET TO POWER SUPPLY
