3-1

COMPONENT ACCESS

This section instructs you on how to service each component inside the range. The components and their

locations are shown below.

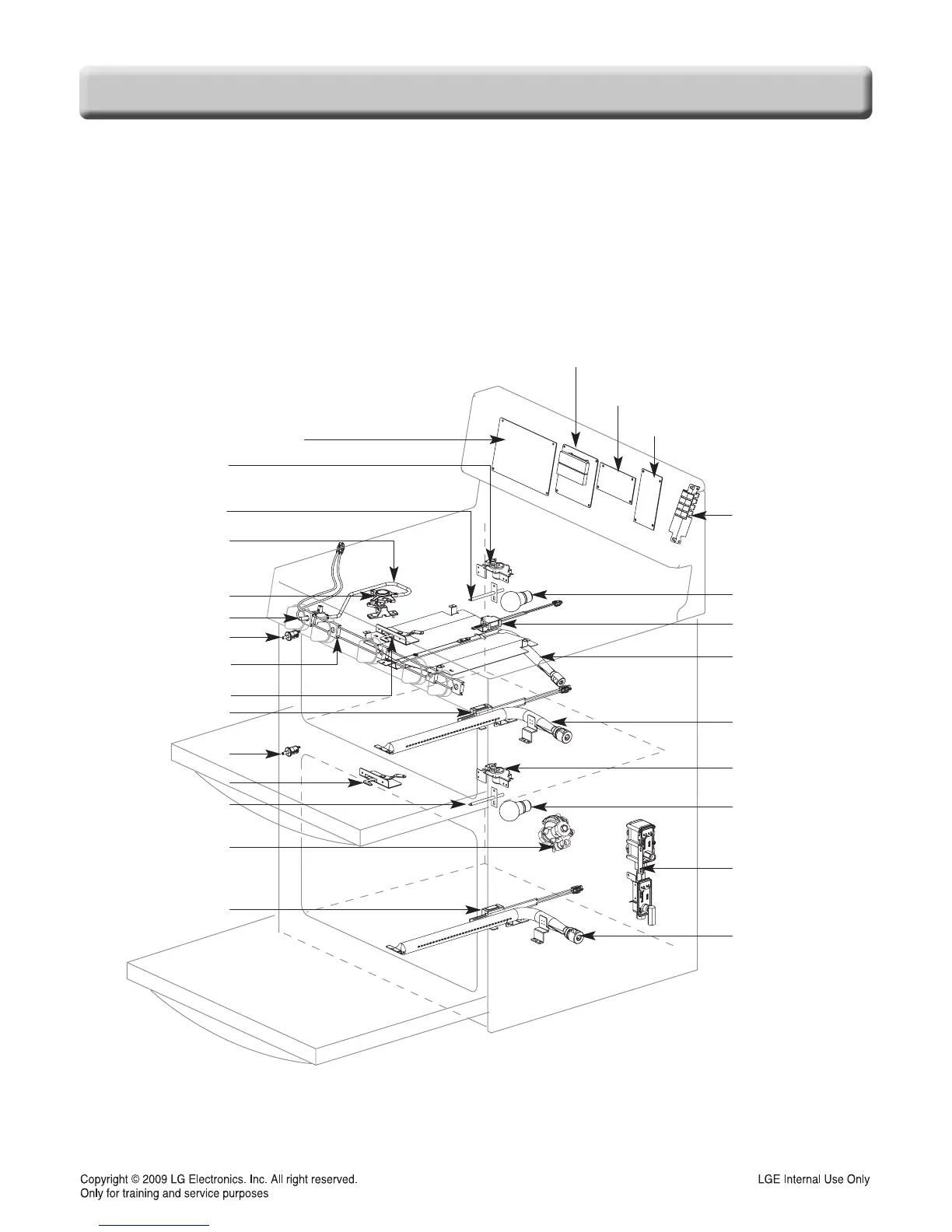

COMPONENT LOCA

TIONS

Spark module

Door locking motor

& micro switch

Burner pipe

Door switch

Oven light

Door switch

Cooktop valve

Display

Igniter (broil)

Broil burner

Upper bake burner

SMPS

Relay PCB

Oven Sensor

Main PCB

Ignition switch

Door lock assembly

Igniter(Upper Bake)

Igniter(Lower Bake)

Door lock assembly

Oven Sensor

Gas pressure

regulator

Burner body

Oven light

Oven valve

Lower bake burner

Door locking motor

& micro switch
