COMPONENT ACCESS

REMOVING THE OVEN TEMPERA

TURE SENSORS

(For both the Upper & Lower oven)

1. Turn off the electrical supply and gas supply

going to the range.

2. Open the oven door and remove the racks from

the oven.

3. To remove an oven temperature sensor :

a) Remove the 2 screws.

b) Remove the connecter in the cavity (To get the

connecter, pull the wire toward the cavity).

c) Remove the oven sensor.

WARNING

• DISCONNECT power supply cord

from the outlet before servicing.

• Replace all panels and parts before

operating.

• RECONNECT all grounding devices.

- Failure to do so can result in severe personal

injury, death or electrical shock.

CAUTION

• Be careful when you work on the

gas range handling the sheet metal

part.

- Sharp edge may be present and you can cut

yourself.

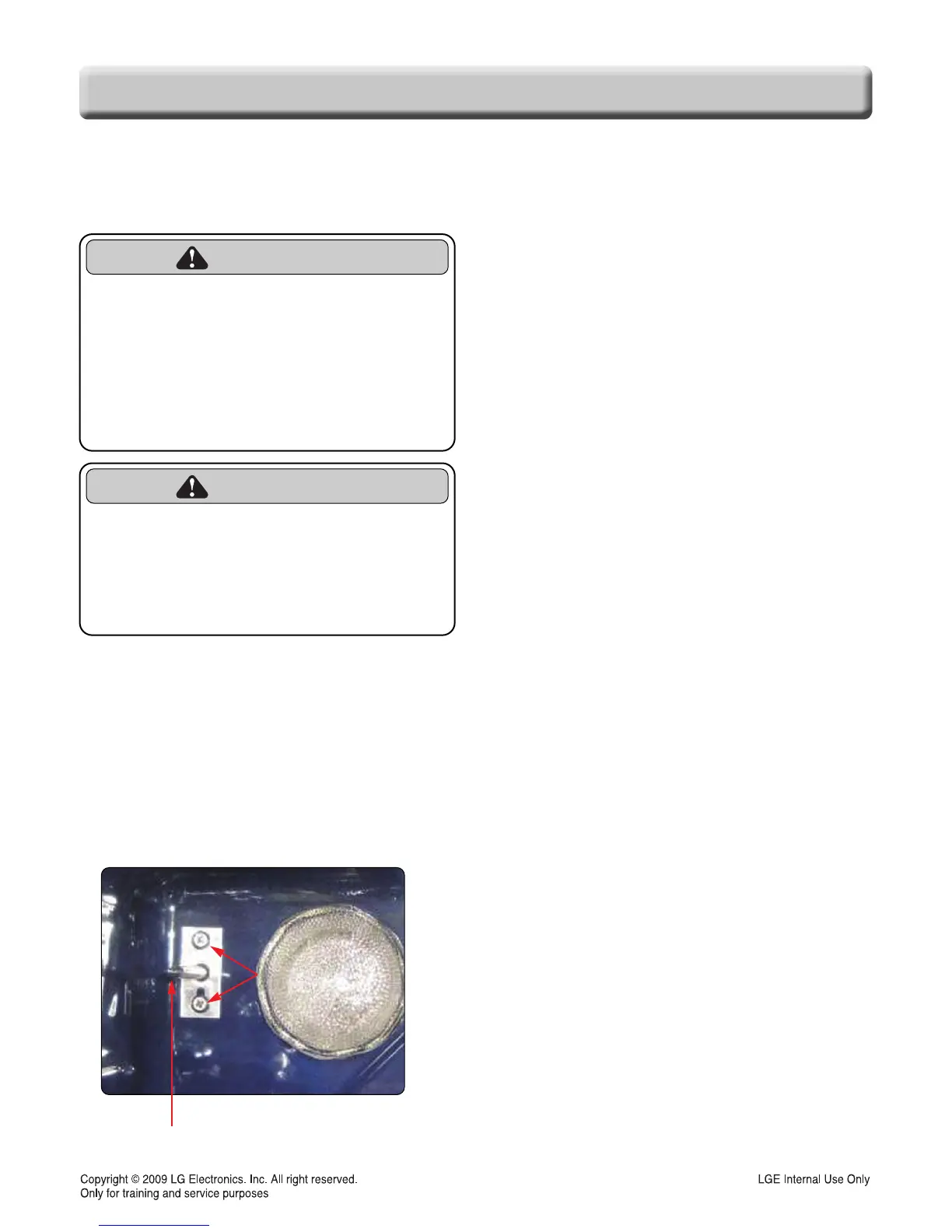

2 screws

Oven temperature sensor
