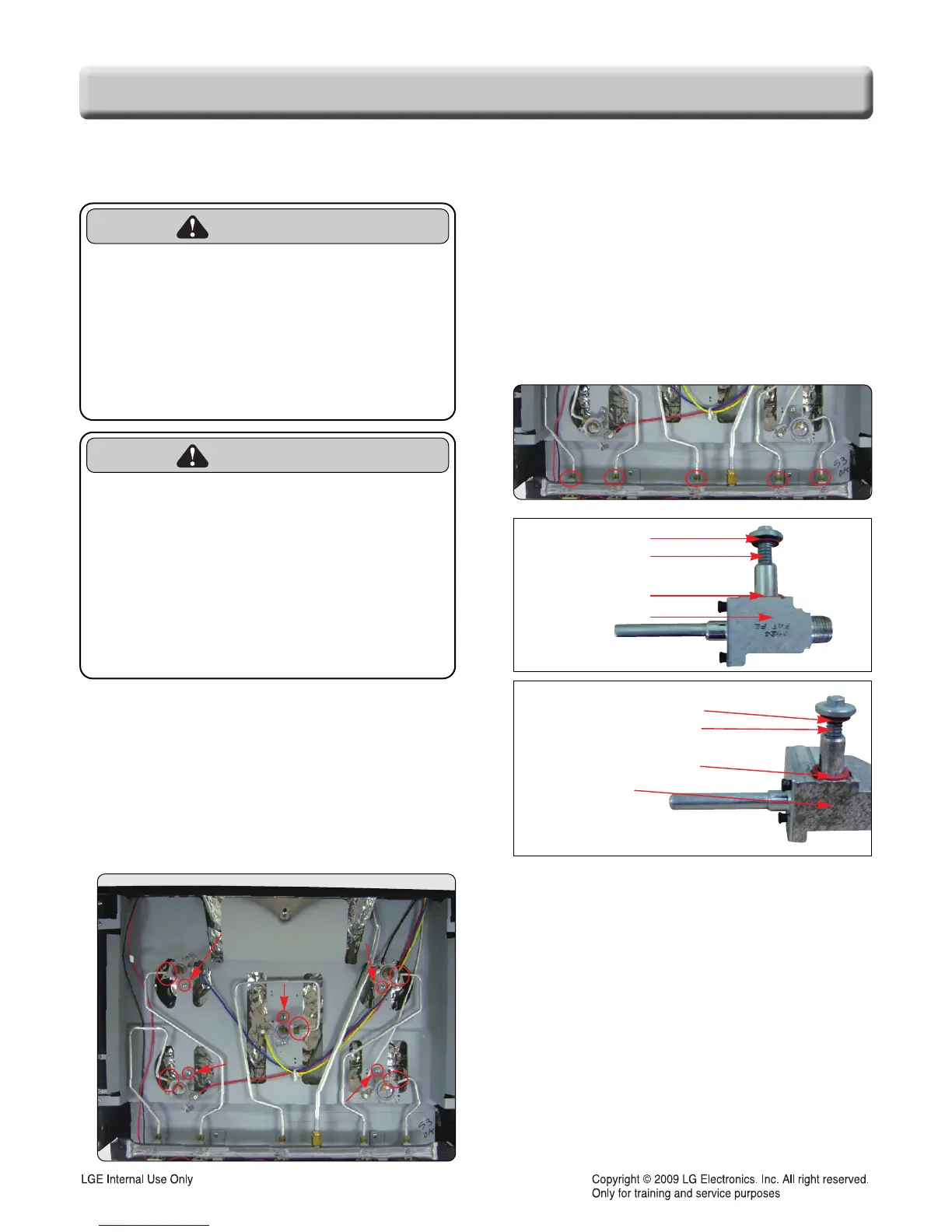

COMPONENT ACCESS

NOTE: When servicing the burner housing or the

valve, it is necessary to service also the pipe which

is designated.

1. Turn off the electrical supply and gas supply

going to the range.

2. Remove the cooktop plate (See “REMOVING

THE COOKTOP PLATE” on page 3-4).

4. To remove the valve:

a) Remove the manifold panel (See the step 3 on

page 3-5).

b) Remove the fitting that you need to remove.

c) Remove the ignition switch by prying on the 2

release tabs and slide the switch off the valve

stem.

Remove the valve screw and remove the valve.

REMOVING THE COOKT

OP P

WARNING

• DISCONNECT power supply cord

from the outlet before servicing.

• Replace all panels and parts before

operating.

• RECONNECT all grounding devices.

- Failure to do so can result in severe personal

injury, death or electrical shock.

CAUTION

• The 2 lock tabs on each igniter

switch are fragile. Tab breakage can

occur if excessive release pressure

is applied.

• Check that the gas seal gasket on

the screw and the gas valve remain

in place before installing the new

gas valve.

1 screw

Screw Seal

Valve Screw

Valve Seal

Single Burner valve

Screw Seal

Valve Screw

Valve Seal

Double Burner

Valve
