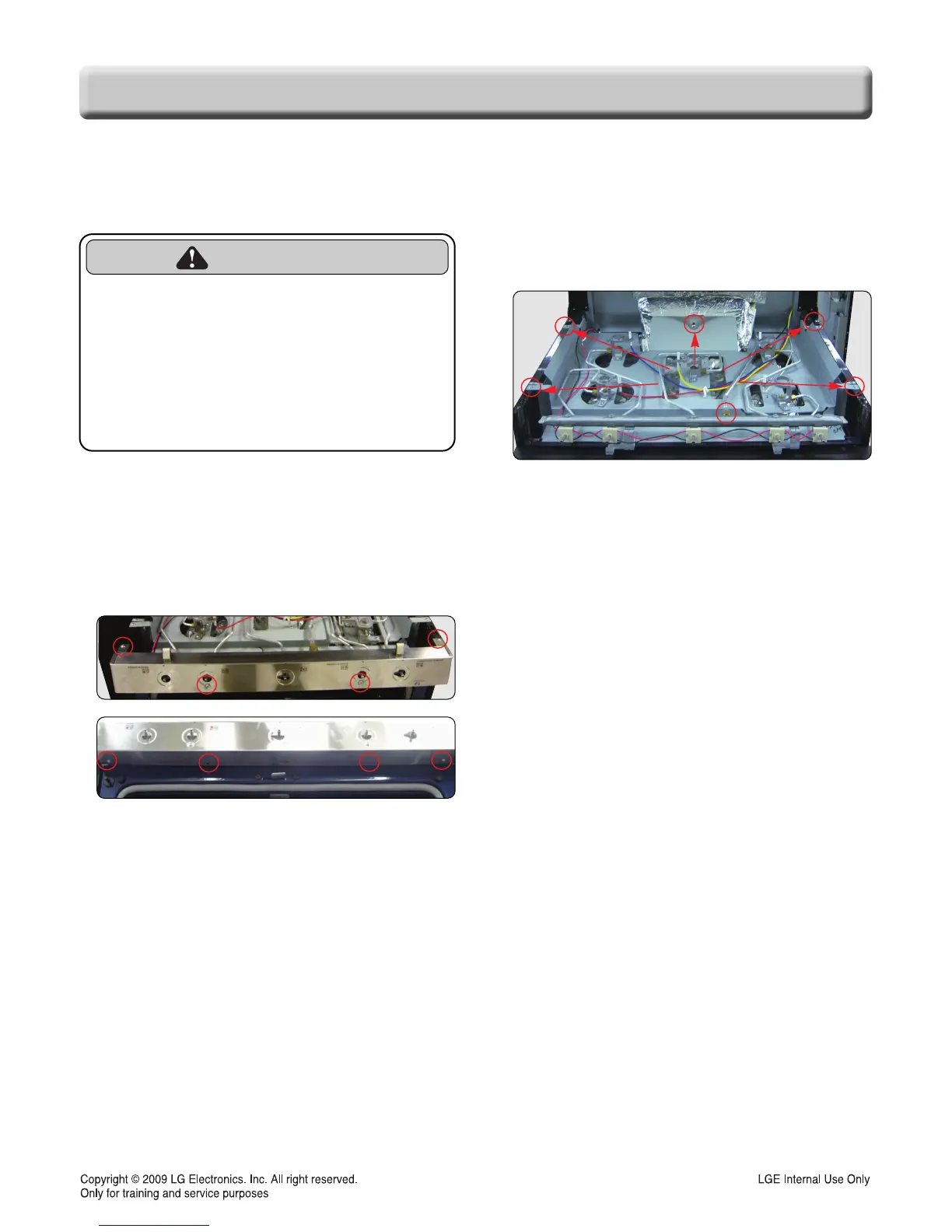

COMPONENT ACCESS

1. Turn off the electrical supply and gas supply

going to the range.

2. Remove the cooktop plate (See “REMOVING

THE COOKTOP PLATE” on page 3-4).

3. Remove the manifold panel by unfastening the 8

phillips head screws.

4. Remove the tubing fitting (5/8-inch).

5. Remove 5 phillips head screws.

REMOVING THE CASE ASSEMBL

(COOKT

OP BURNER ASSEMBL

WARNING

• DISCONNECT power supply cord

from the outlet before servicing.

• Replace all panels and parts before

operating.

• RECONNECT all grounding devices.

- Failure to do so can result in severe personal

injury, death or electrical shock.

5 screws

LG LDG3016ST Service Manual
