LG LMV1831ST User Manual

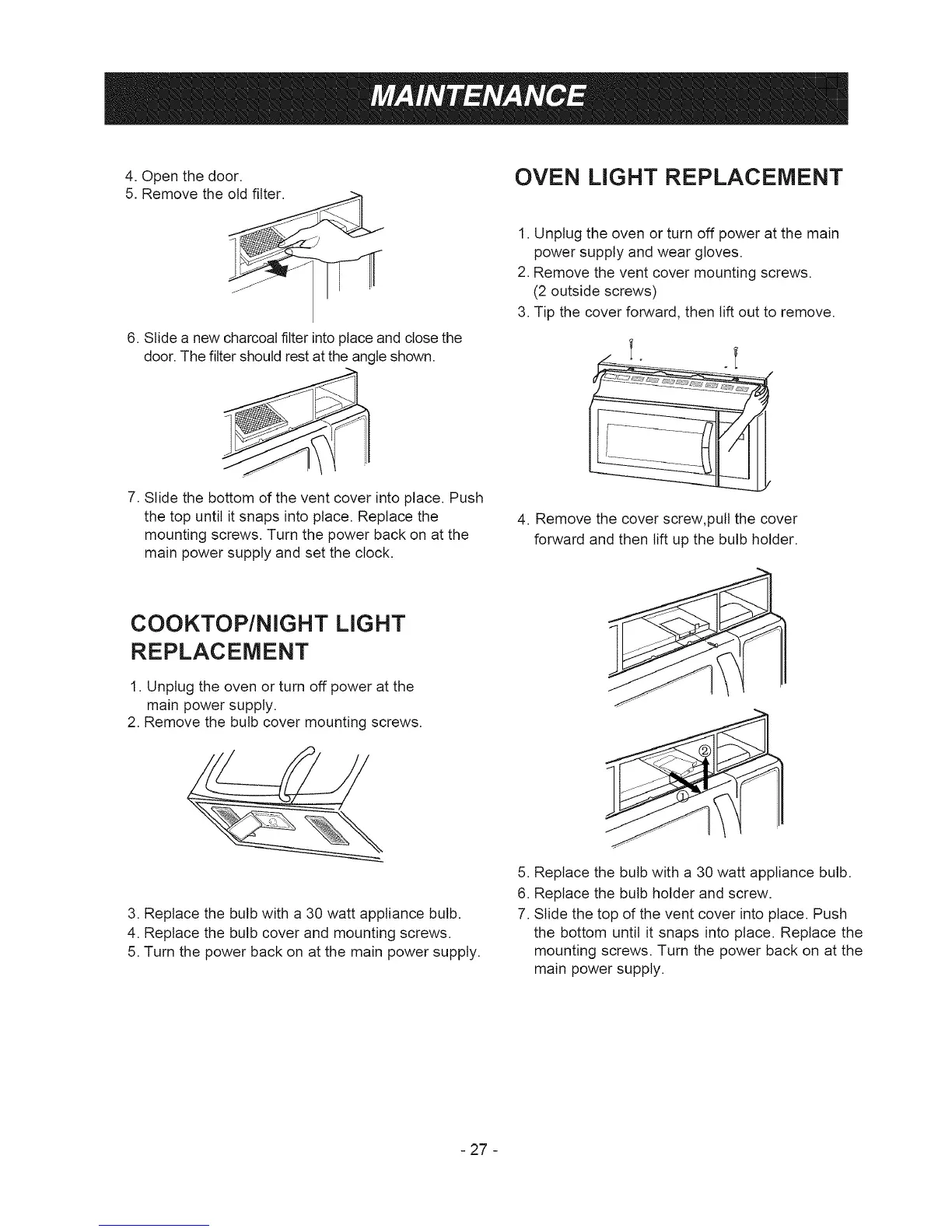

4. Open the door.
5. Remove the
6. Slide a new charcoal filter into place and close the
door. The filter should rest at the angle shown.
7. Slide the bottom of the vent cover into place. Push
the top until it snaps into place. Replace the
mounting screws. Turn the power back on at the
main power supply and set the clock.
COOKTOP/NIGHT LIGHT
REPLACEMENT
1. Unplug the oven or turn off power at the
main power supply.
2. Remove the bulb cover mounting screws.
3. Replace the bulb with a 30 watt appliance bulb.
4. Replace the bulb cover and mounting screws.
5. Turn the power back on at the main power supply.
OVEN LIGHT REPLACEMENT
1. Unplug the oven or turn off power at the main
power supply and wear gloves.
2. Remove the vent cover mounting screws.
(2 outside screws)
3. Tip the cover forward, then lift out to remove.
4. Remove the cover screw, pull the cover
forward and then lift up the bulb holder.
5. Replace the bulb with a 30 watt appliance bulb.
6. Replace the bulb holder and screw.
7. Slide the top of the vent cover into place. Push
the bottom until it snaps into place. Replace the
mounting screws. Turn the power back on at the
main power supply.
- 27 -

LG LMV1831ST Specifications

General

Style	over the range
Color	stainless steel
Total Capacity	1.8 cu. ft.
Convection	no
Power Levels	10
Fan Speeds	3
Venting Type	non ducted
Sensor Cooking	yes
Quick Start	yes
Control Type	intuitouch - keypad
Timer	yes
Interior Light	incandescent; yes
Microwave Power	1, 000 watts
Voltage	120 volts
Current	15

Weight and Dimensions

Depth	15 3/8 inch
Height	16 7/16 inch
Width	29 15/16 inch
Net Weight	48.5 lbs.
