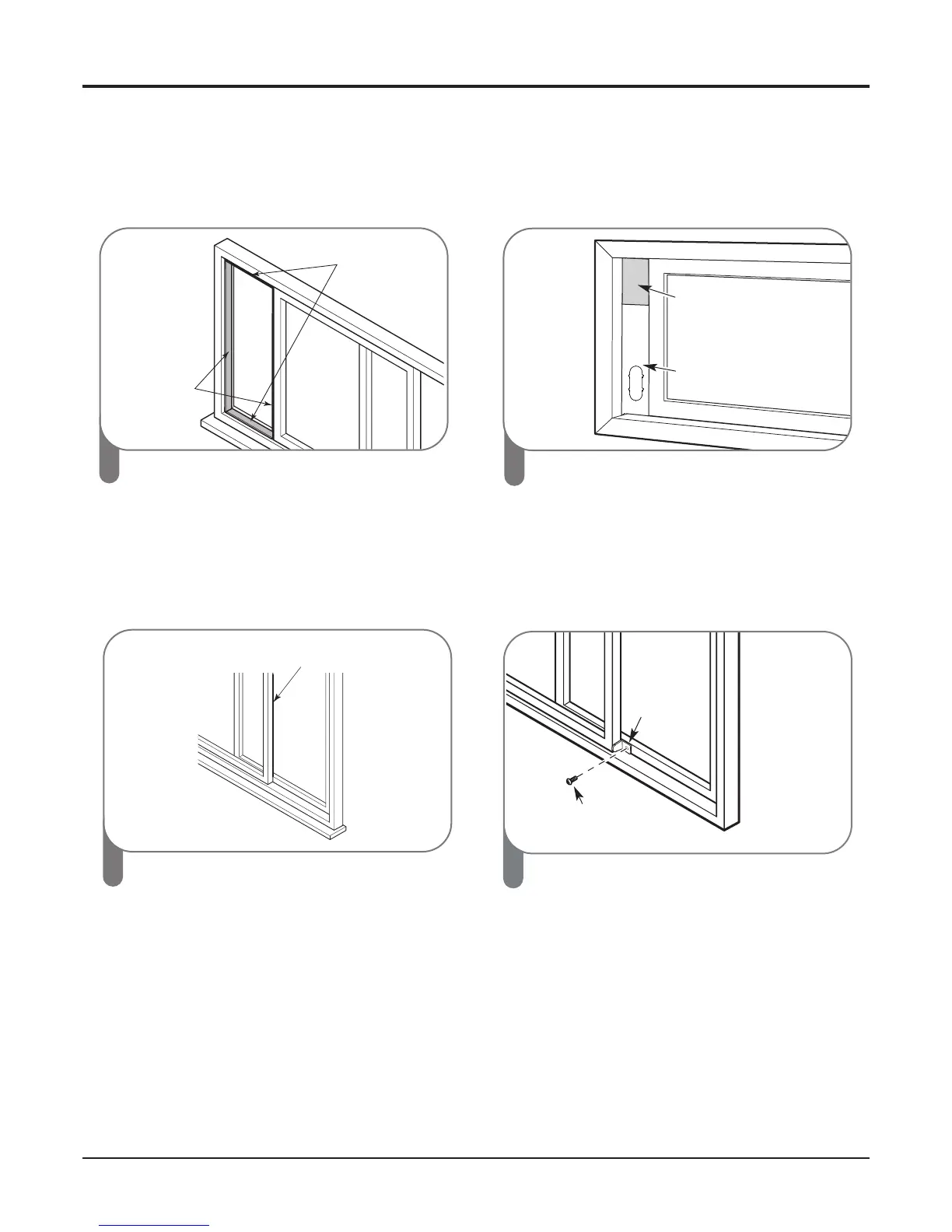

4-5 INSTALLATION IN CASEMENT STYLE WINDOWS
Foam seal A
(Adhesive type)
Foam seal C
(Adhesive
type-shorter)
1
Cut the foam seal A (adhesive type) &
C (adhesive type-shorter) to the proper
length, and attach it to the window sash and
frame.
2
Insert the vent panel assembly, including
extension panels, if needed, into the window
opening. Extend the extension panels, if
used.
Foam seal B
(Non-adhesive type)
3
Cut the foam seal B (Non-adhesive type) to
the window height. Stuff the foam seal B
between the glass and the window to
prevent air and insects from getting into the
room.
Vent
Panel
NOTE: The window installation kit can be used with casement windows between 18
ʺ
and 50
ʺ
tall.
Extension panel
(if required)
4
Install the window security bracket with a
type B screw as shown.
Type B sc re w
Security
bracket
