- 31 -
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

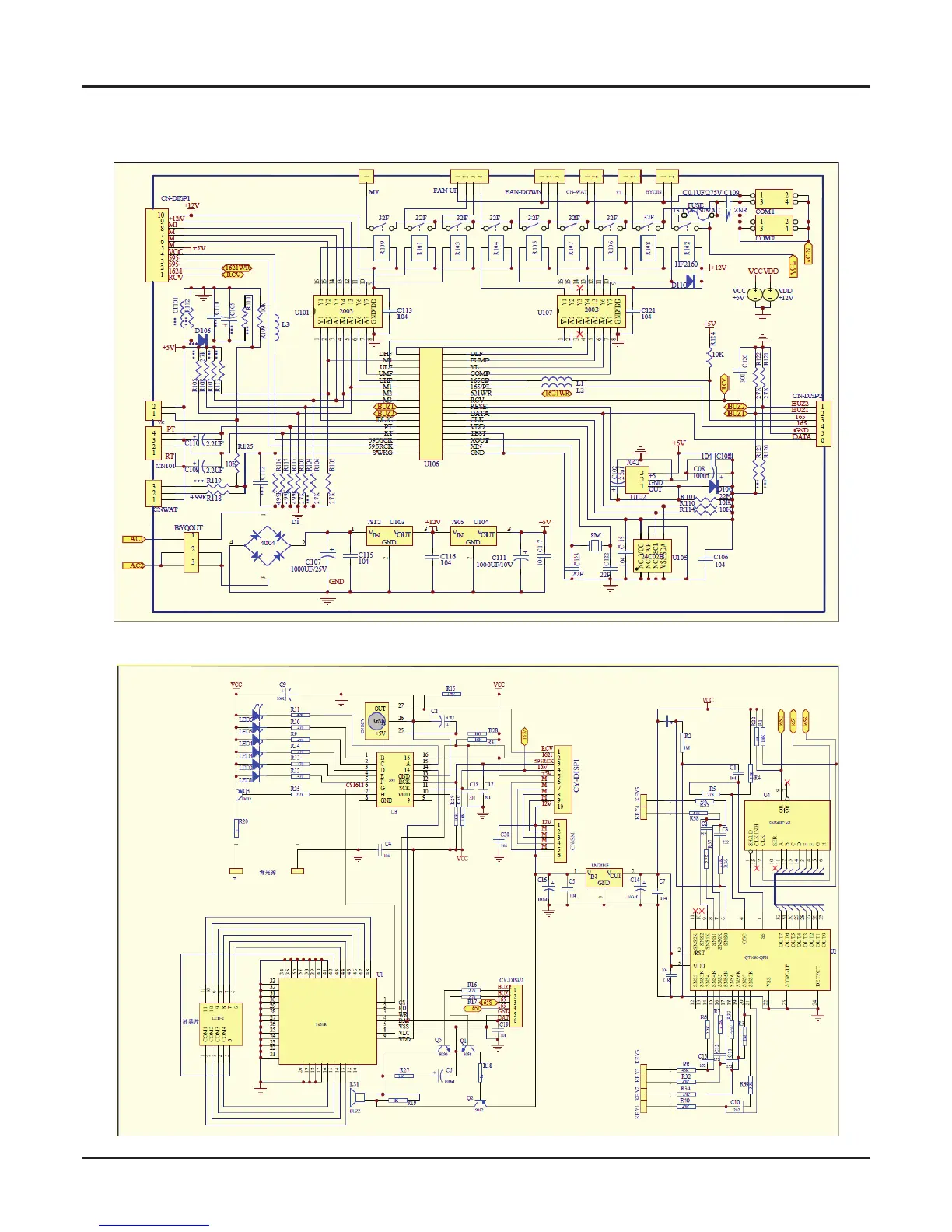

8-1 Circuit diagram
Display PCB
Main PCB
8. CIRCUIT DIAGRAM
