3-2
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
5. Separate PCB assembly after unpluging the ‘17
connectors.
6. Remove a cooktop plate assembly (See the page
3-4) and remove 4.
7. Remove the 11 Screws on the controller
assembly and remove the assemblies in order.
8. Replace the control panel assembly.
COMPONENT ACCESS
1. Turn off the electrical supply going to the range.
2. Pull the range away from the wall so that you can
access the rear panel.
3. Remove two wire covers by removing the screw.
4. Remove the 20 screws from the rear cover and
remove the cover.

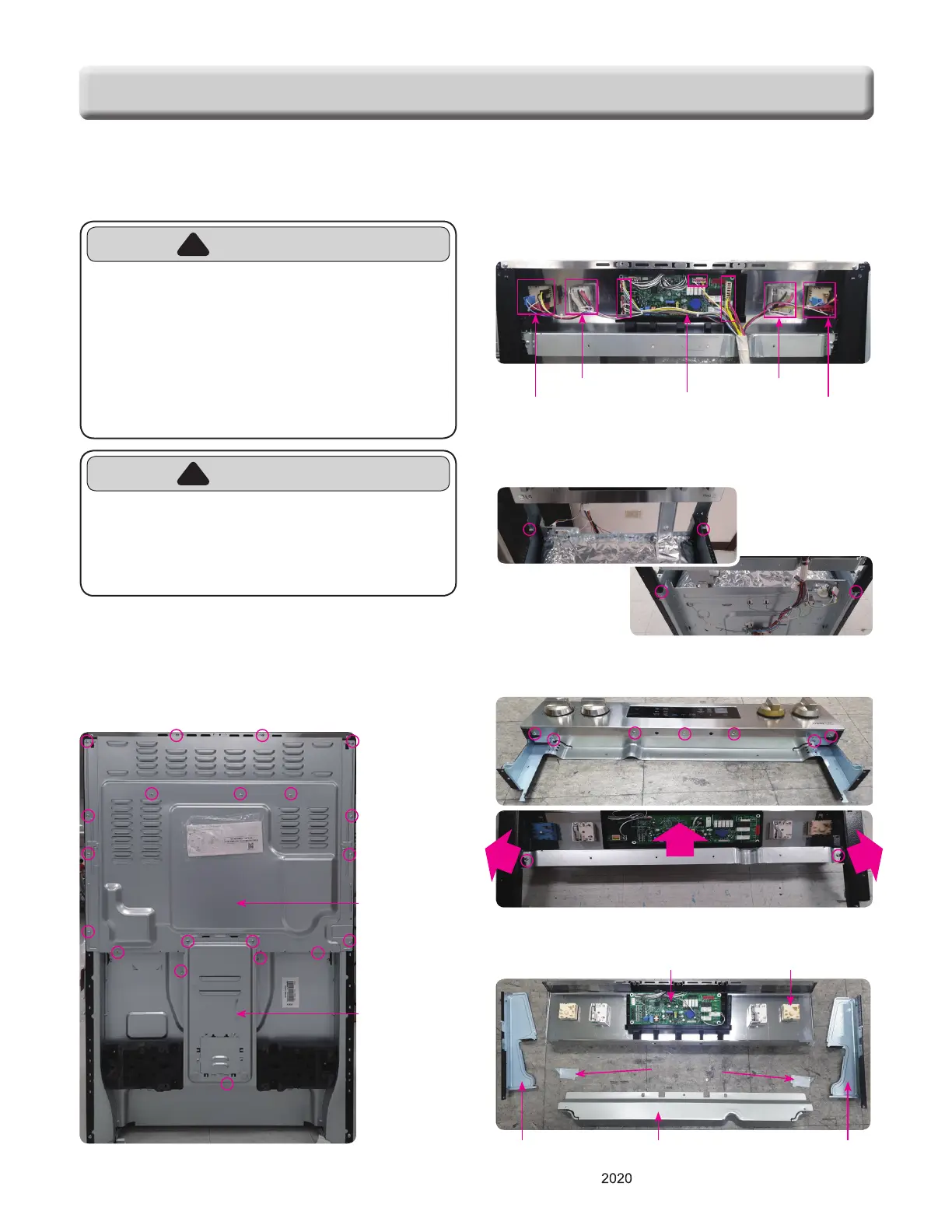

REMOVING THE REAR, MOTOR COVER
AND CONTROL ASSEMBLY
WARNING
• DISCONNECT power supply cord
from the outlet before servicing.
• Replace all panels and parts before
operating.
• RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
CAUTION
•
Be careful when you work on the electric
range handling the sheet metal part.
- Sharp edge may be present and you can cut
yourself.
Control Cover
Rear Cover
Motor Cover
4 Connectors 4 Connectors
Main PCB
(5 Connectors)
2 Connectors 2 Connectors
1
22
Main PCB
Support Control panel AssemblyBarrier
Regulator
Bracket
To Next Page
