8-1
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes

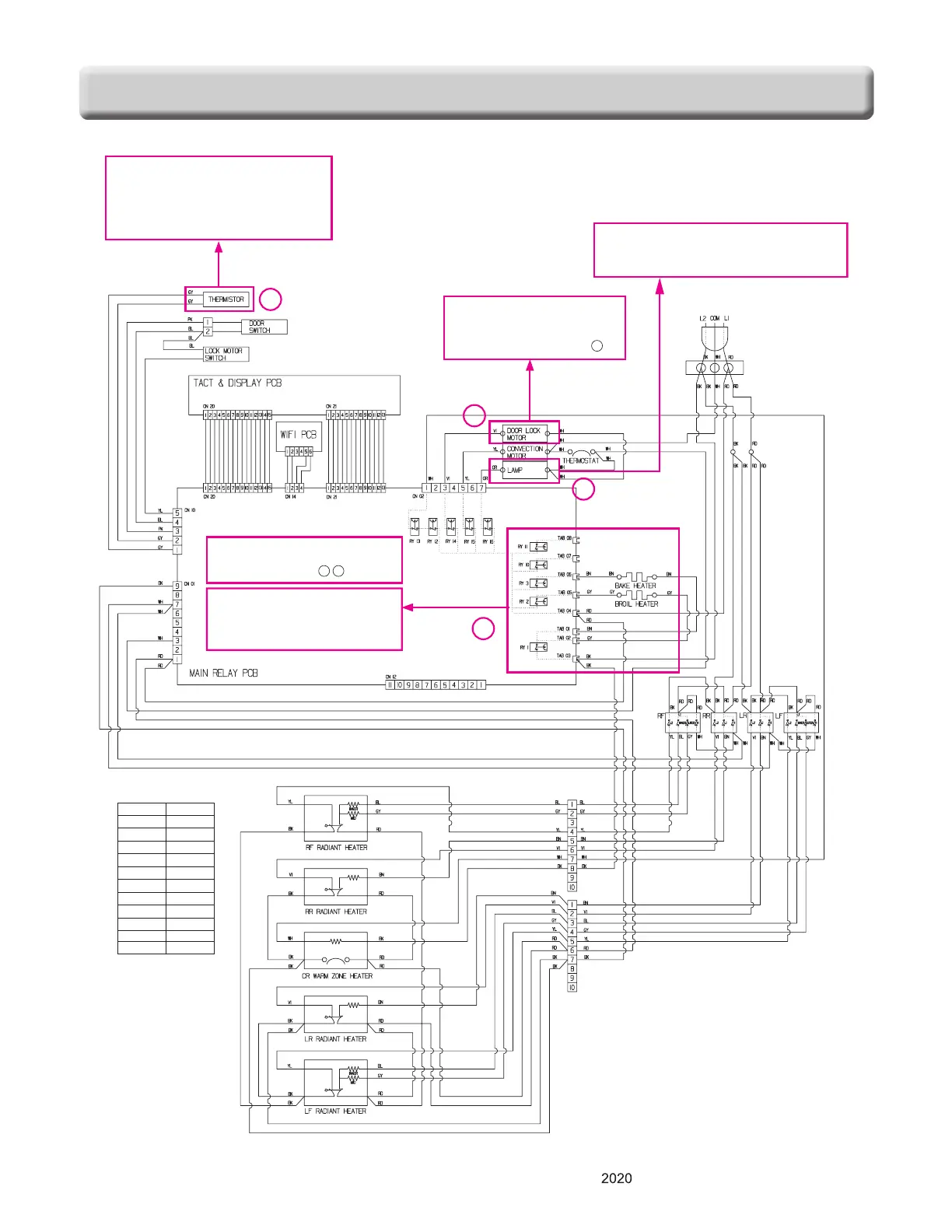

BASIC CHECK SUMMARY
WIRE COLORS
SYMBOLCOLOR
WH WHITE
BK BLACK
RD RED
YL YELLOW
PK PINK
BL BLUE
BN BROWN
GN GREEN
GY GRAY
OR ORANGE
VI VIOLET
Symptom : Oven lamp not operating
-. Check the Lamp coil’s resistance
(Normal: approximately 20~40Ω)
Symptom :
Door lock fail (F-10)
-. Check : relative part( )
Symptom : Sensor error or
no heating (F1,F2,F9)
-. Check : Sensor resistance
(approximately 1.06 kΩ at 65F
~ 1.12 kΩ at 65F
2
1
1
3
4
Symptom : Oven hot(F6)
-. Check: : All heater relays are
open/short
Symptom : no heating(F9)
-. Check: related( )
2 4
To Next Page
