LG LREL6323 Series Service Manual

4-7
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes

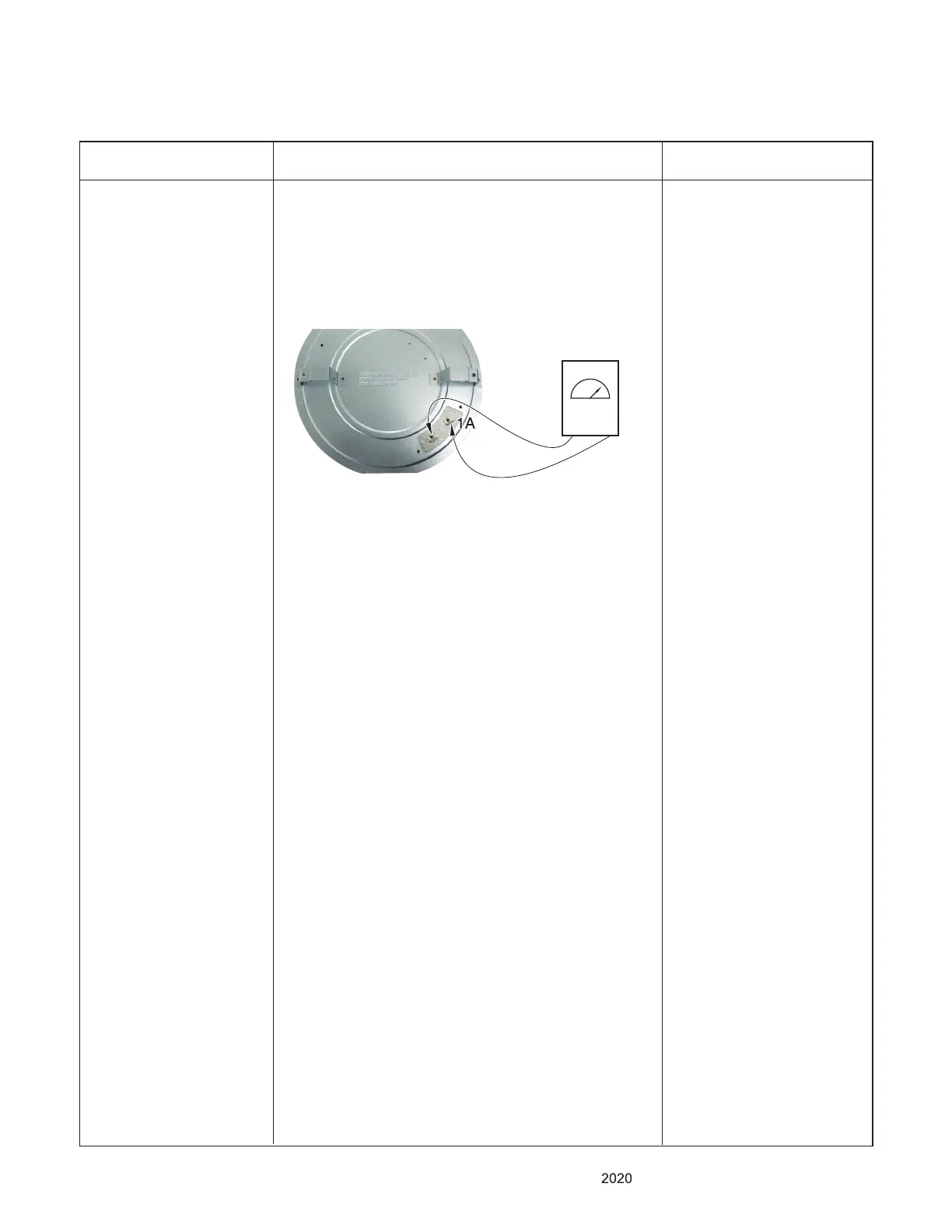

1. Refer to page 3-6 for the servicing procedure
2. Set the Multiple meter scale to the R x 1
3. Disconnect wires from CR elements
4. Touch the ohmmeter test leads to the between
element terminal.
The meter should indicate 571
Ω ± 10%
Center Rear(CR)
Element
: Warming Zone
(Plane Heater)
Components Test procedures Results
Normal: Approximately 571 Ω,
If not replace
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
Element
terminal
