4-5
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
Components Test procedures Results
Dual surface unit:
Left Front(LF)
Element
1. Refer to page 3-7 for the servicing procedure
2. Set the Multiple meter scale to the R x1
3. Disconnect wires from cook-top elements

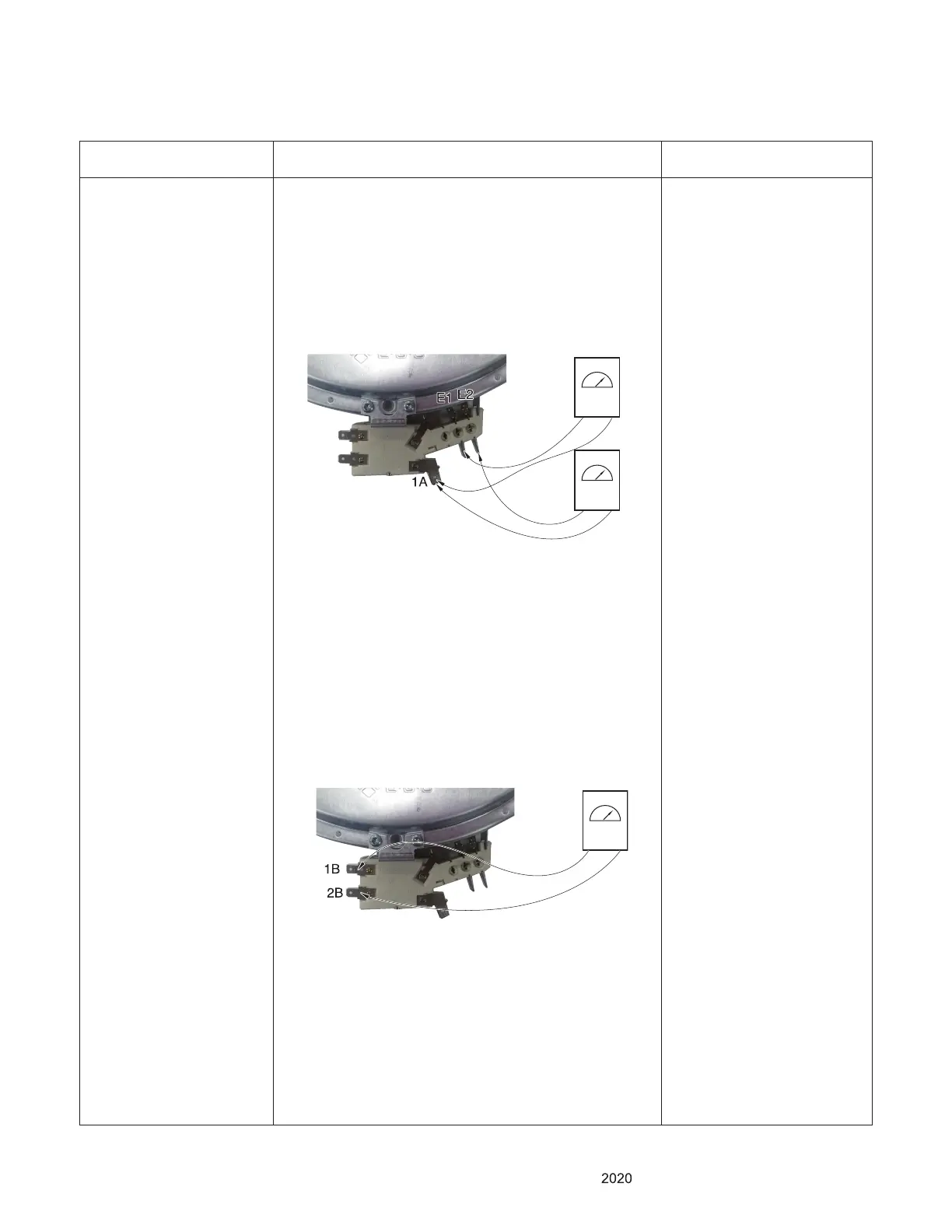

4. Touch the ohmmeter test leads to the (E1 & 1A)
and (E2 & 1A) the meter should indicate :
- (E1 & 1A)
38 Ω ± 10%
- (E2 & 1A)
30 Ω ± 10%
Normal : Approximately 38 Ω
Normal : Approximately 30 Ω
5. Touch the ohmmeter test leads to limiter terminals
1B and 2B.
With the temperature below 150˚F, the meter
should indicate an open circuit(infinite).
With the temperature above 150˚F, the meter
should indicate continuity (0 Ω).
Below 150˚F
open circuit(infinite).
Above 150˚F
continuity (0 Ω)
To Next Page
