COMPONENT ACCESS
7.

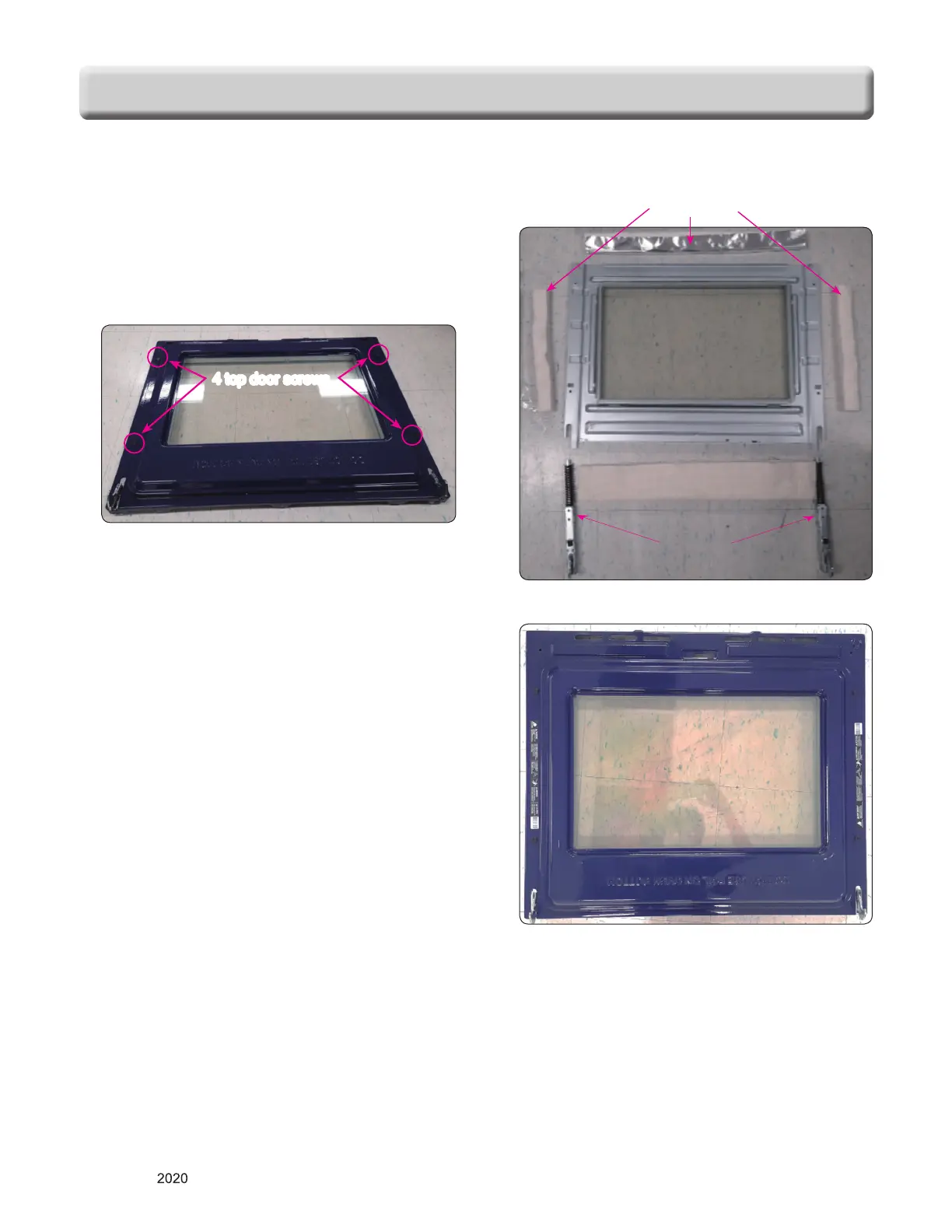

To remove a hinge hanger assembly:
a) Remove the 2 top liner screws (See step 3~4
on page 3-14)
b) Place the door liner assembly on a padded
work surface with the hinge hangers over the
edge.
c) Remove the 4 top door screws.
d) Lift the hinge hanger out of the door liner slot.
8. Lift the insulation cover, inner oven door glass and
bracket assembly out of the door liner.
Insulation
Insulation cover
Inner oven door
Glass & Bracket
Insulation
Hinge
Insulation
Door frame
4 top door screws
To Next Page
