LG LREL6323 Series Service Manual

9-3
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes

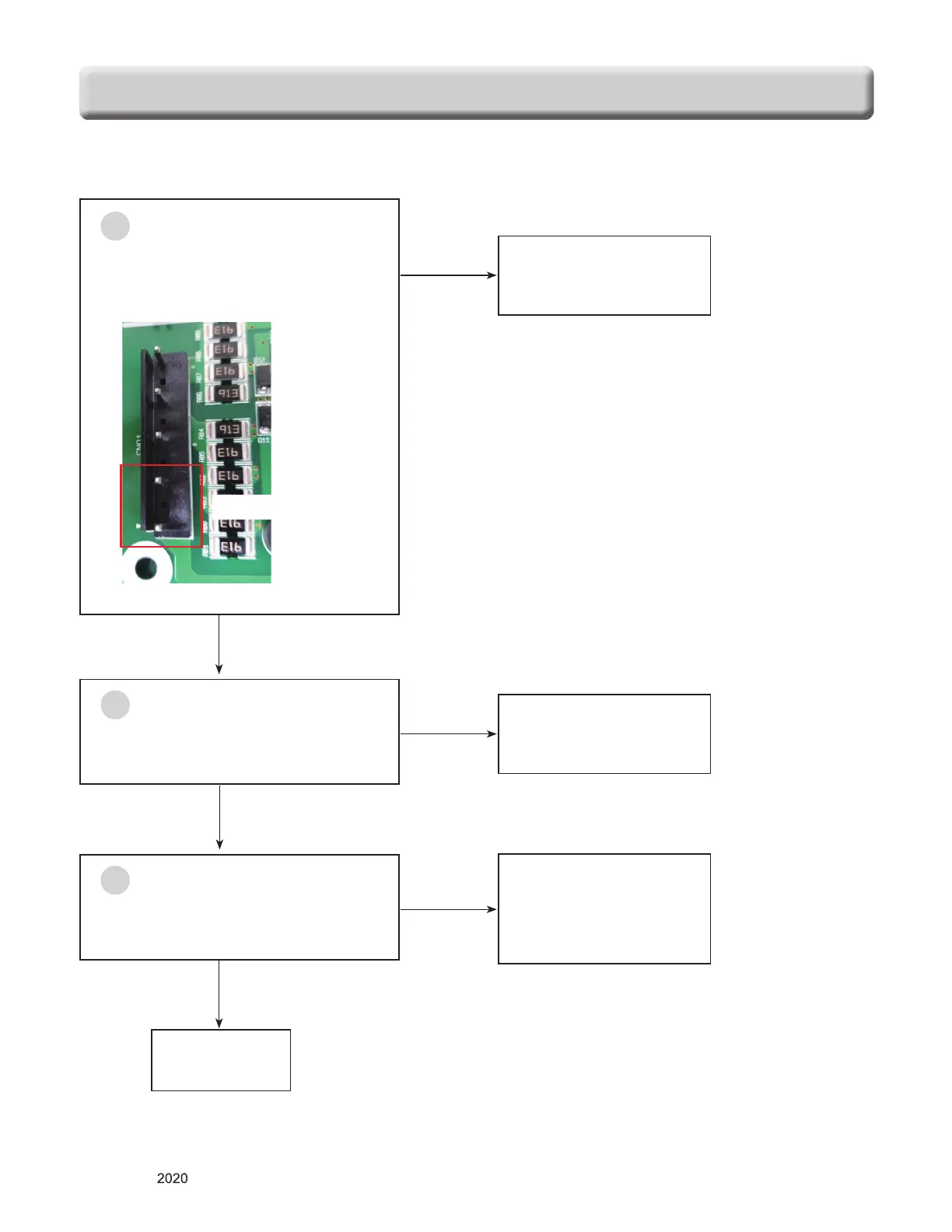

CHECKING FLOW CHART BY FAILURE
Check the AC input of Main PCB
- Main PCB 1pin,3pin of CN01 120V AC?
No
Yes
Replace the main PCB
4
No
Yes
Check the connection of L1 and N
at Terminal block. Normal?
Reconnect.
5
No
Yes
Check the Thermostat
- Normal : Short
- Abnormal : Open
Normal?
Replace the Thermostat
Replace the
main PCB
6
CN01
