9-9
Copyright ©
LG Electronics Inc.
All rights reserved.
Only training and service purposes

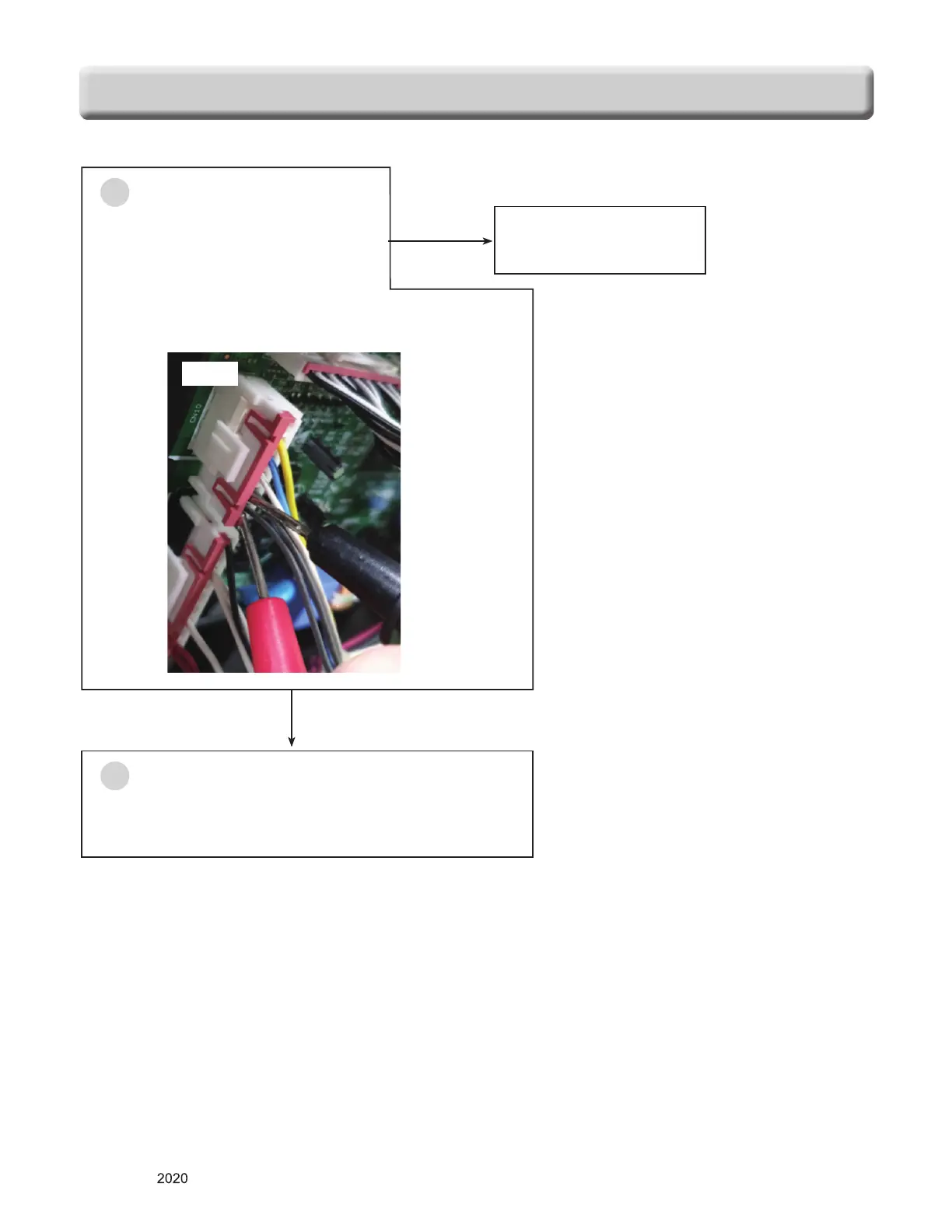

CHECKING FLOW CHART BY
F
AILURE
Is the resistance of thermistor normal?
Check
Pin 1 and 2 of CN10 in main PCB.
Normal
– approximately
0.6~1K
ohm at
25℃.
No
Replace the failed
Thermistor
5
Ye
s
Unplug the unit
CN10
6
Replace the Main PCB
51
53
