LG LS090HSV5 Engineering Manual

14 | PRODUCT DATA
Single Zone High Efciency Standard Wall Mount Engineering Manual
Due to our policy of continuous product innovation, some specications may change without notication.
©
LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.

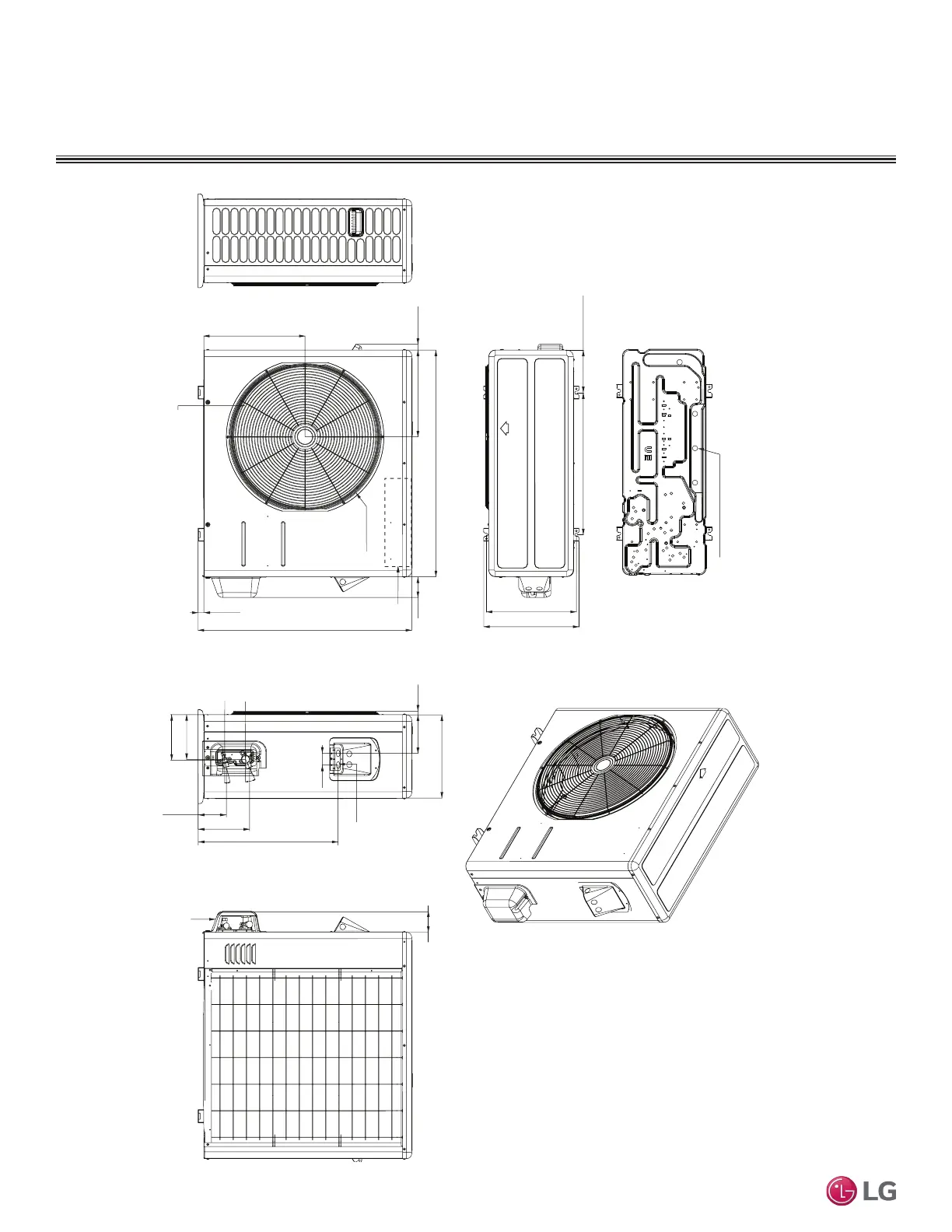

OUTDOOR UNIT DIMENSIONS
LSU180HSV5
Unit : Inch (mm)
13-13/32 (340)
14-3/16 (360)
6-15/32 (164) 21-1/2 (546)
2-3/4 (69.5)
12-19/32 (320)
34-1/4 (870)
13-3/32 (333)
29/32 (22.5)
5-7/8 (149)
17/32 (13)
3-5/32 (79.5)
21-1/2 (571)
20-27/32 (529)
31-1/2 (800)
7-11/16 (195)
4-7/32 (107)
6-25/32 (172)
7/8 (22)
15-3/32 (383)
1-25/32 (45)
25°
14°
6-29/32 (175)
Liquid Pipe
Connection
(Flared)
Vapor Pipe
Connection
(Flared)
Service Valve Cover
Communication /
Connection (Power)
Cable Hole
Control Box
Air Outlet
Drain Hole 4-Ø13/16 (20)
