LG LS090HSV5 - Wiring Diagrams

24 | PRODUCT DATA
Single Zone High Efciency Standard Wall Mount Engineering Manual
Due to our policy of continuous product innovation, some specications may change without notication.
©
LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
LSN090HSV5, LSN120HSV5, LSN180HSV5

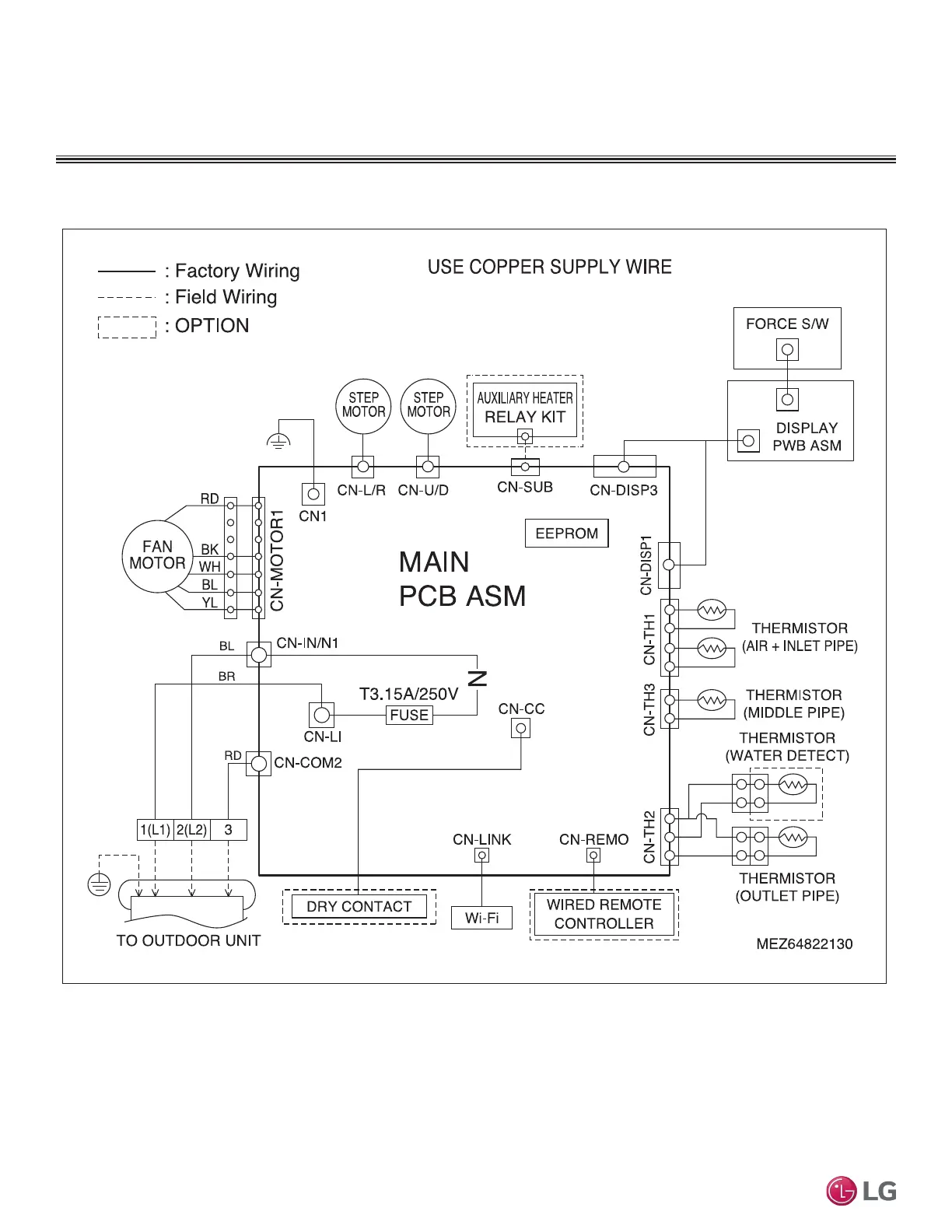

INDOOR UNIT WIRING DIAGRAM
Wiring Diagram for LSN090, 120, 180HSV5
