MAKING CONNECTIONS

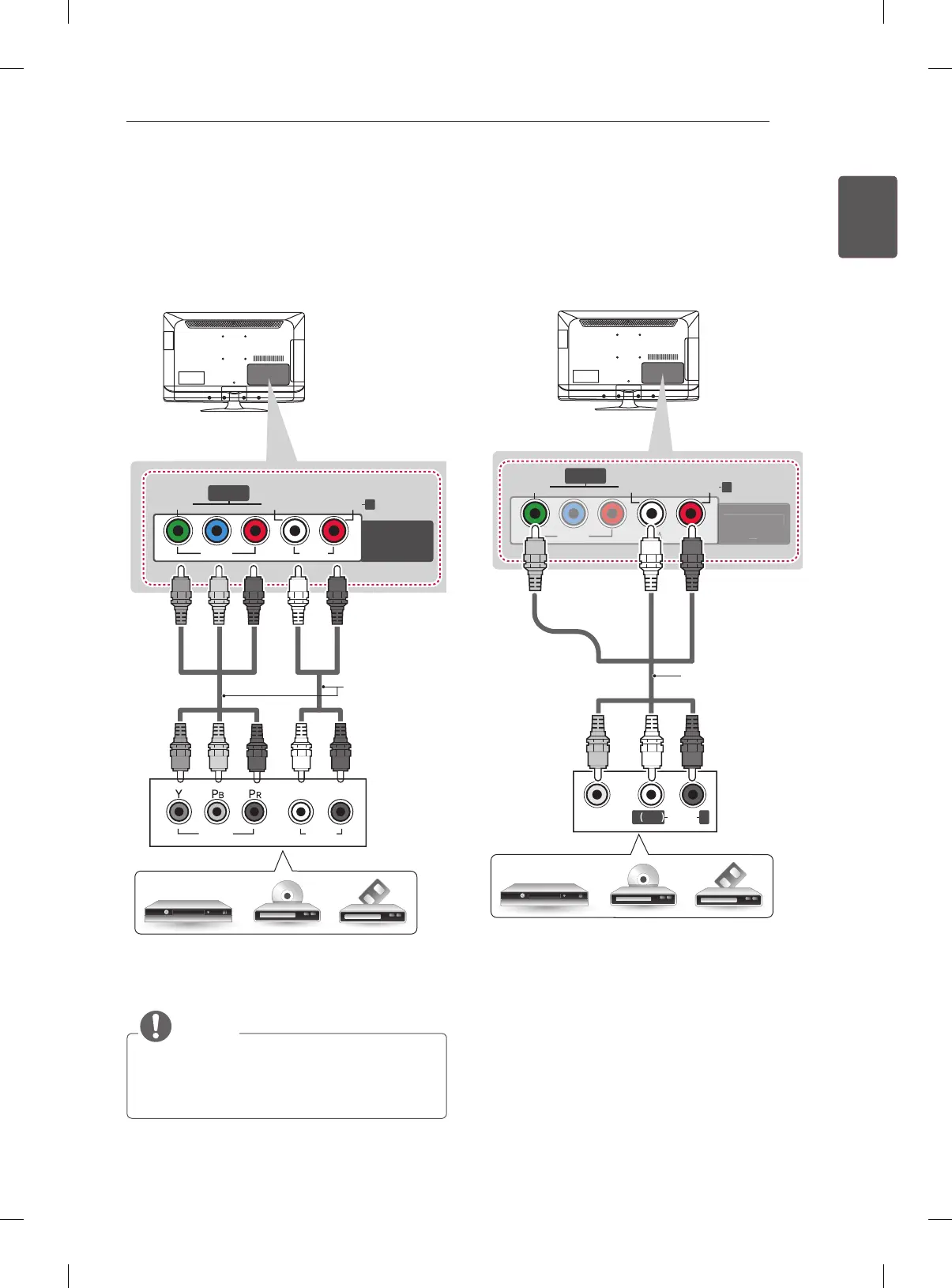

Component connection
Transmits analog video and audio signals from an
external device to the TV. Connect the external
device and the TV with a component cable as
shown.
COMPONENT
IN
VIDEO
Y L RP
B
P R
AUDIO
VIDEO
L/MONO
AUDIO
R
AV IN
AUDIO
VIDEO
L R
RED
RED
BLUE
BLUE
GREEN
GREEN
RED
RED WHITE
WHITE
DVD / Blu-Ray / HD Cable Box
(*Not Provided)
NOTE

If cables are installed incorrectly, it could
case the image to display in black and white
or with distorted colour.
Composite connection
Transmits analog video and audio signals from an
external device to the TV. Connect the external
device and the TV with th e composite cable as
shown.
VIDEO
MONO
( )
AUDIOL R
CO
MP
O
NEN
T
IN
V
IDE
O
Y
L
R
P
B
P
R
A
UDI
O
VIDEO
L/MONO
AUDIO
R
AV IN
RED
RED
WHITE
WHITE
YELLOW
YELLOW
VCR / DVD / Blu-Ray / HD Cable Box
(*Not Provided)
