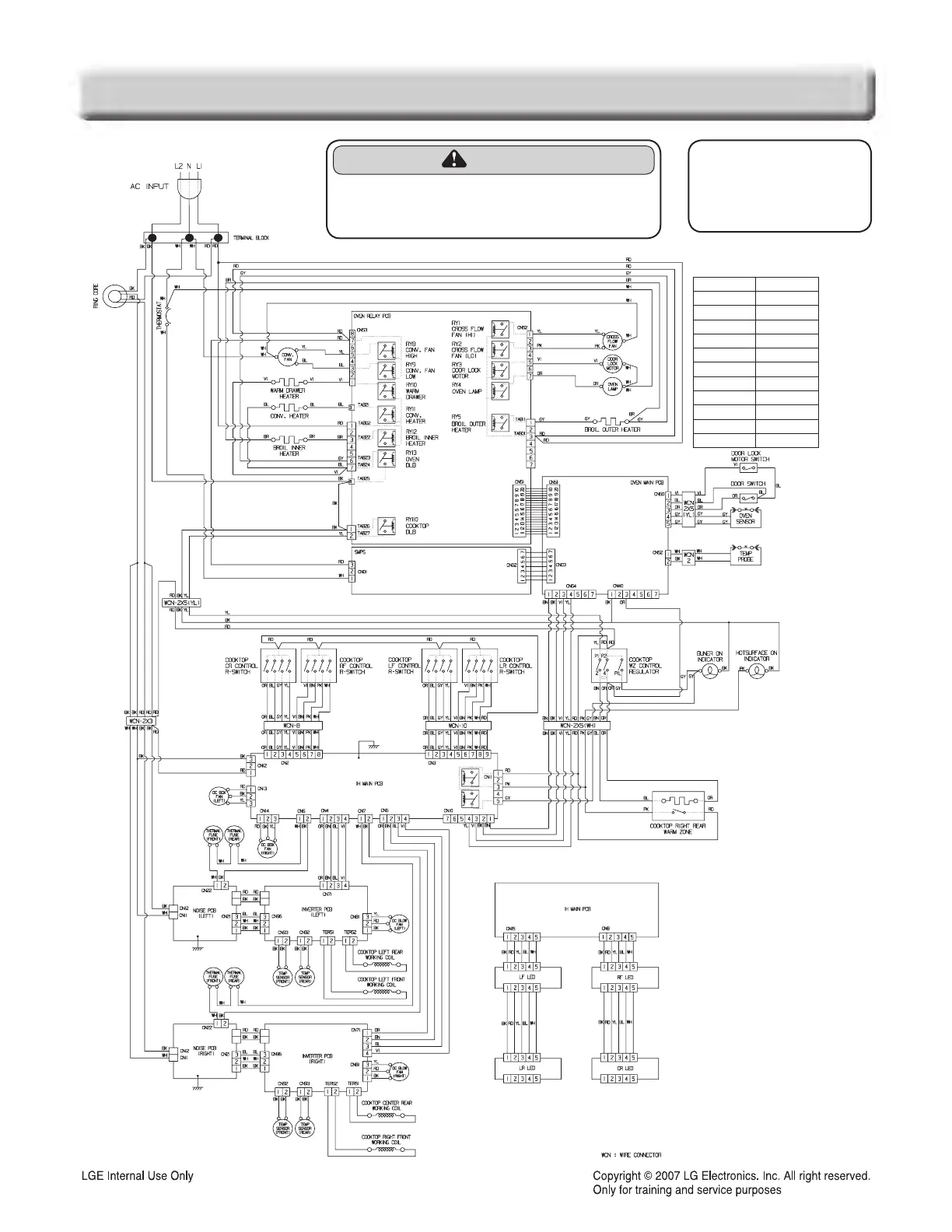

SCHEMATIC DIAGRAM
WIRE COLORS
SYMBOLCOLOR
WH WHITE
BK BLACK
RD RED
YL YELLOW
PK PINK
BL BLUE
BR BROWN
GN GREEN
GY GRAY
OR ORANGE
VI VIOLET
WARNING
POWER MUST BE DISCONNECTED BEFORE
SERVICING THE APPLIANCE. FAILURE TO DO SO
CAN RESULT IN DEATH OR ELECTRICAL SHOCK.
NOTE:
Schematic diagram shows
oven door opened and
unlocked.All elements are
set to “OFF”.

LG LSE4617ST Specifications

General

Style	single oven, slide-in
Color	stainless steel
Total Capacity	6.3 cubic feet
Options	bake, speed broil, broil, convection bake, convection roast, speed roast, warm, proof, delay bake option, delay clean option, time bake, timer
Cooking Programs	bake, broil, convection, proof, roast
Convection	single-fan with heating element
Induction	yes
Number of Burners / Elements	5
Number of Oven Racks	3
Number of Oven Rack Positions	7
Control Type	knob, touchpad
Interior Light	yes
Child Lock	yes
Smart Home	true, amazon alexa, google assistant
Wi-Fi	wi-fi
Fuel	electric
Voltage	208 volts
Current	40 amperes

Weight and Dimensions

Depth	28 15/16 inches
Height	37 7/8 inches
Width	30 inches
Net Weight	185 pounds
