EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
HD RECEIVER SETUP
When connecting with a component cable
■ To avoid damaging any equipment, never plug in any power cords until you have finished connecting
all equipment.
■ The image shown may be somewhat different from your set.

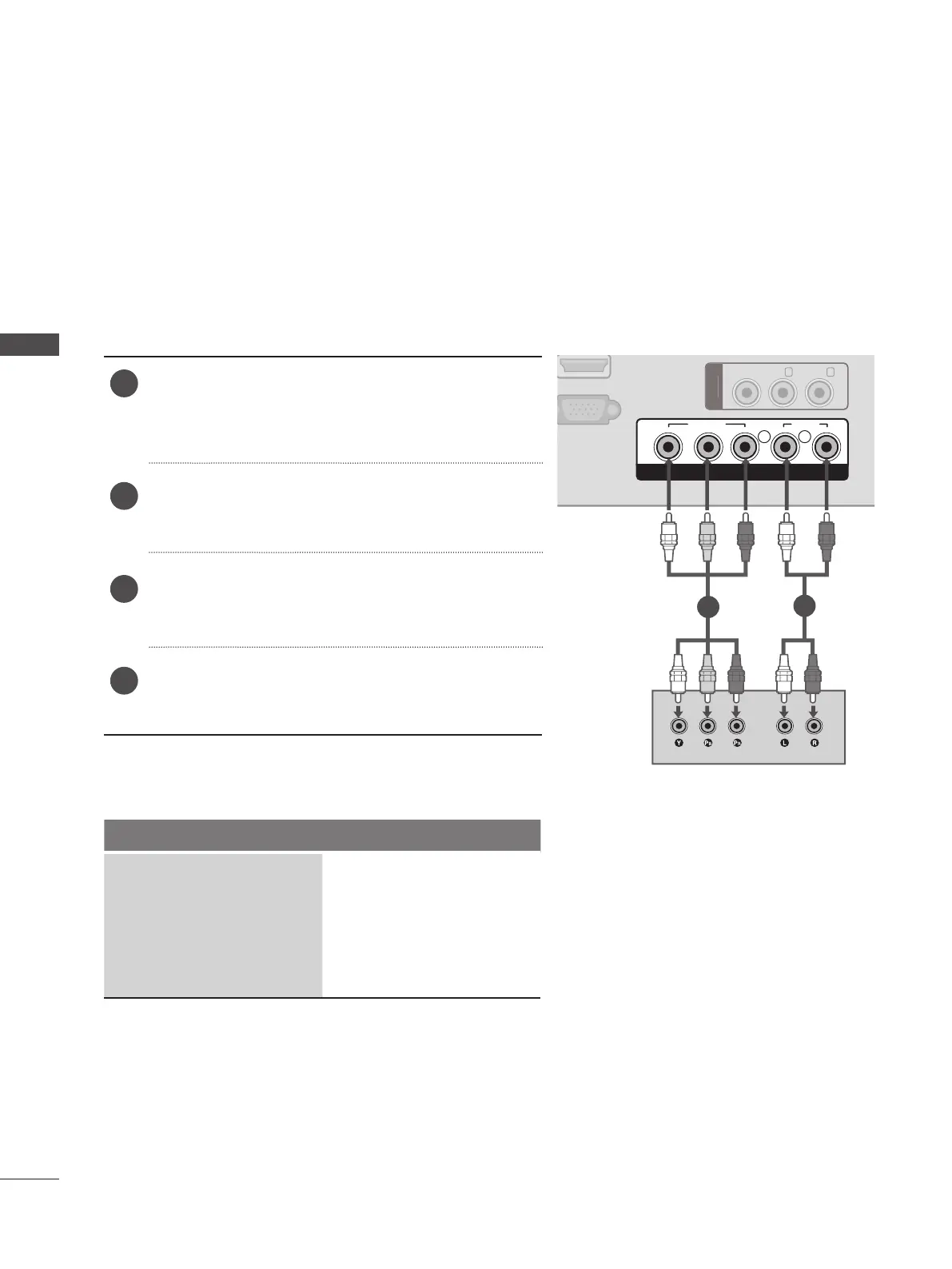

Connect the video outputs (Y, PB, PR) of the digital
set-top box to the COMPONENT IN VIDEO jacks on
the set.
Connect the audio output of the digital set-top box
to the COMPONENT IN AUDIO jacks on the set.
Turn on the digital set-top box. (Refer to the owner’s
manual for the digital set-top box.)
Select COMPONENT input source using the INPUT
button on the remote control.
1
2
3
4
Signal Component
480i / 576i O
480p / 576p O
720p O
1080i / 1080p O
A
U
DI
O
IN
(
