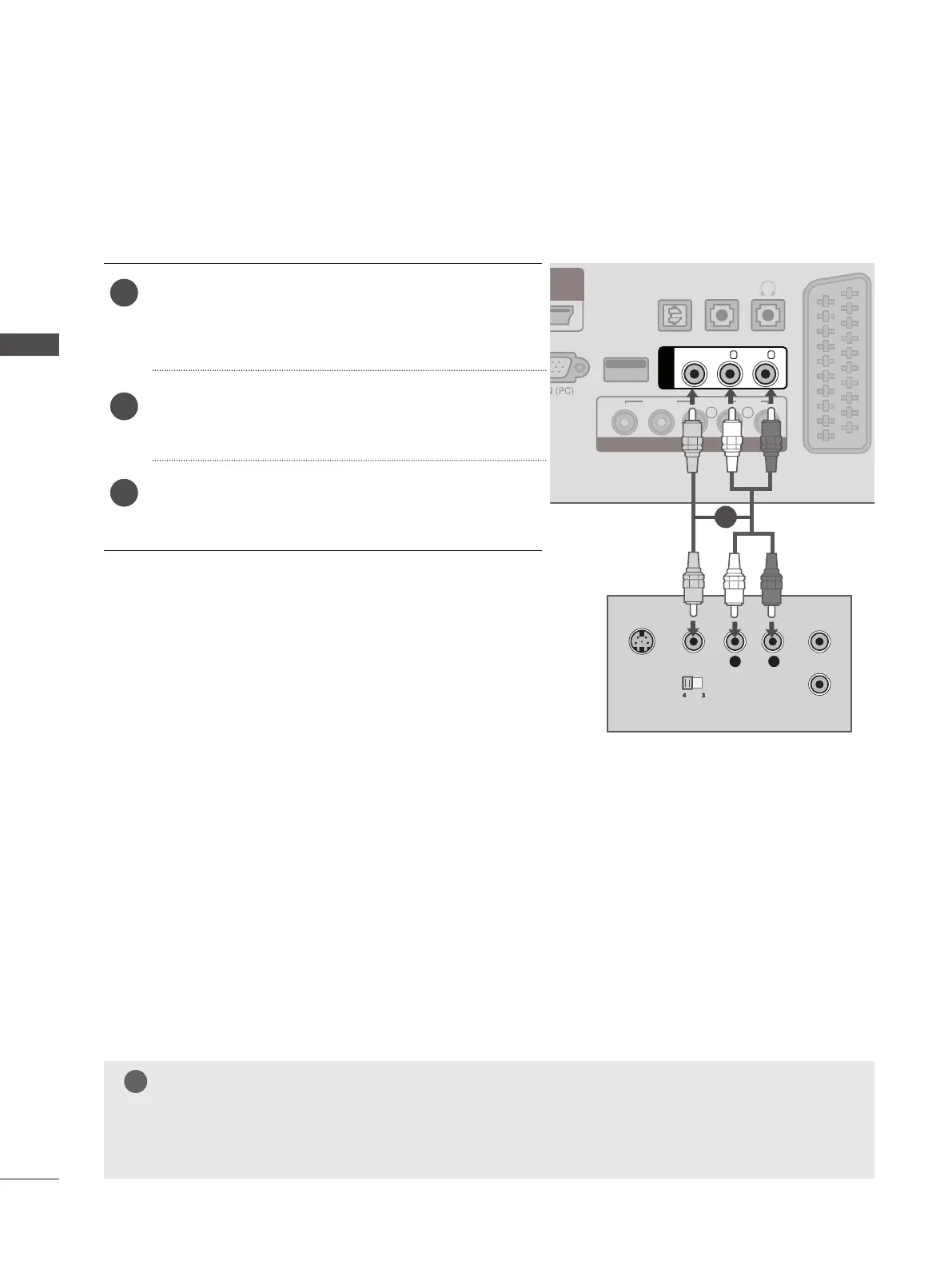

Connecting with a RCA cable
Connect the AUDIO/VIDEO jacks between SET and
VCR. Match the jack colours (Video = yellow, Audio
Left = white, and Audio Right = red)
Insert a video tape into the VCR and press PLAY on
the VCR. (Refer to the VCR owner’s manual.)
Select AV2 input source using the INPUT button on
the remote control.
1
2
3
1
NOTE
►If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L / MONO jack of
the SET.
!
