APPENDIX
EXTERNAL CONTROL DEVICE SETUP

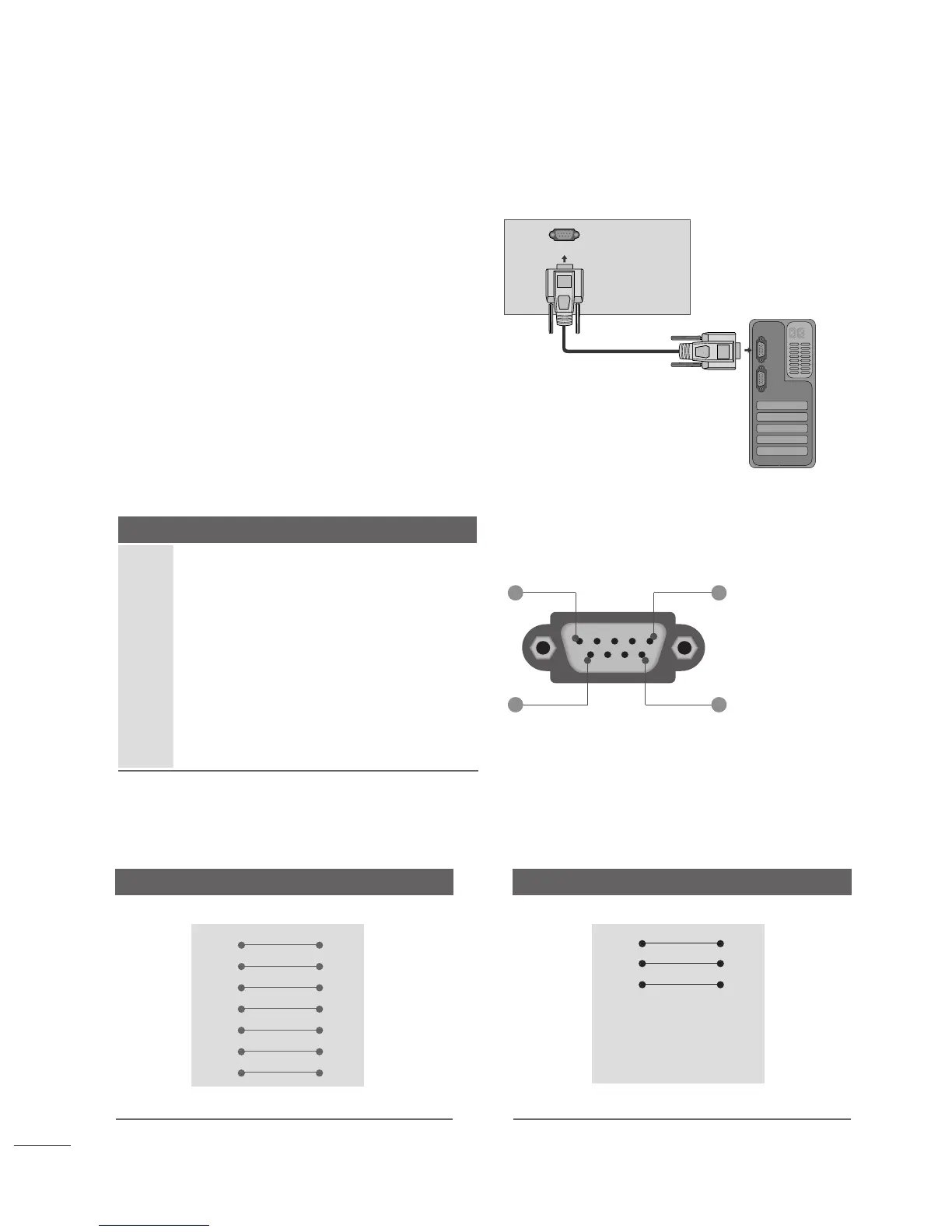

RS-232C Setup
Connect the RS-232C (serial port) input jack to an exter-
nal control device (such as a computer or an A/V control
system) to control the product’s functions externally.
Connect the serial port of the control device to the RS-
232C jack on the product back panel.
Note: RS-232C connection cables are not supplied with
the product.
Type of Connector; D-Sub 9-Pin Male
No. Pin Name
1 No connection
2 RXD
(
Receive data
)
3 TXD
(
Transmit data
)
4 DTR
(
DTE side ready
)
5 GND
6 DSR
(
DCE side ready
)
7 RTS
(
Ready to send
)
8 CTS
(
Clear to send
)
9 No Connection
RS-232C IN
(CONTROL & SERVICE)
1 5
6 9
RS-232C Configurations
7-Wire Configurations
(
Standard RS-232C cable
)
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DSR
DSR 6 4 DTR
RTS 7 8 CTS
CTS 8 7 RTS
D-Sub 9 D-Sub 9
3-Wire Configurations
(
Not standard
)
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 7 RTS
CTS 8 8 CTS
D-Sub 9 D-Sub 9

LG M2362D Specifications

LCD Panel Specification

screen size	23” Class (23.0” diagonal)
resolution	1920 x 1080p
brightness	300 cd/m2 (Typical)
dynamic contrast ratio	50, 000:1
response time	5ms (Typical)
viewing angle	170º/160º
color supported	16.7M
aspect ratio	16:9
panel surface	Anti-Glare, 3H

Audio/Video Input/Outputs

hdmi	2
15 pin D-Sub	1
dvi-d	1
composite	1
scart	2
pc audio in	1
headphone out	1

Power

voltage, hz	100V ~ 240V, 56/75Hz
on mode power consumption	55W (Max)
standby mode power consumption	1W (Max)
off mode power consumption	0.5W (Max)

Dimensions & Weight

monitor with stand dimensions	21.7” x 16.5” x 8.7”
monitor without stand dimensions	21.7” x 14.9” x 2.6”
shipping dimensions	24.7” x 18.9” x 5.5”
monitor with stand weight	10.4 lbs
monitor without stand weight	9.7 lbs
shipping weight	13.7 lbs
