EXTERNAL EQUIPMENT SETUP
DVD SETUP

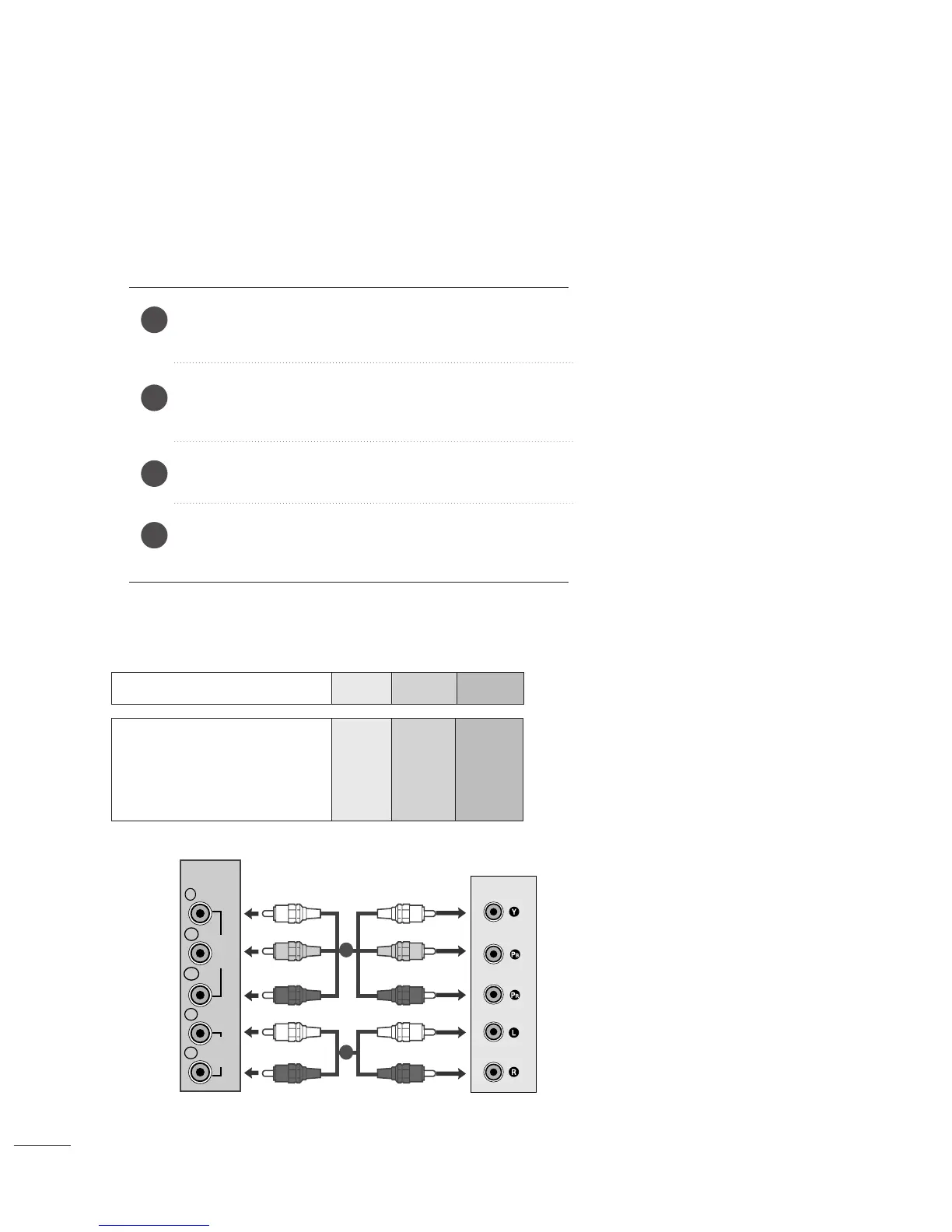

When connecting with a component cable
Component Input ports
To get better picture quality, connect a DVD player to the component input ports as shown below.
Component ports on the set
YP
B
P
R
Video output ports
on DVD player
Y
Y
Y
Y
P
B
B-Y
Cb
Pb
P
R
R-Y
Cr
Pr
Connect the video output sockets (Y P
B PR) of the DVD to
the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO
sockets (Y P
B PR) of the set.
Connect the audio cable from the DVD to
CCOOMMPPOONNEENNTT
IINN AAUUDDIIOO
sockets of the set.
Press the
IINNPPUUTT
button to select
CCoommppoonneenntt
.
Press the
PPLLAAYY
button on the DVD.
The DVD playback picture appears on the screen.
2
3
4
1
VIDEO
COMPONENT
IN
AUDIO
Y
P B
P R
L
R
1
2

LG M2362D Specifications

LCD Panel Specification

screen size	23” Class (23.0” diagonal)
resolution	1920 x 1080p
brightness	300 cd/m2 (Typical)
dynamic contrast ratio	50, 000:1
response time	5ms (Typical)
viewing angle	170º/160º
color supported	16.7M
aspect ratio	16:9
panel surface	Anti-Glare, 3H

Audio/Video Input/Outputs

hdmi	2
15 pin D-Sub	1
dvi-d	1
composite	1
scart	2
pc audio in	1
headphone out	1

Power

voltage, hz	100V ~ 240V, 56/75Hz
on mode power consumption	55W (Max)
standby mode power consumption	1W (Max)
off mode power consumption	0.5W (Max)

Dimensions & Weight

monitor with stand dimensions	21.7” x 16.5” x 8.7”
monitor without stand dimensions	21.7” x 14.9” x 2.6”
shipping dimensions	24.7” x 18.9” x 5.5”
monitor with stand weight	10.4 lbs
monitor without stand weight	9.7 lbs
shipping weight	13.7 lbs
