Connecting 15
Connecting
2

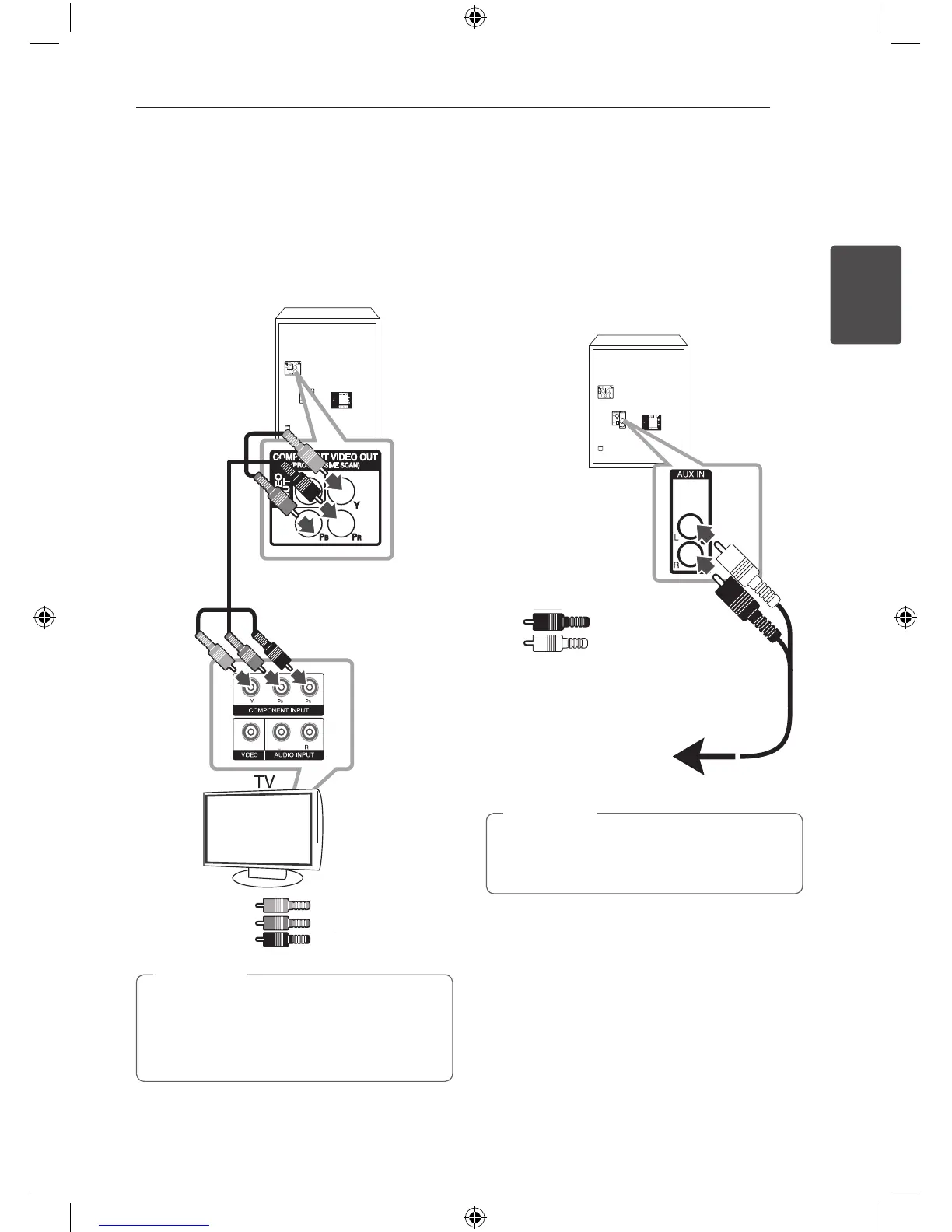

Component Video Connection
Connect the COMPONENT VIDEO OUT
(PROGRESSIVE SCAN) jacks on the unit to the
corresponding input jacks on the TV using
component cables.
You can hear the sound through the system’s
speakers.
Green
Blue
Red
Green
Blue
Red
If your TV accepts progressive format signals,
you must use this connection and set
[Progressive Scan] in [Display] setup to [On]
(See page 18).
,
Note
Optional Equipment
Connection
AUX In Connection
Connect an Output of auxiliary device to the AUX
(L/R) IN Connector.
Red
White
Red
White
To the audio output jacks
of your component
(TV, VCR, etc.)
If your TV has only one output for audio
(mono), connect it to the left (white) audio jack
on the unit.
,
Note
