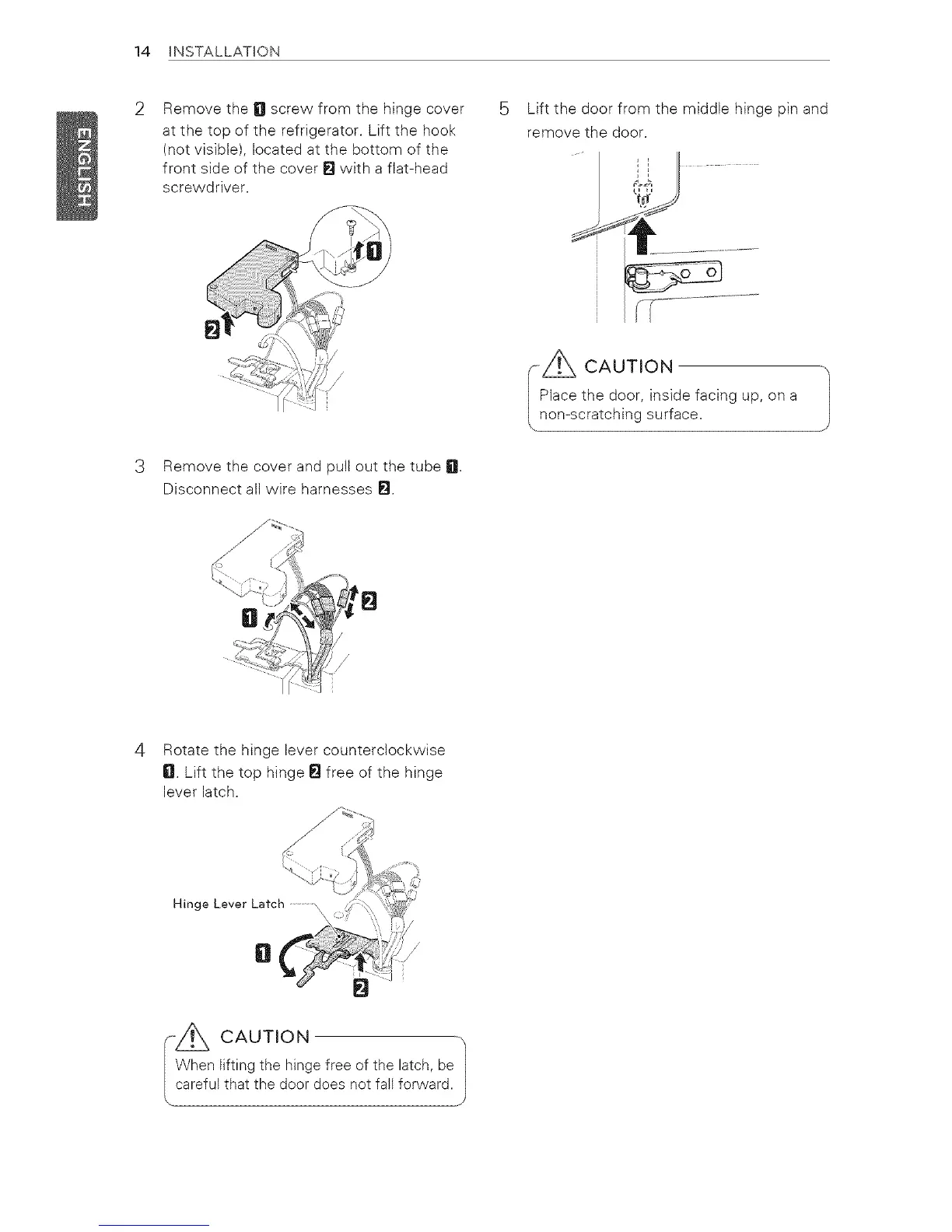

14 INSTALLATION
2
Remove the D screw from the hinge cover
at the top of the refrigerator. Lift the hook
(not visible), located at the bottom of the
front side of the cover _ with a flat-head
screwdriver,
5 Lift the door from the middle hinge pin and
remove the door.
3
Remove the cover and pull out the tube D.
Disconnect all wire harnesses _.
Place the door, inside facing up, on a
non-scratching surface.
)
4 Rotate the hinge lever counterclockwise
D. Lift the top hinge _ free of the hinge
lever latch.
Hinge Lever Latch ................\\\
D ,,
Z_h CAUTION ....
en lifting the hinge free of the latch, be
forward.
_ careful that the door does not fall
