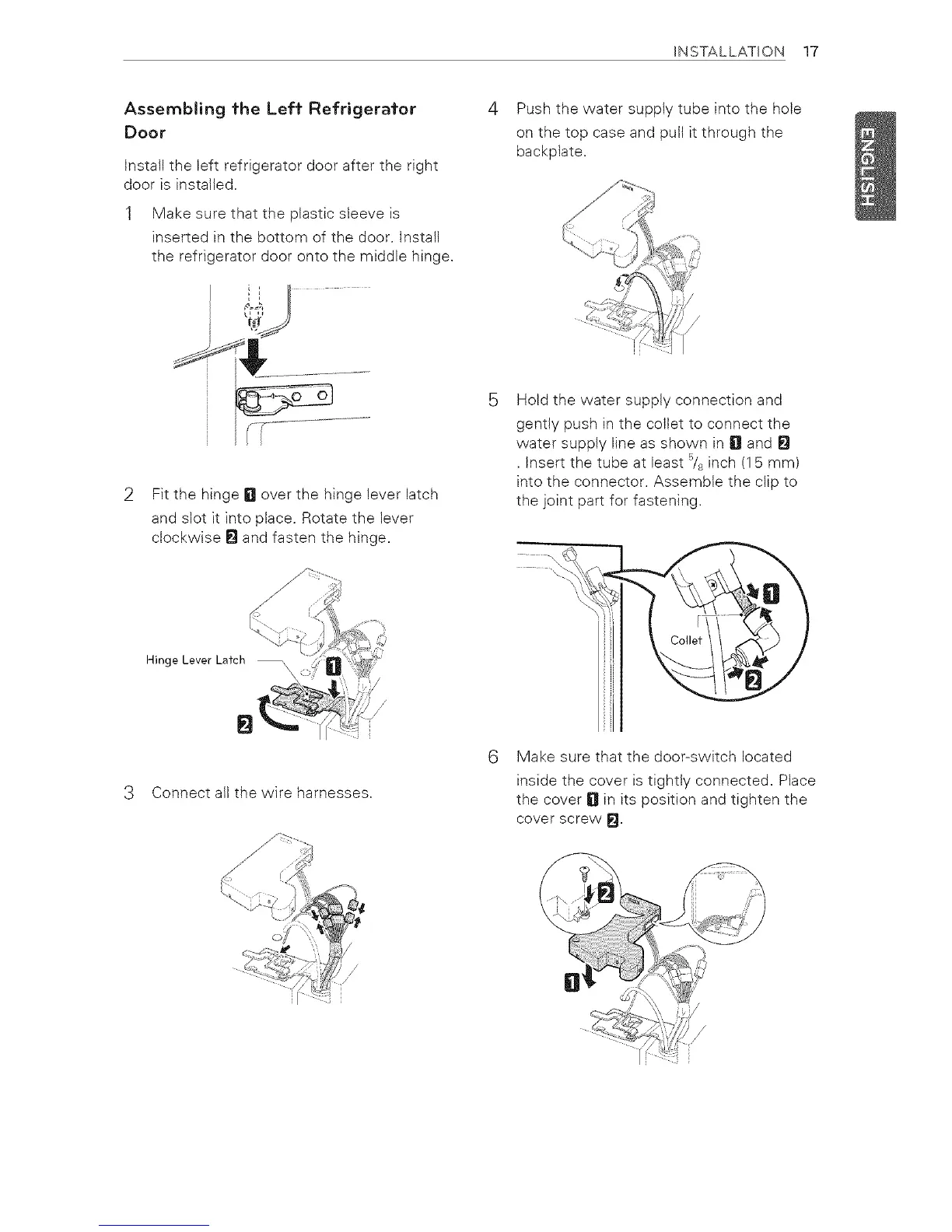

INSTALLATION 17
Assembling "the Left Refrigerator
Door
Install the left refrigerator door after the right
door is installed.
1 Make sure that the plastic sleeve is
inserted in the bottom of the door. Install
the refrigerator door onto the middle hinge.
4
Push the water supply tube into the hole
on the top case and pull it through the
backptate.
Fit the hinge D over the hinge lever latch
and slot it into place. Rotate the lever
clockwise _ and fasten the hinge.
Hinge Lever Latch
/
3 Connect all the wire harnesses•
Hold the water supply connection and
gently push in the coitet to connect the
water supply line as shown in D and
• insert the tube at least 5/sinch (15 mm)
into the connector• Assemble the clip to
the joint part for fastening•
6 Make sure that the door-switch located
inside the cover is tightly connected• Place
the cover j] in its position and tighten the
cover screw _.
