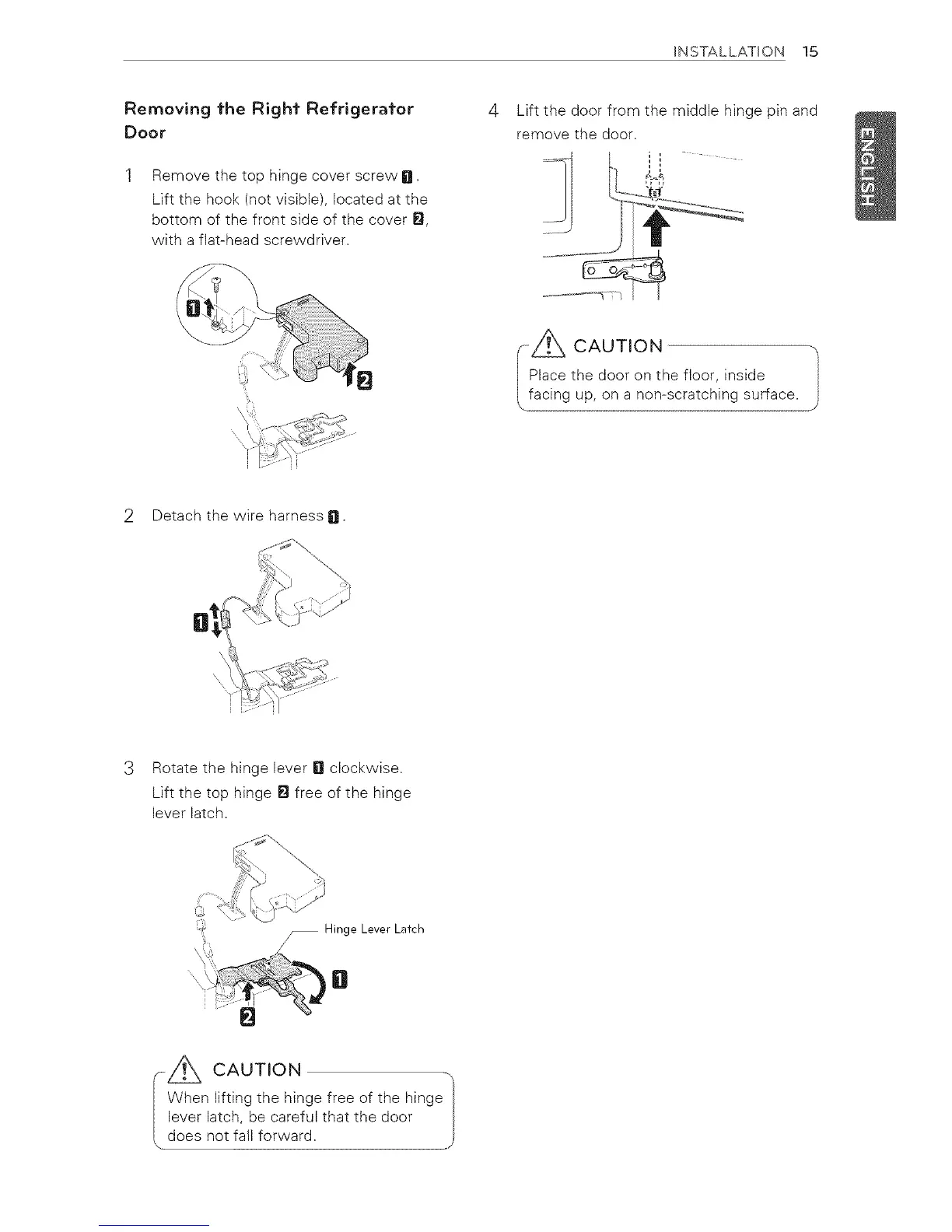

INSTALLATION 15
Removing the Right Refrigerator
Door
Remove the top hinge cover screw Jl.
Lift the hook (not visible), located at the
bottom of the front side of the cover [],
with a flat-head screwdriver.
4
Lift the door from the middle hinge pin and
remove the door.
.....Z_ CAUTION
Place the door on the floor, inside
facing up, on a non-scratching surface.
2 Detach the wire harness I[!.
3 Rotate the hinge lever mlclockwise.
Lift the top hinge [] free of the hinge
lever latch.
Hinge Lever Latch
D
Z_ CAUTION
When lifting the hinge free of the hinge
lever latch, be careful that the door
J
does not fan forward.
To Next Page
