16 INSTALLATION

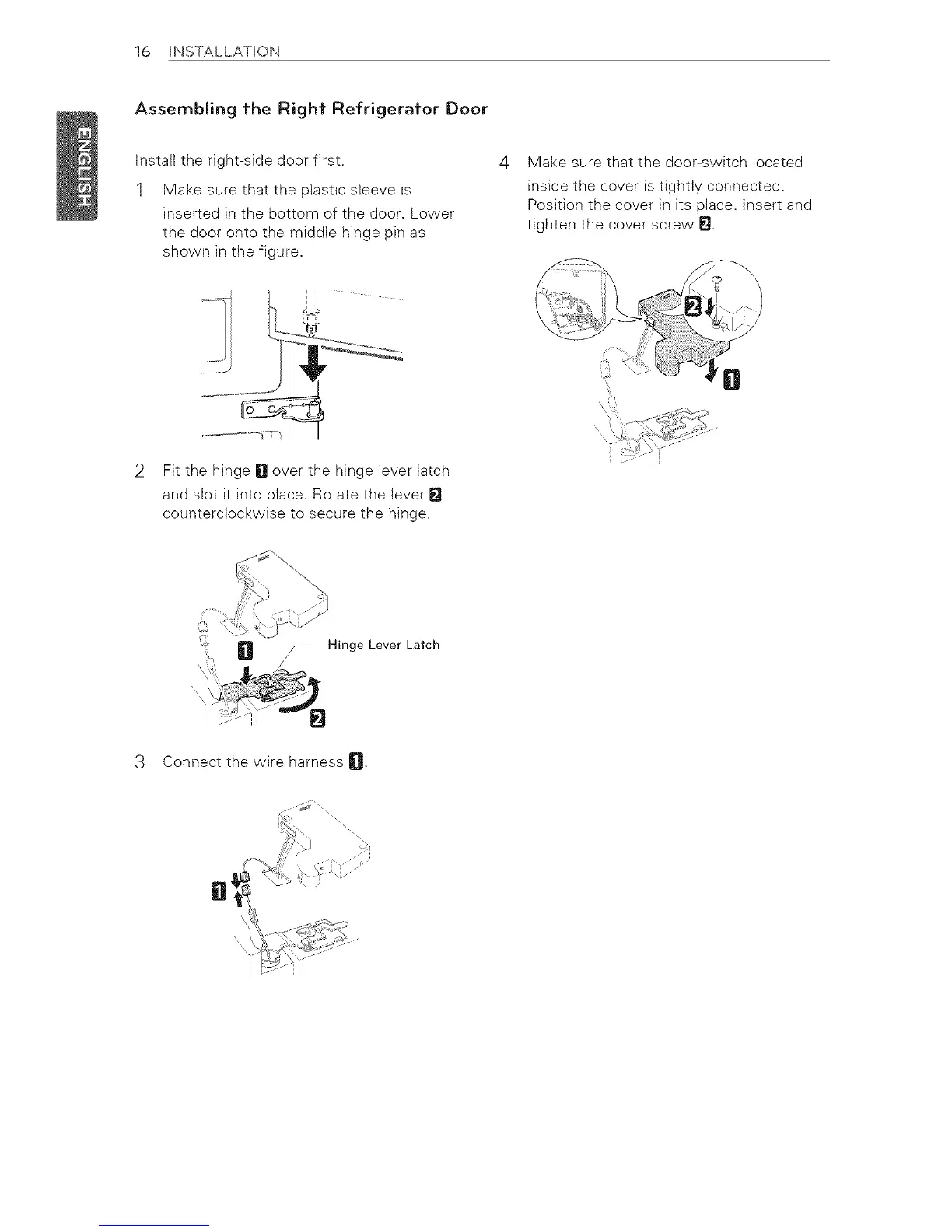

Assembling "the Right Refrigerator Door
Install the right-side door first.
1 Make sure that the plastic sleeve is
inserted in the bottom of the door. Lower
the door onto the middle hinge pin as
shown in the figure.
4 Make sure that the door-switch located
inside the cover is tightly connected.
Position the cover in its place. Insert and
tighten the cover screw _.
2
Fit the hinge D over the hinge lever latch
and slot it into place. Rotate the lever
counterclockwise to secure the hinge.
3 Connect the wire harness D.
D
To Next Page
