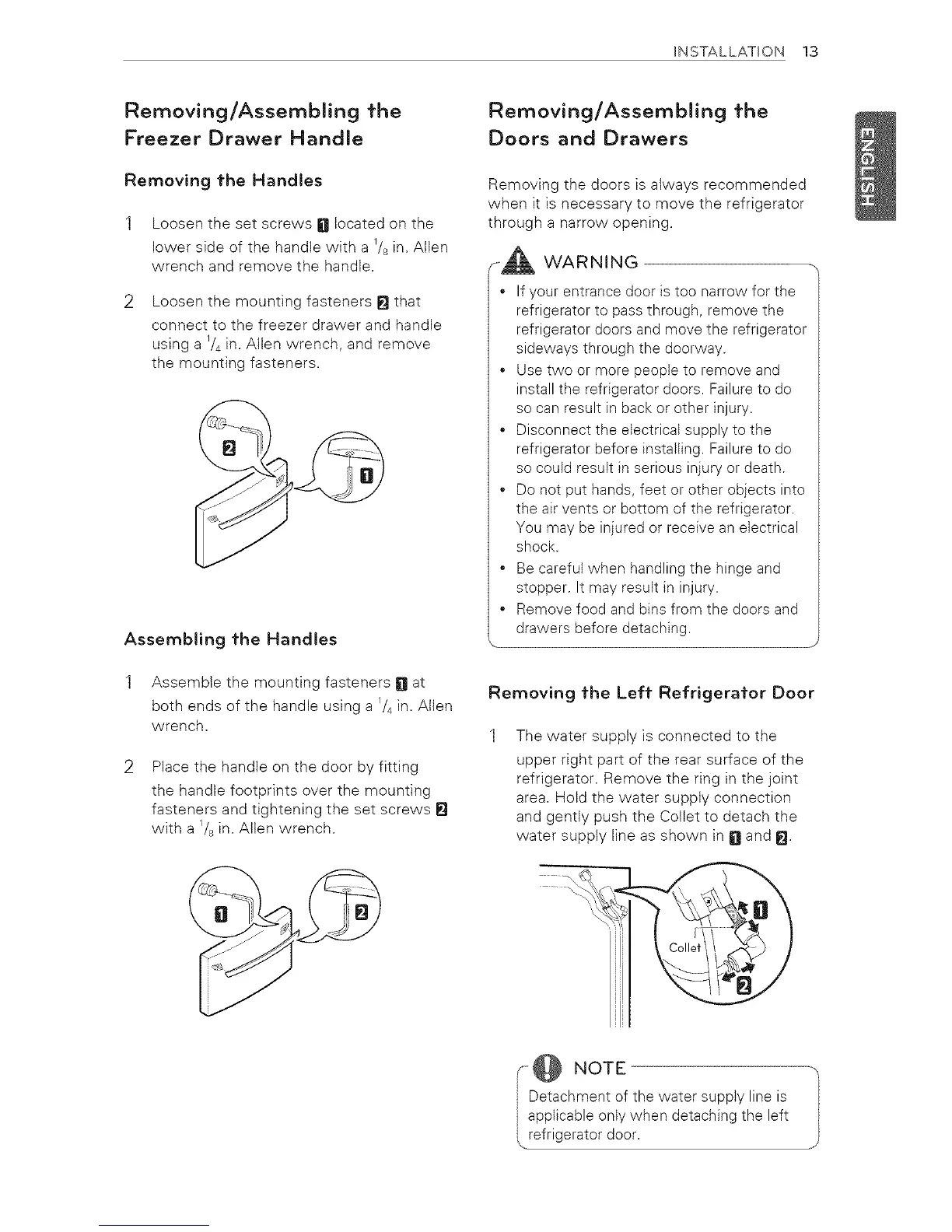

INSTALLATION 13
Removing/Assembling the
Freezer Drawer Handle
Removing the Handles
1 Loosen the set screws D located on the
lower side of the handle with a 1/sin. Atlen
wrench and remove the handle.
Loosen the mounting fasteners _ that
connect to the freezer drawer and handle
using a//4 in. Allen wrench, and remove
the mounting fasteners.
Assembling the Handles
1 Assemble the mounting fasteners D at
both ends of the handle using a//4 in. Atlen
wrench.
Place the handle on the door by fitting
the handle footprints over the mounting
fasteners and tightening the set screws _1
with a//g in. Allen wrench.
Removing/Assembling the
Doors and Drawers
Removing the doors is always recommended
when it is necessary to move the refrigerator
through a narrow opening.
F_ WARNING
• If your entrance door is too narrow for the
refrigerator to pass through, remove the
refrigerator doors and move the refrigerator
sideways through the doorway.
• Use two or more people to remove and
install the refrigerator doors, Failure to do
so can result in back or other injury.
• Disconnect the electrical supply to the
refrigerator before installing. Failure to do
so could result in serious injury or death.
• Do net put hands, feet or other objects into
the air vents or bottom of the refrigerator.
You may be injured or receive an electrical
shock.
• Be careful when handling the hinge and
stopper. It may result in injury.
• Remove food and bins from the doors and
drawers before detaching.
Removing the Left Refrigerator Door
The water supply is connected to the
upper right part of the rear surface of the
refrigerator. Remove the ring in the joint
area. Hold the water supply connection
and gently push the Collet to detach the
water supply line as shown in li_and El.
"@ NOTE
Detachment of the water supply line is
applicable only when detaching the left
refrigerator door.
