LG MULTI F Series - Wiring Diagrams

MULTI F OUTDOOR UNIT
Wiring Diagram

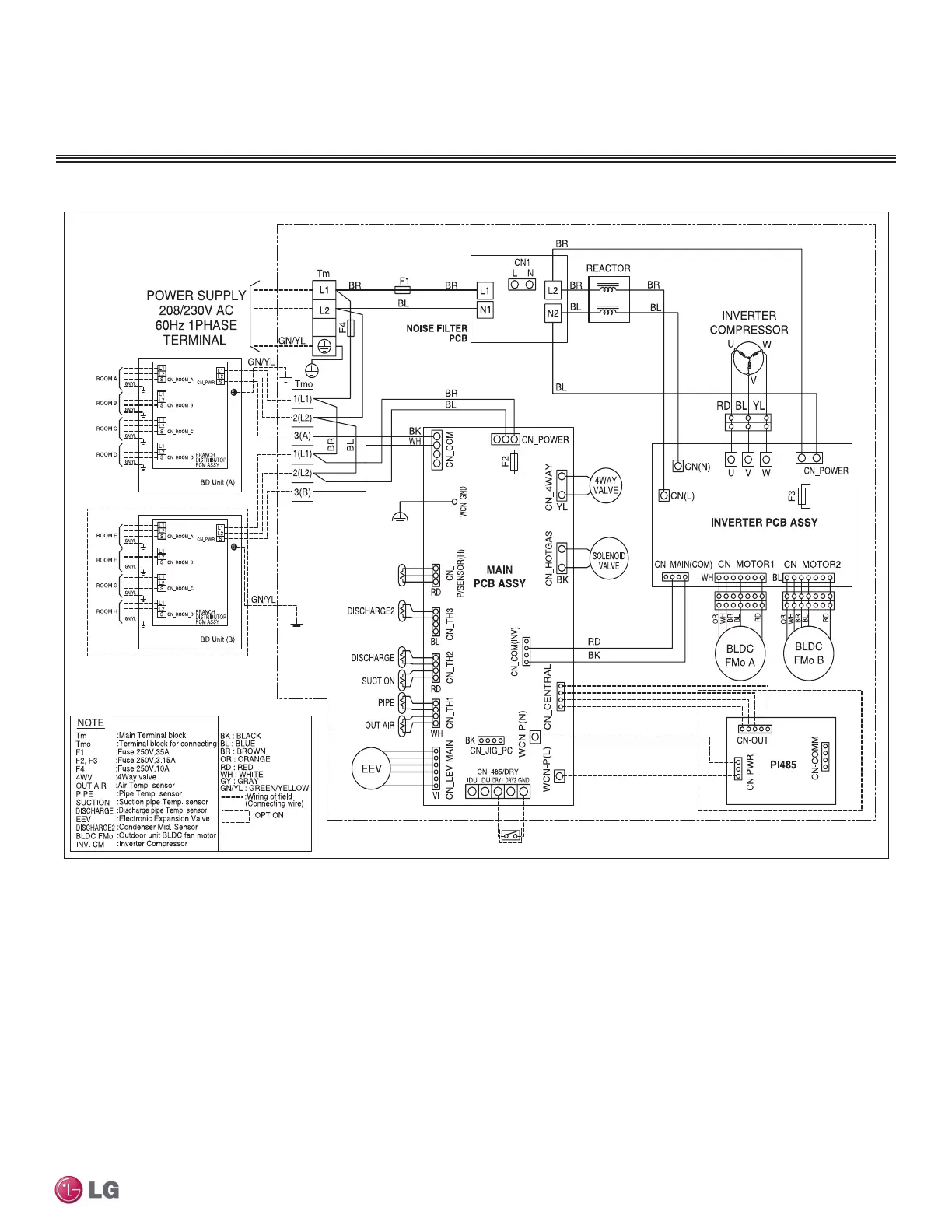

Figure 24: LMU540HV Wiring Diagram.
MULTI F MAX OUTDOOR UNIT | 329
