LG MULTI F Series - Wiring Diagram

PMBD3620 BD Unit supplied with "A, B".
PMBD3630 BD Unit supplied with "A, B, C".
PMBD3640 and PMBD3641 BD Units supplied with "A, B, C, D".
MULTI F MAX BD UNIT
Wiring Diagram

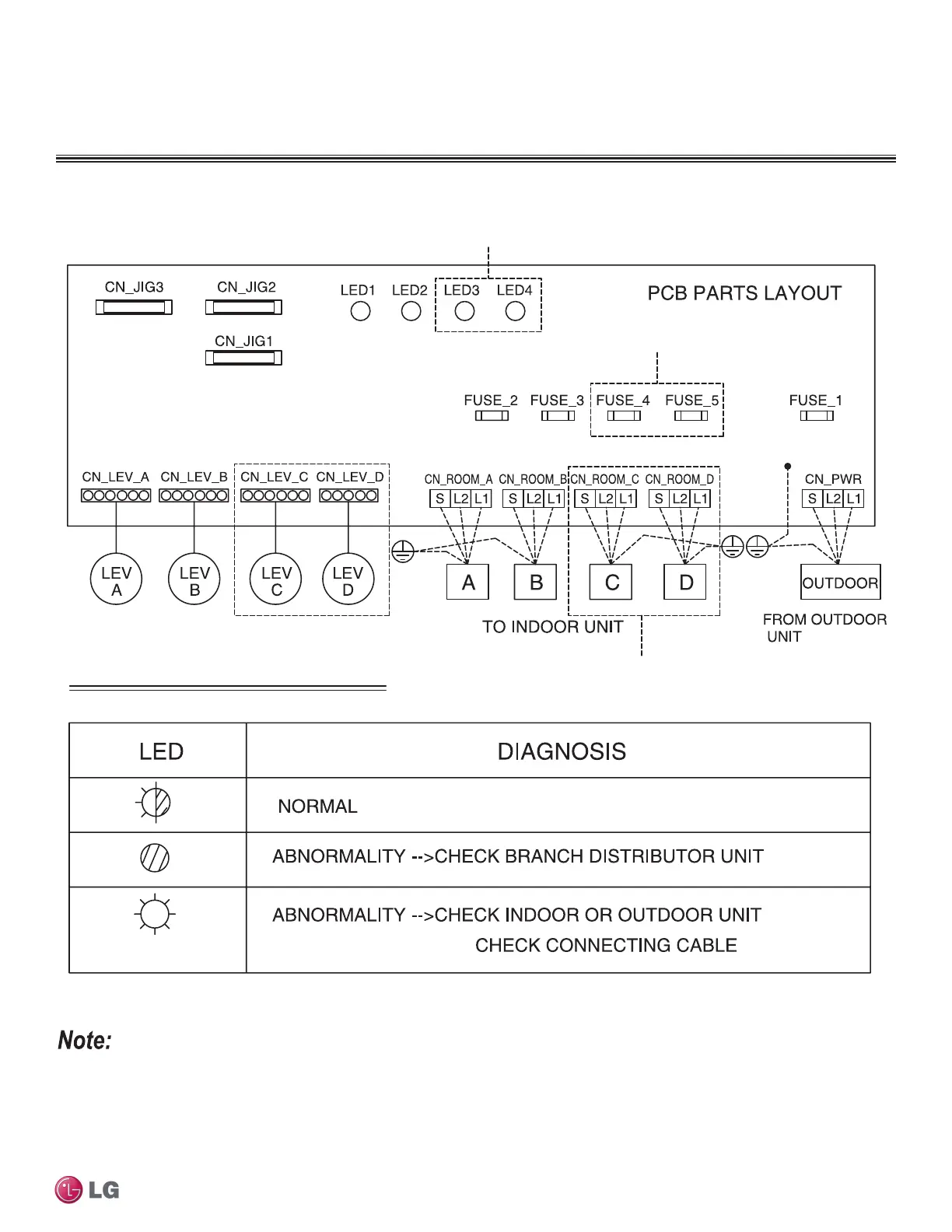

Figure 32:PMBD3620, PMBD3630, PMBD3640, PMBD3641 Wiring Diagram.
Troubleshooting
Model Dependant
Model Dependant
Model Dependant
Model Dependant
BD UNIT | 337
Branch Distribution (BD) Unit Data
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
