• Secure the separate wires in the control box panel using zip ties.
• Secure wiring with accessory clamps so that it does not touch piping.
• Use a conduit for the cable
• Outside the unit, make sure the communications cable and the power wiring are separately shielded, otherwise, the outdoor unit
operation may be affected by electrical noise and will malfunction or fail.
Power Supply
Circuit Breaker
Indoor Unit
BD Unit
BD Unit
Ground Wiring
Outdoor Unit
Outdoor Unit
Indoor Units
Power Supply
Circuit Breaker
Ground Wiring

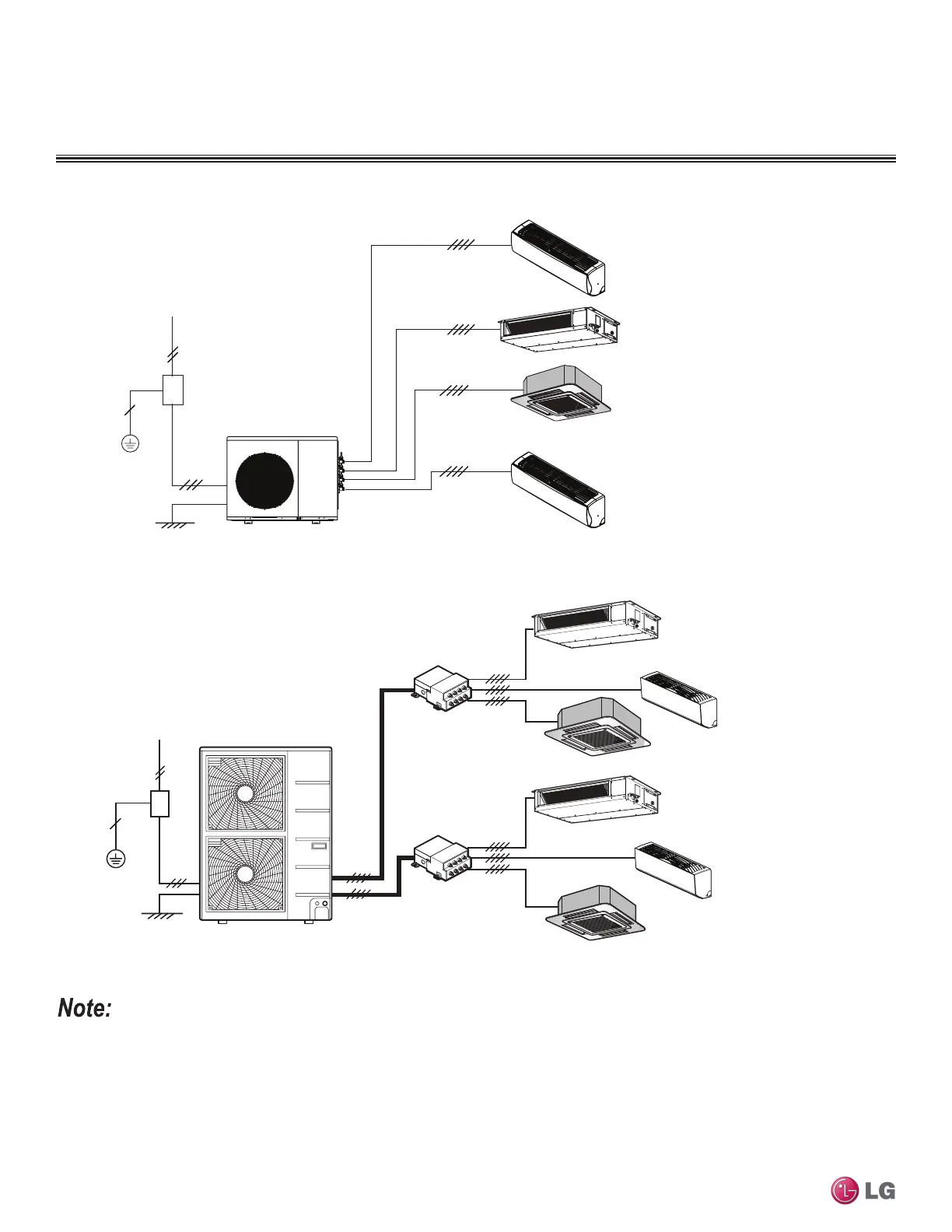

Figure 96:Multi F System General Power / Communications System
Schematic.
Figure 97:Multi F MAX System General Power / Communications System Schematic.
General Information
WIRING CONNECTIONS
