WIRING CONNECTIONS

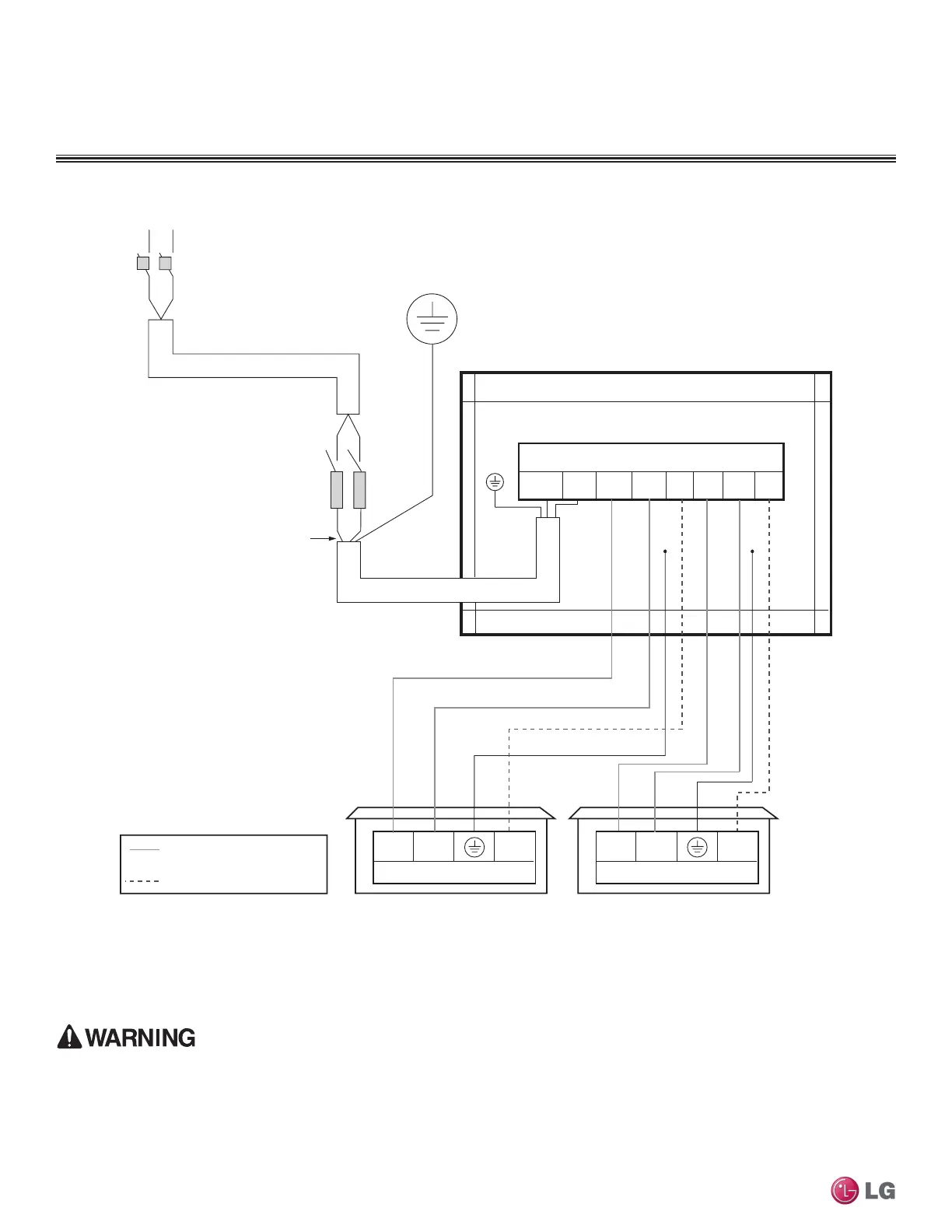

Figure 99: Multi F LMU18CHV System Power Wiring and Communications Cable.
Outdoor Unit
L1 L2 1(L1) 2(L2) 3(A) 3(B)
Outdoor Unit Terminal Block
L1
L2
G
Power Supply
Main Switch
Circuit Breaker
Fuse
Three-wire Power Wiring
(Including Ground)
COMMUNICATION CABLE
POWER WIRING
1(L1) 2(L2)
Indoor Unit Terminal Block
Unit A Unit B
3
1(L1) 2(L2) 3
Indoor Unit Terminal Block
G
1(L1) 2(L2)
• All field-supplied wiring, components, and materials should follow national, state, and local codes and requirements.
• Use only stranded, shielded copper conductor.
• Ground wiring is required to prevent accidental electrical shock during current leakage, communication problems from electrical
noise, and motor current leakage. Do not connect the ground line to the pipes.
• Install a main shutoff switch or circuit breaker that interrupts all power sources simultaneously.
• Wiring cable size must comply with applicable national, state, and local codes.
Power Wiring (208-230V) and Communications Cable Details
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
386 | WIRING CONNECTIONS
Multi F and Multi F MAX Indoor Unit Engineering Manual
