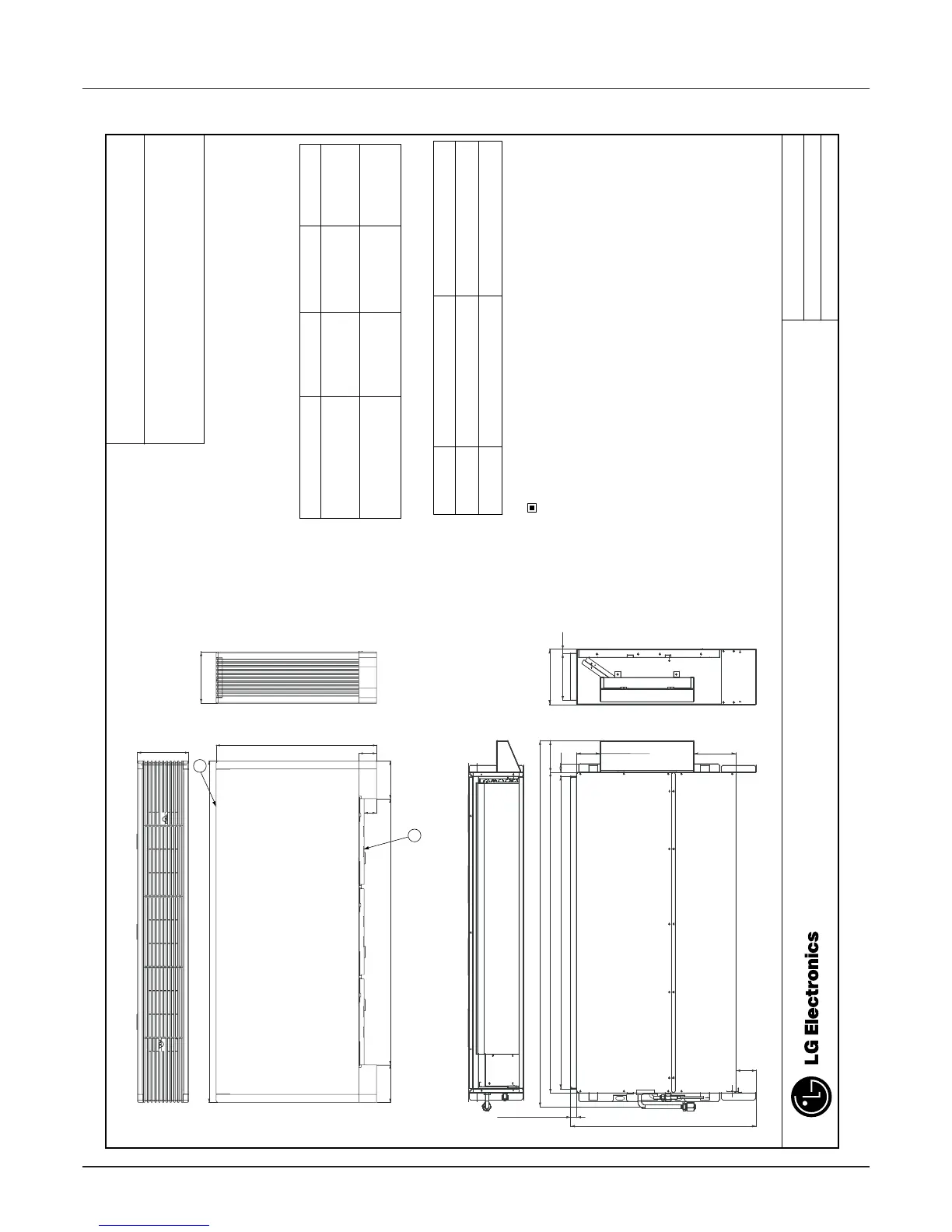

Dimensions
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea www.lgeaircon.com
CHASSIS CODE: CF
Floor Standing
ARNU183CFA2 ARNU243CFA2
ARNU183CFU2 ARNU243CFU2
Note
1. Unit should be installed in compliance with the installation manual in the product box. 2. Unit shall be grounded in accordance with the local regulations or applicable national codes.
1
2
<With Case>
<Without Case>
203
(7-15/16)
1345(52-15/16)
635(25)
70(2-3/4)
148.3
(5-13/16)
1048.4(41-1/4)
49.5(1-15/16)
148.3
(5-13/16)
190(7-7/16)
161(6-5/16)
14(1/2)
1256(49-7/16
1098(43-1/4)
1072(42-3/16)
109.8(4-5/16)
30(1-3/16)
81.4(3-3/16)
145
(5-11/16)
70
(2-3/4)
21.4(1-3/16)
639(31-1/4)
WModel
ARNU183CFA2 ARNU243CFA2
HD
1345
(52-15/16)
635
(25)
203
(7-15/16)
ARNU183CFU2 ARNU243CFU2
1256
(49-7/16)
639
(31-1/4)
190
(7-7/16)
[Unit : mm(inch)]
203(7-15/16)
LG Electronics USA, HVAC Division 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 www.lgusa.com / www.lghvac.com
Name
1
Air discharge grill
2
Air suction grill
Number Descripition
(unit : mm)
