Dimensions

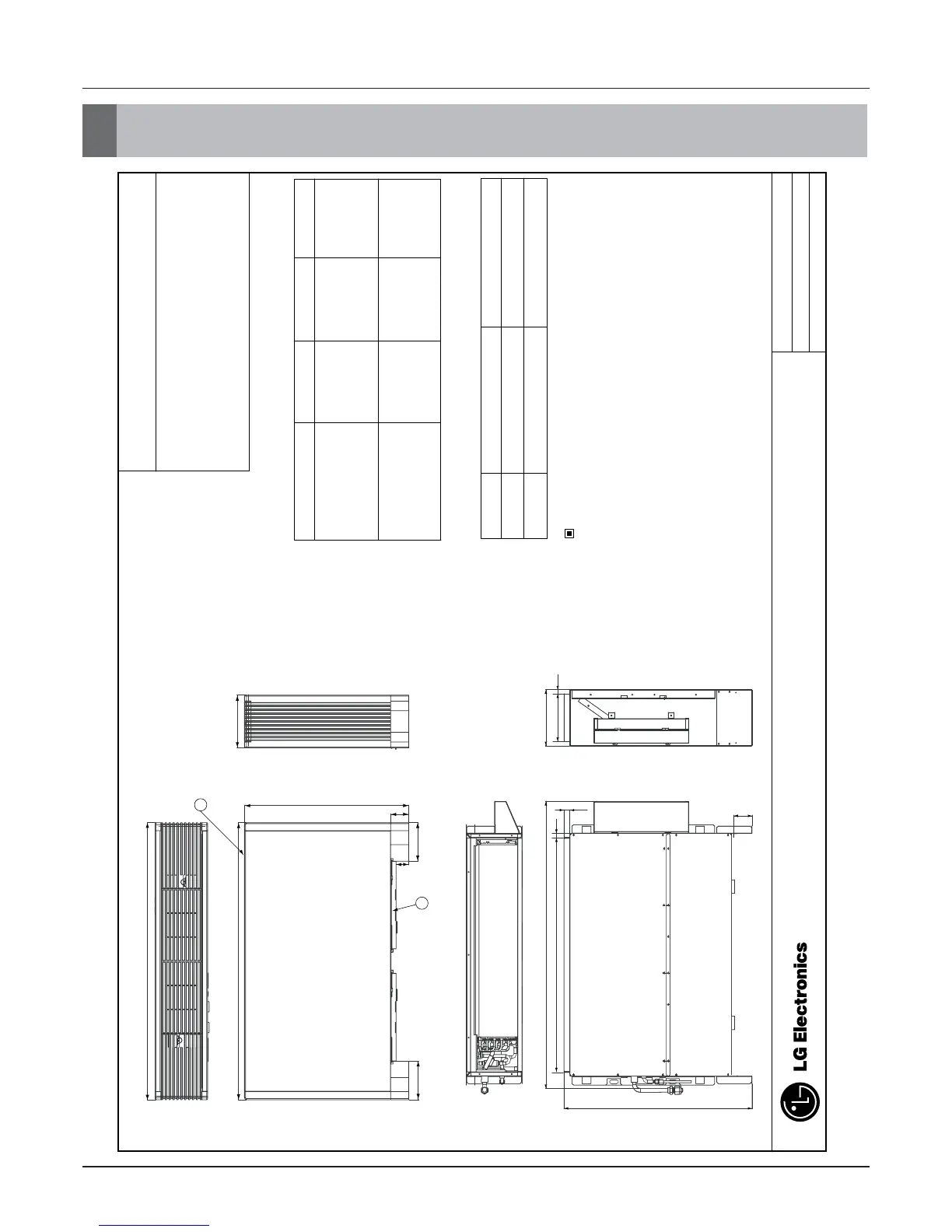

3. Dimensions
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea www.lgeaircon.com
CHASSIS CODE: CE
Floor Standing
ARNU073CEA2 ARNU093CEA2 ARNU123CEA2 ARNU153CEA2
ARNU073CEU2 ARNU093CEU2 ARNU123CEU2 ARNU153CEU2
Note
1. Unit should be installed in compliance with the installation manual in the product box. 2. Unit shall be grounded in accordance with the local regulations or applicable national codes.
<With Case>
<Without Case>
1067(42) 1067(42)
148.3
(5-13/16)
148.3
(5-13/16)
49(15/16)
70(2-3/4)
635(25)
203(7-15/16)
978(38-1/2)
794(31-5/16)
639(31-1/4)
13(1/2)
20.4(3/4)
6.28
(1/4)
190(7-7/16)
161(6-5/16)
14(1/2)
WModel
ARNU073CEA2 ARNU093CEA2 ARNU123CEA2 ARNU153CEA2
HD
1067
(42)
635
(25)
203
(7-15/16)
ARNU073CEU2 ARNU093CEU2 ARNU123CEU2 ARNU153CEU2
978
(38-1/2)
639
(31-1/4)
190
(7-7/16)
[Unit : mm(inch)] [Unit : mm(inch)]
LG Electronics USA, HVAC Division 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 www.lgusa.com / www.lghvac.com
1
2
Name
1
Air discharge grill
2
Air suction grill
Number Descripition

LG MULTI V ARNU Series Specifications
