Operation Details
n Hot-Start Control
• The indoor fan does not rotate until the indoor unit Hex-Exchanger temperature reaches 22℃(71.6℉).

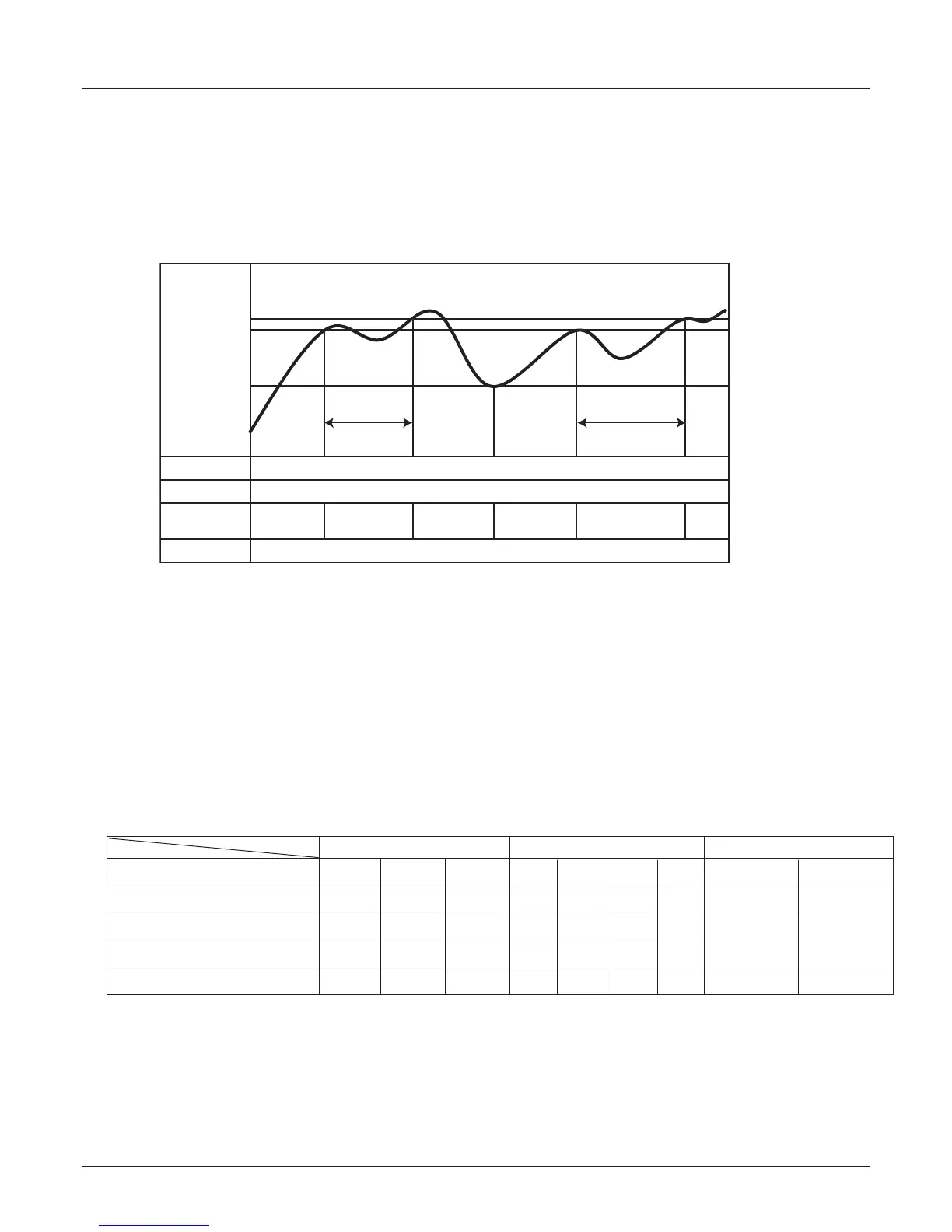

• The operation diagram is as following.
ON
ON
Off Off LowLow
1 min
Hotstart On
Hotstart Off
Indoor unit
Heat-Exchanger
temperature
Setting fan
speed
Setting fan
speed
Thermal
Outdoor fan
Indoor fan
4way Valve
ON
1 min
• Initial Hotstart On state
¿ Power Off ‡ On
¡ Operation Off ‡ On
¬ Cooling operation ‡ Heating operation
√ Defrost operation
Chassis
Hotstart On T
On
Hotstart Off T
Off
Low temperature T
LT
Setting Temperature T
ST
High Static Low Static Convertible
BH BG BR
19°C(66°F) 19°C(66°F) 19°C(66°F) 19°C(66°F) 19°C(66°F) 19°C(66°F) 19°C(66°F) 26°C(78°F) 26°C(78°F)
22°C(72°F) 22°C(72°F) 22°C(72°F) 22°C(72°F) 22°C(72°F) 22°C(72°F) 22°C(72°F) 27°C(80°F) 27°C(80°F)
25°C(76°F) 25°C(76°F) 25°C(76°F) 25°C(76°F) 25°C(76°F) 25°C(76°F) 25°C(76°F) 28°C(82°F) 28°C(82°F)
27°C(80°F) 27°C(80°F) 27°C(80°F) 27°C(80°F) 27°C(80°F) 27°C(80°F) 27°C(80°F) 30°C(86°F) 30°C(86°F)
B1 B2 CE CF VE VJ
