Operation Details
n Heater Operation
• The unit will operate according to the setting temperature and the indoor unit Heat-Exchanger temperature.

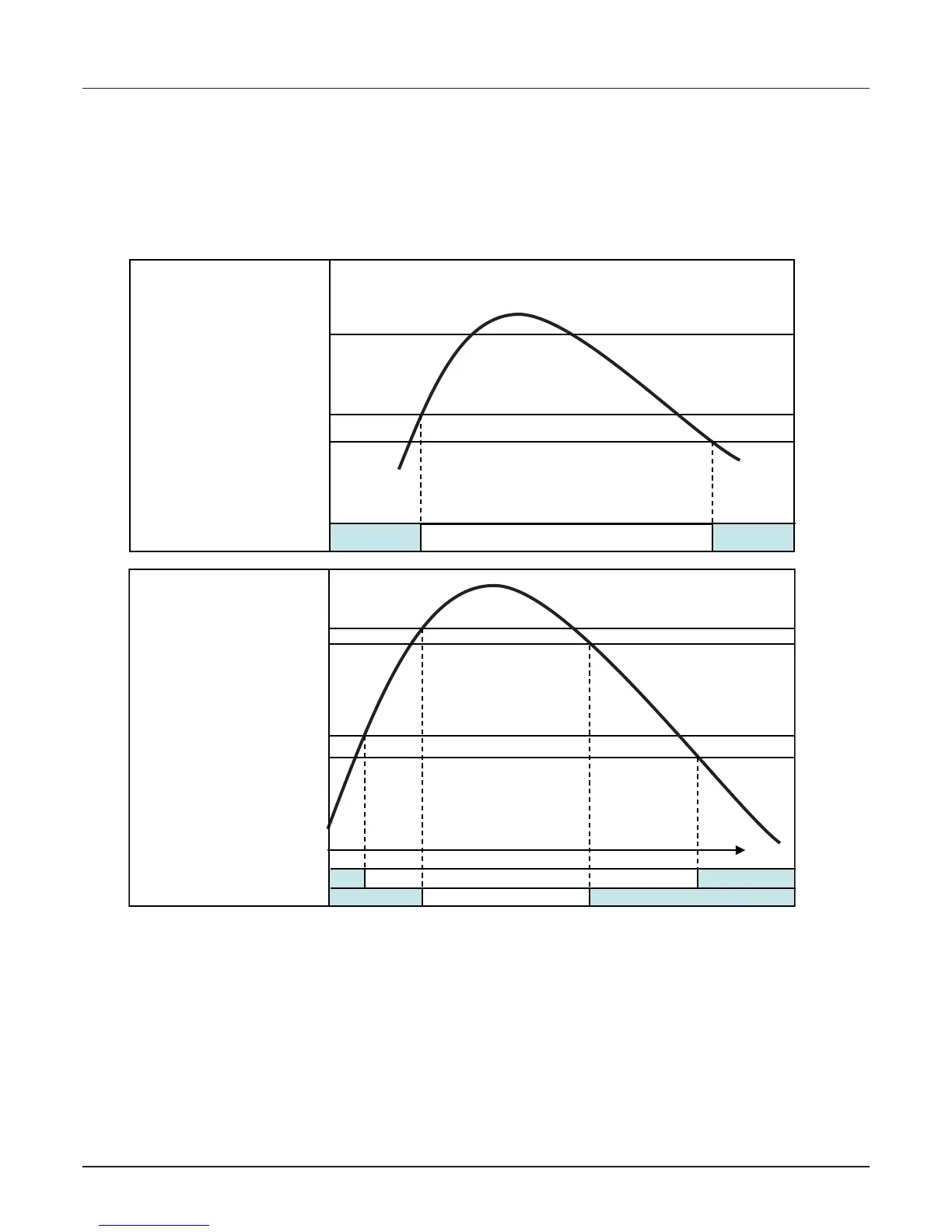

• Heater operation diagram is shown as following.
Heater 2
Heater 1
45℃ (113℉)
30℃ (86℉)
42℃ (108℉)
28℃ (82℉)
Indoor unit
Heat-Exchanger
temperature
Setting temperature (A)
A-1℃ (34℉)
A-2℃ (36℉)
ON
ON
OFF
OFF
ON
ON
Heater ON
Heater ON
Heater OFF
