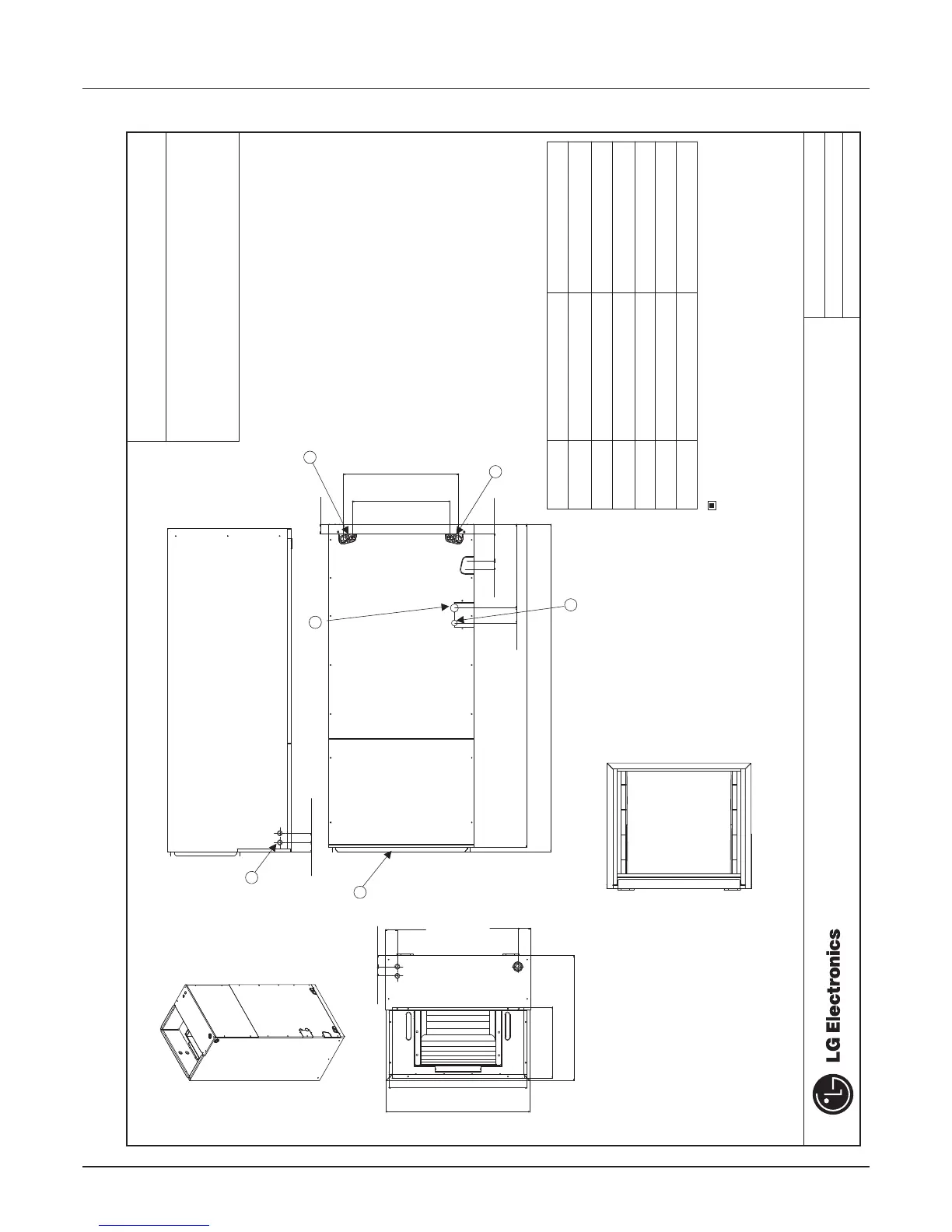

Dimensions
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea www.lgeaircon.com
CHASSIS CODE: NK
Vertical Air Handling Unit
ARNU423NKA2 ARNU483NKA2 ARNU543NKA2
Note
1. Unit should be installed in compliance with the installation manual in the product box. 2. Unit shall be grounded in accordance with the local regulations or applicable national codes.
LG Electronics USA, HVAC Division 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 www.lgusa.com / www.lghvac.com
635
(25)
308
(12-1/8)
40
(1-9/16)
41
(1-5/8)
40
(1-9/16)
40
(1-9/16)
118
(4-5/8)
362
(14-1/4)
39
(1-9/16)
65
(2-9/16)
1400
(55-1/8)
1418
(55-13/16)
508
(20)
430
(16-15/16)
49
(1-15/16)
540
(21-1/4)
55
(2-3/16)
52
(2-1/16)
610
(24)
Name
1
Liquid pipe connection
Unit size(28k,36k,42k):ø9.52(3/8)
2
Gas pipe connection
Unit size(28k,36k,42k):ø15.88(5/8)
3
Drain pipe connection
4
Power supply connection
5
Air discharge
6
Air suction
Number Descripition
[Unit : mm(inch)]
4
5
2
3
6
1
