Dimensions
- 15 -
Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea
CHASSIS CODE: TT

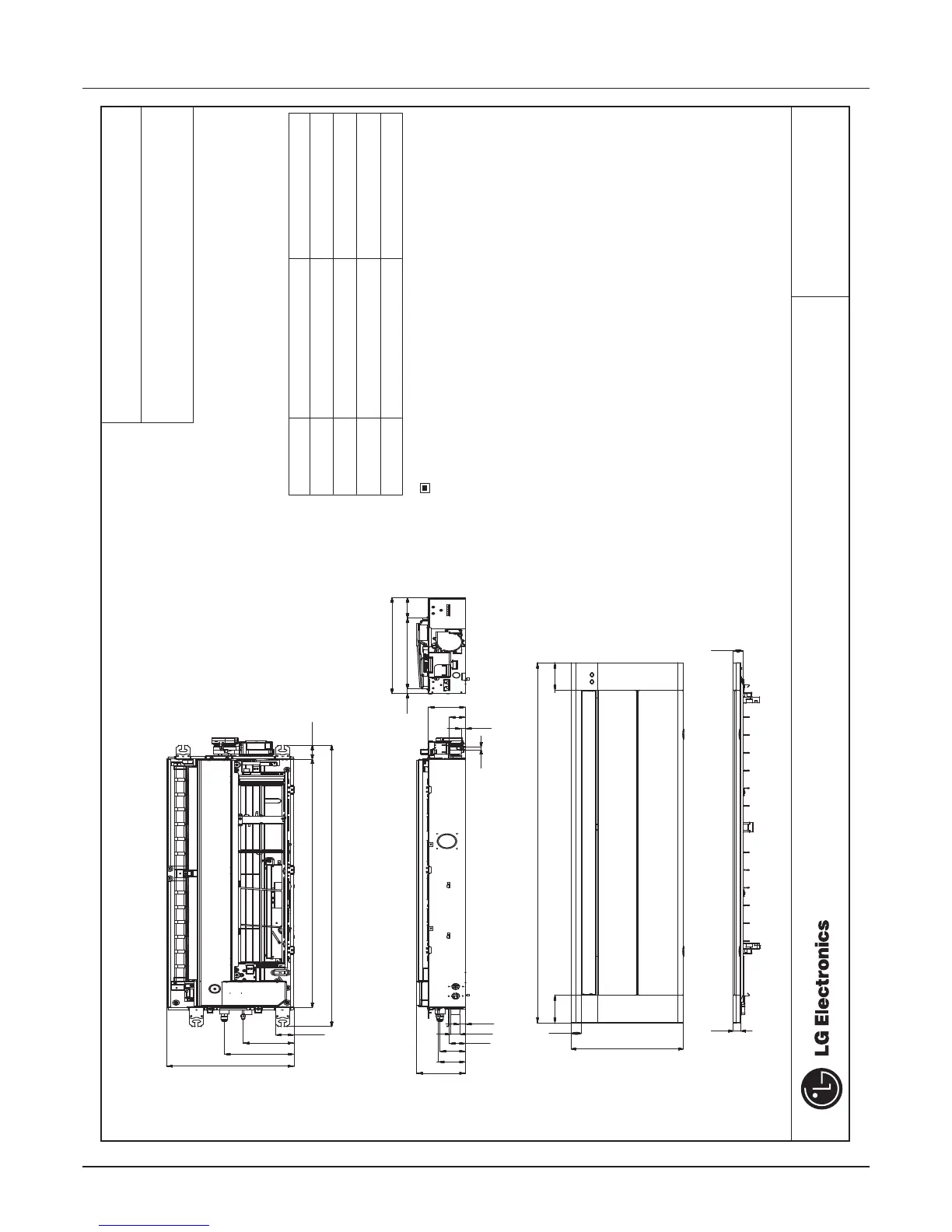

Ceiling Cassette 1-way
ARNU18GTT*2 ARNU24GTT*2
Name
1 Liquid pipe connection
Unit size(18k):ø6.35, (24k):ø9.52
2 Gas pipe connection
Unit size(18k):ø12.7, (24k):ø15.88
3 Air suction grill 4 Air discharge grill
Number Descripition
Note
1. Unit should be installed in compliance with the installation manual in the product box. 2. Unit shall be grounded in accordance with the local regulations or applicable national codes.
(unit : mm)
(Panel Name: PT-UTD)
109.5
44
132
15.2
Ø14
57
34
500
46.5
20.6
65.3
180.6
247.5
453.8
31.7
57.4
173.8
97.1
91
109.5
1420
453.8
335
96.5
22.3
65.11176.4
1332
