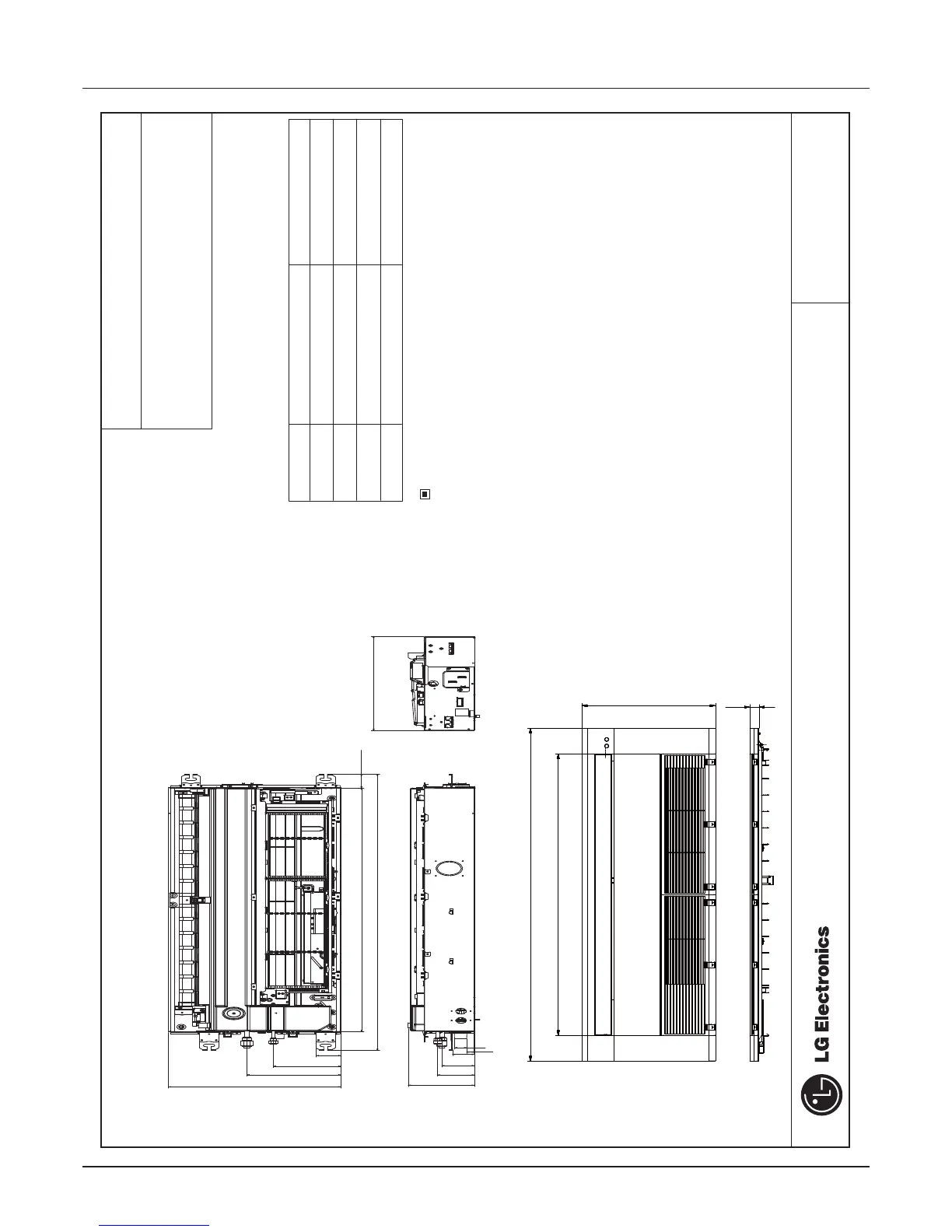

Dimensions
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea
CHASSIS CODE: TT
Ceiling Cassette 1-way
ARNU18GTT*2 ARNU24GTT*2
Name
1 Liquid pipe connection
Unit size(18k):ø6.35, (24k):ø9.52
2 Gas pipe connection
Unit size(18k):ø12.7, (24k):ø15.88
3 Air suction grill 4 Air discharge grill
Number Descripition
Note
1. Unit should be installed in compliance with the installation manual in the product box. 2. Unit shall be grounded in accordance with the local regulations or applicable national codes.
(unit : mm)
20.6
65.3
180.6
247.5
453.8
57.4
91
96.1
173.8
31.7
453.8
1,420
500
34
1,201(Air Outlet Hole)
65.1
1332
1176.4
(Panel Name: PT-UTC)
