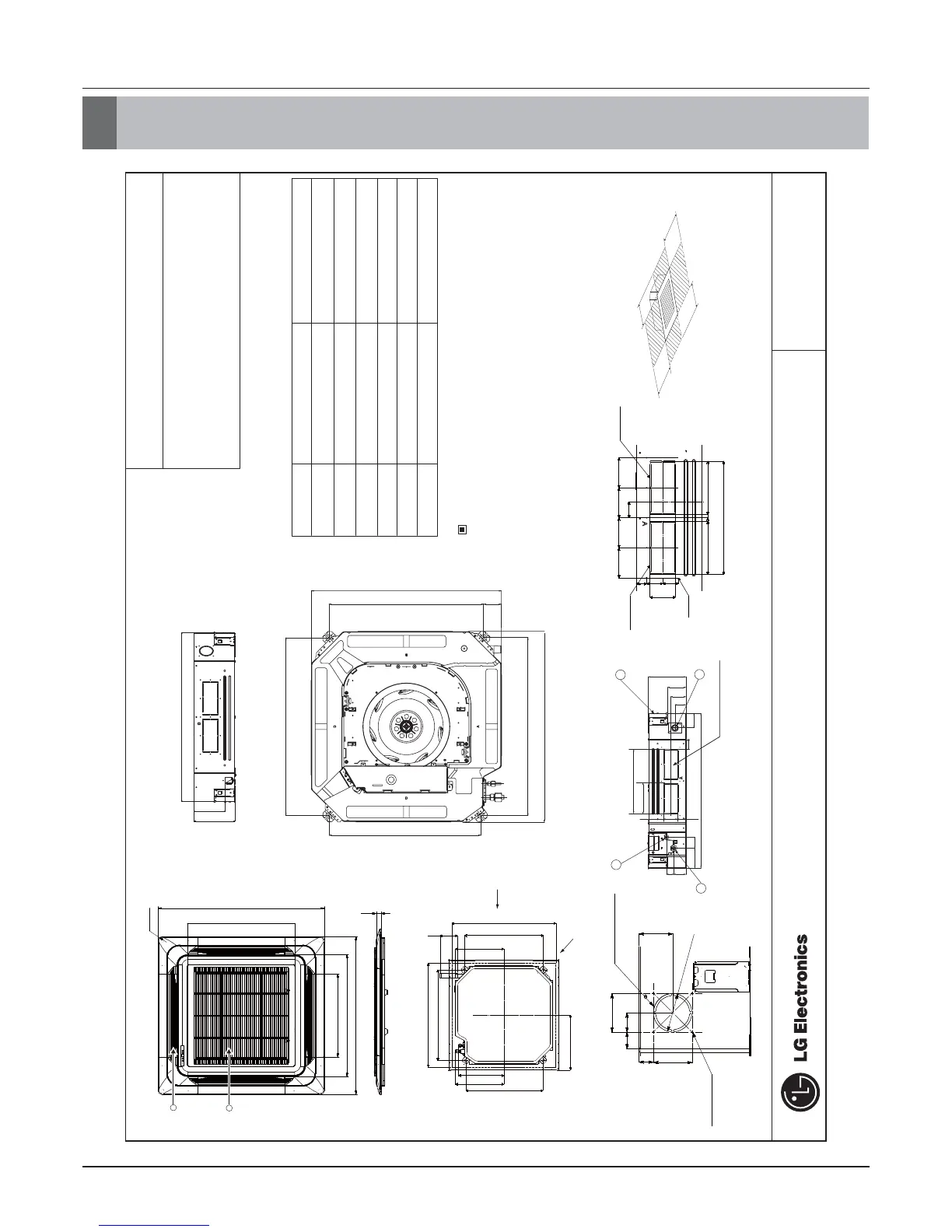

3. Dimensions
Dimensions
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea
CHASSIS CODE: TP
Ceiling Cassette 4-way
ARNU21GTP*2 ARNU24GTP*2 ARNU28GTP*2
Note
1. Unit should be installed in compliance with the installation manual in the product box. 2. Unit shall be grounded in accordance with the local regulations or applicable national codes.
684
840
671
787
787 840
Name
1
Liquid pipe connection Unit size(24k, 28k):ø9.52
2
Gas pipe connection Unit size(24k, 28k):ø15.88
3
Drain pipe connection
4
Power supply connection
5
Air discharge grill
6
Air suction grill
Number Descripition
(unit : mm)
204
804
154
99
82
60
840
60
350
165
80
53.5
108
2
04
40
65
4 3
1
2
Branch Duct Connection
79
41.5
950
25
614(Inlet Grille)
500(Air outlet Hole)
4-R20
737 950
5
6
475
420
420
393
870-920(CEILING OPENING SPACE)
786(SUSPENSION POSITION)
300
OR LESS
682(SUSPENSION POSITION)
669(SUSPENSION POSITION)
870-920(CEILING OPENING SPACE)
Ceiling opening
B
A
OUTDOOR AIR INTAKE (DIRECT CONNECTION)
BRANCH DUCT CONNECTION
BRANCH DUCT CONNECTION
13-
ø
3, 3 Hole
13-
ø
3, 3 Hole
ø70
71
350
165
79
50 50 32
92 92 92 92
50
165
10
31
71
26
62
35
B ARROW VIEW
A ARROW VIEW
VP25(Φ32)
500mm or more*
500mm or more*
• REQUIRED SPACE
500mm or more*
500mm or more*
