LG MULTI V ARNU Series User Manual

- 92 -
Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

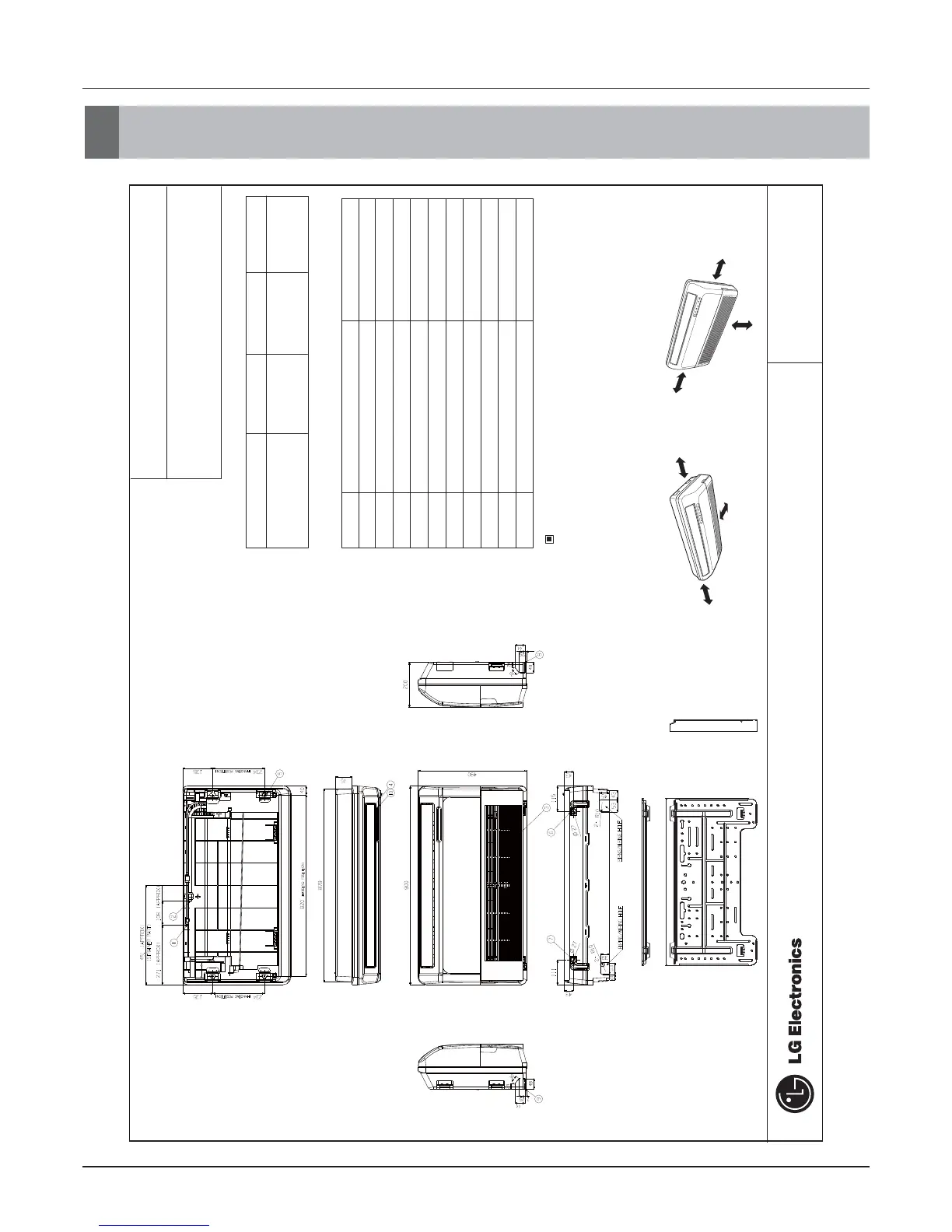

3. Dimensions
Dimensions
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea
CHASSIS CODE: VE
Ceiling & Floor
ARNU09GVEA2 ARNU12GVEA2
Note
1. Unit should be installed in compliance with the installation manual in the product box. 2. Unit shall be grounded in accordance with the local regulations or applicable national codes.
WModel
ARNU09GVEA2 ARNU12GVEA2
HD
900 490 200
(unit : mm)
587
273
※ Required space(unit:mm)
Name
1 2 3 4 5 6 7 8 9
10
Liquid pipe
Gas pipe
Suction gille
Discharge grille
Suspension bracket
Right side drain hose hole
Left side drain hose hole
Wiring connection
Piping connection
Signal receiver & Operation indicator
ø6.35 Flare connection ø12.7 Flare connection
Number Descripition
(unit : mm)
Slit hole Slit hole
More than 200mm
More than 50mm
More than 200mm
More than 200mm
More than 50mm
More than 200mm
