LG MULTI V ARNU Series User Manual

- 93 -
Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

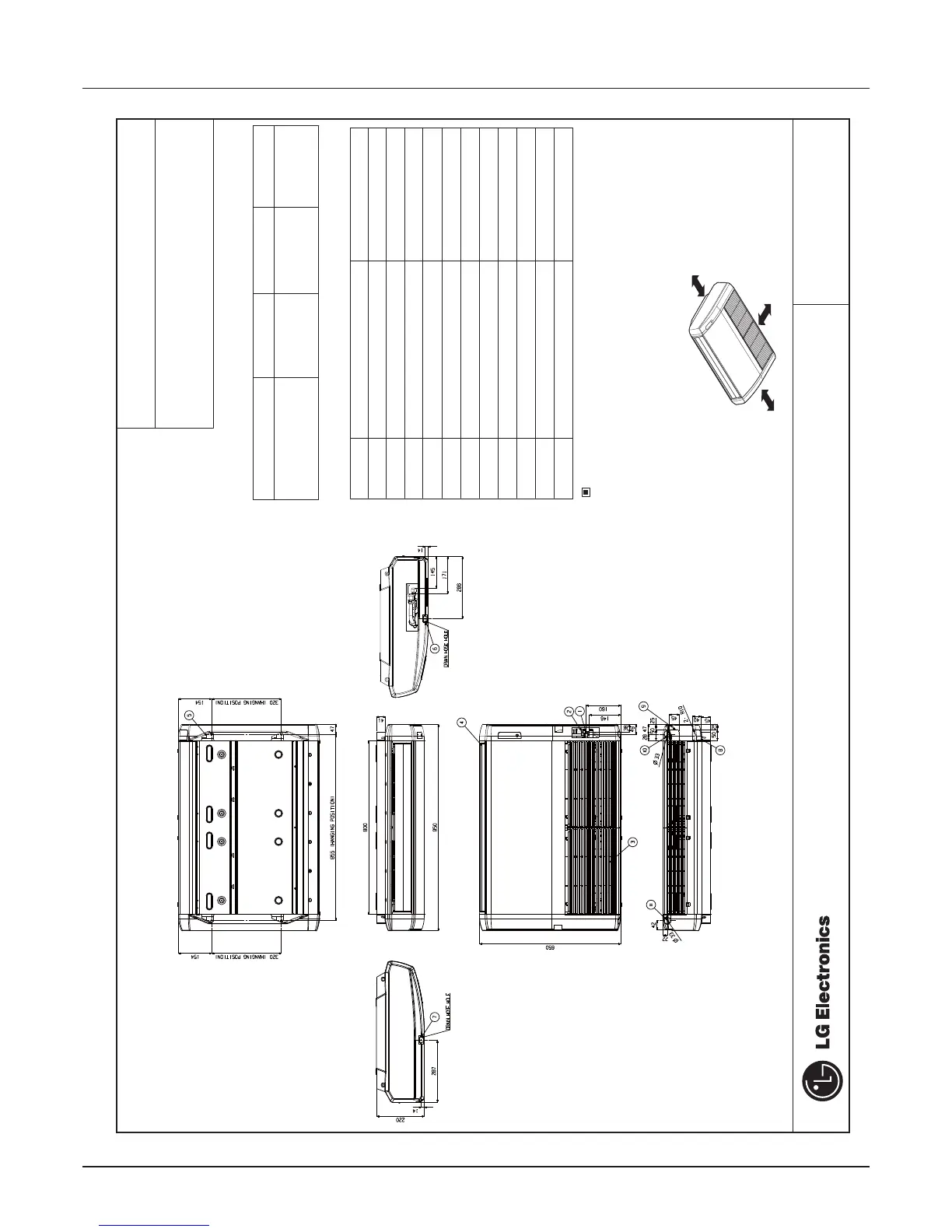

Dimensions
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea
CHASSIS CODE: VJ
Ceiling Suspended
ARNU18GVJA2 ARNU24GVJA2
Note
1. Unit should be installed in compliance with the installation manual in the product box. 2. Unit shall be grounded in accordance with the local regulations or applicable national codes.
WModel
ARNU18GVJA2 ARNU24GVJA2
HD
950 650 220
(unit : mm)
※ Required space(unit:mm)
Name
1 2 3 4 5 6 7 8 9
10
11
Liquid pipe
Gas pipe
Suction gille
Discharge grille
Suspension bracket
Right side drain hose hole
Left side drain hose hole
Wiring connection
Piping connection
Right side drain pipe connection
Left side drain pipe connection
ø6.35 Flare connection ø12.7 Flare connection
Number Descripition
(unit : mm)
Slit hole Slit hole Slit hole Slit hole
More than 700mm
More than 300mm
More than 700Um
