Pipe connections between indoor and outdoor unit
High Pressure Gas pipe Liquid pipe Low Pressure Gas pipes
Remove only liquid/gas pipe Knock Out
• Removal of Base pan
High Pressure Gas pipe
• Removal of Base pan
Liquid pipe Low Pressure Gas pipes

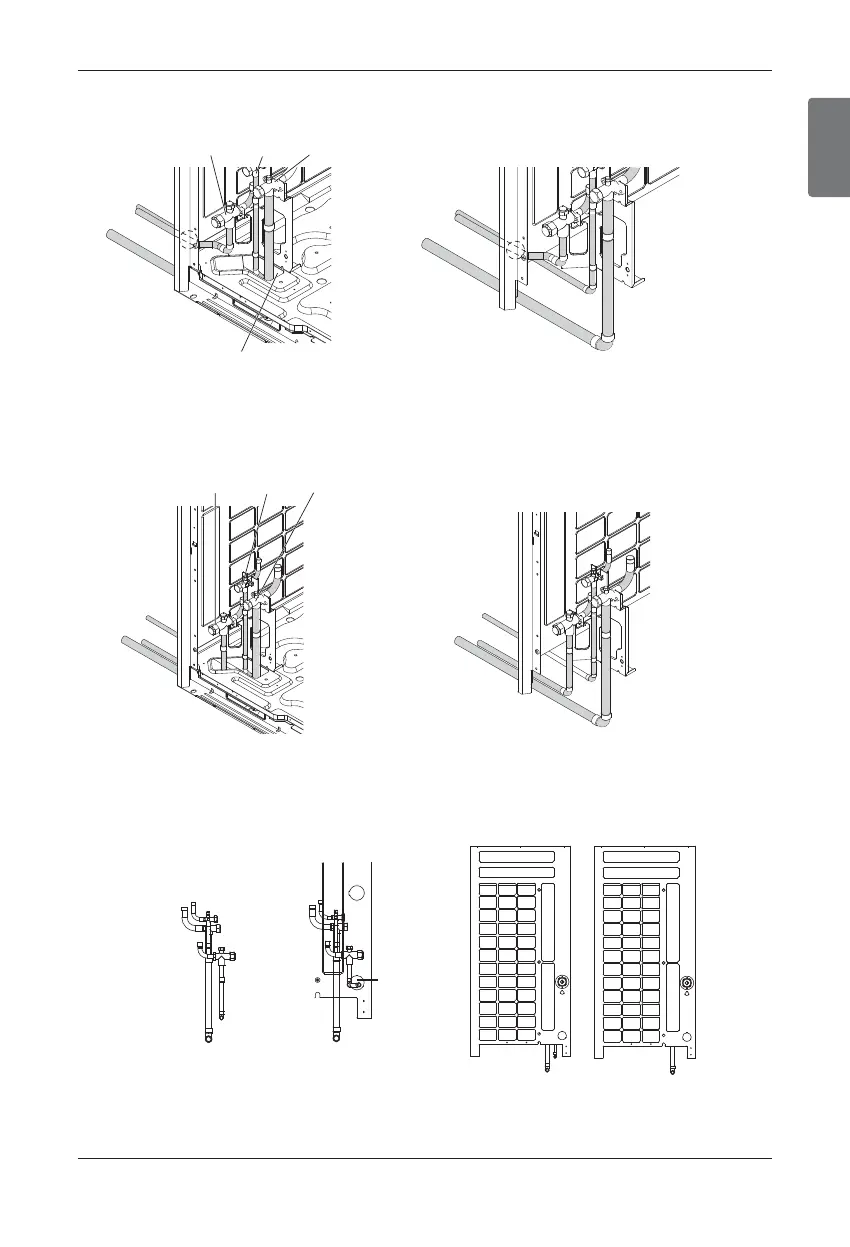

n Method of drawing out pipes on the bottom side
① Drawing out common pipe through side panel
n Figure of Sides when drawing out through bottom pipe
② Drawing out common pipe through bottom pipe
i) Single/Series outdoor units
(Draw out High Pressure
Gas pipe through bottom)
ii) Single/Series outdoor units
(Draw out High Pressure
Gas pipe through side panel)
Remove Pipe
Knock Out Hole
