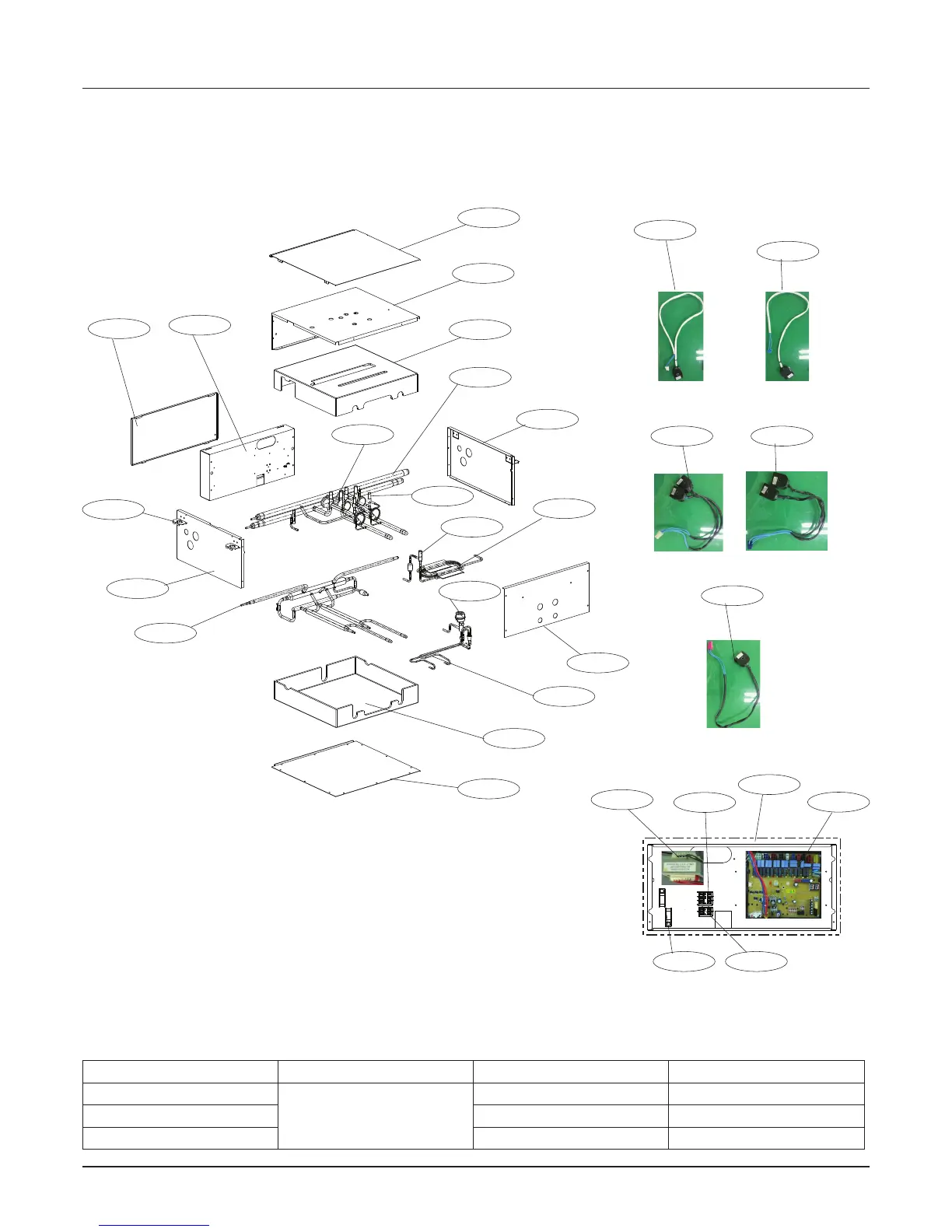

Exploded View
- 11 -
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
7.1.3 PRHR021/PRHR021A
135500B
249951
135500A
W4810A
137213B
55211FB
55 21 1FA
W4810B
55 21 1G
W54100A
13 04 01
137213A
352118
552204A
552204B
149900
552204B
552200
561410B
561410A
561410F561410E
56 14 10I
24 99 51
W6640A
W6640BW4004
26 17 04
268711
W54100B
Part L/No. Sensor Location Remark
Thermistor 1
263230
SC out heatproof PVC : blue
Thermistor 2 SC in heatproof PVC : white
Thermistor 3 Liquid heatproof PVC : black
